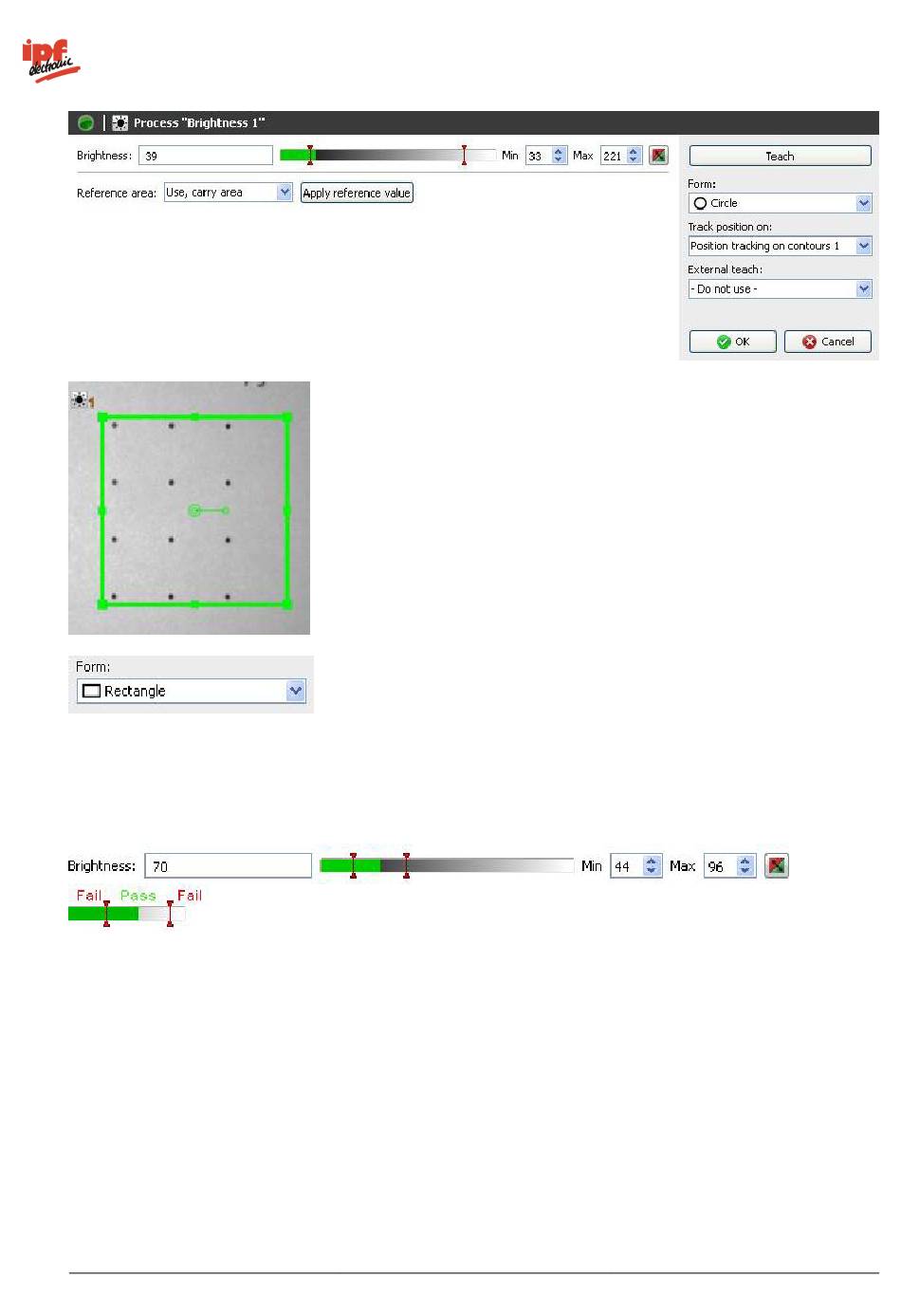

Select the shape of the field of view. A circle, a rectangle and a freely definable polygon, a circular
ring and a circular ring sector are available.

Adjust the field of view by holding the left mouse button depressed. You can rotate the rectangle by
correspondingly dragging the lever in the centre with your mouse.

The current result for brightness is shown as a mean grey scale value. The switching points
designated Min and Max are adjusted on the right hand side. A graphic display is located in the
middle, in which the positions of the switching points are displayed and where they can be changed.

The right button is used to invert the result of the feature check.
