12.4.4 Matrix code (colour)

Coloured matrix codes (ECC 200, QR, PDF417) with coloured backgrounds can be read using this feature
check. The field of view is first converted into a black and white image. In addition, the quality of the barcode
can be determined according to ISO/IEC 15415 or AIM DPM-1-2006.
This feature check supports external Teach. In this process, the parameters for identification are adjusted
and the expected value is accepted if an expected value has already been set.


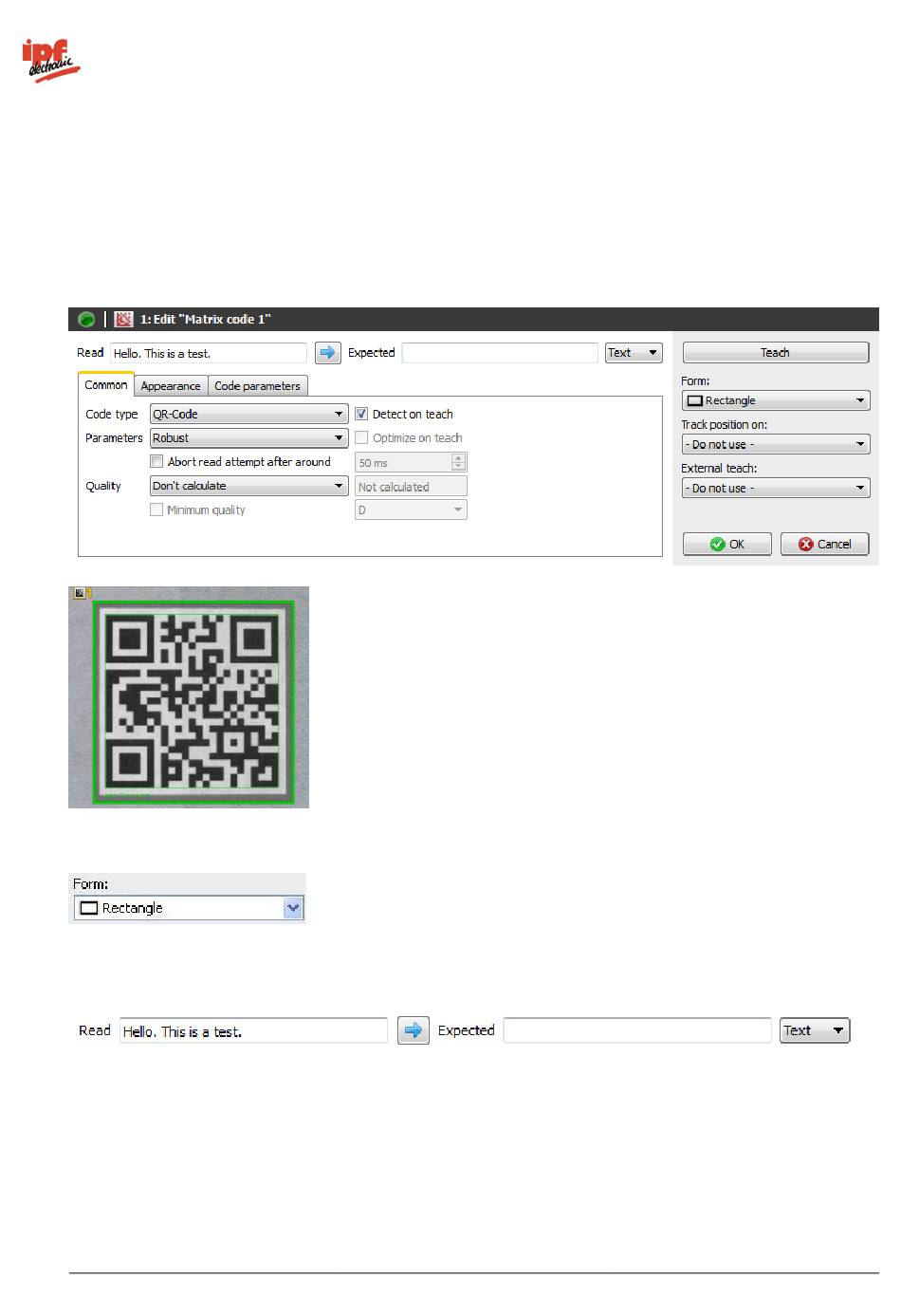

Choose the search area.

Read: The read result is displayed here.

Arrow: Using the arrow, you can accept the current result as the new expected value.

Expected: In addition, you may specify an expected value.

Text/binary: Change the display between Text (ASCII) and Binary (hexadecimal).
