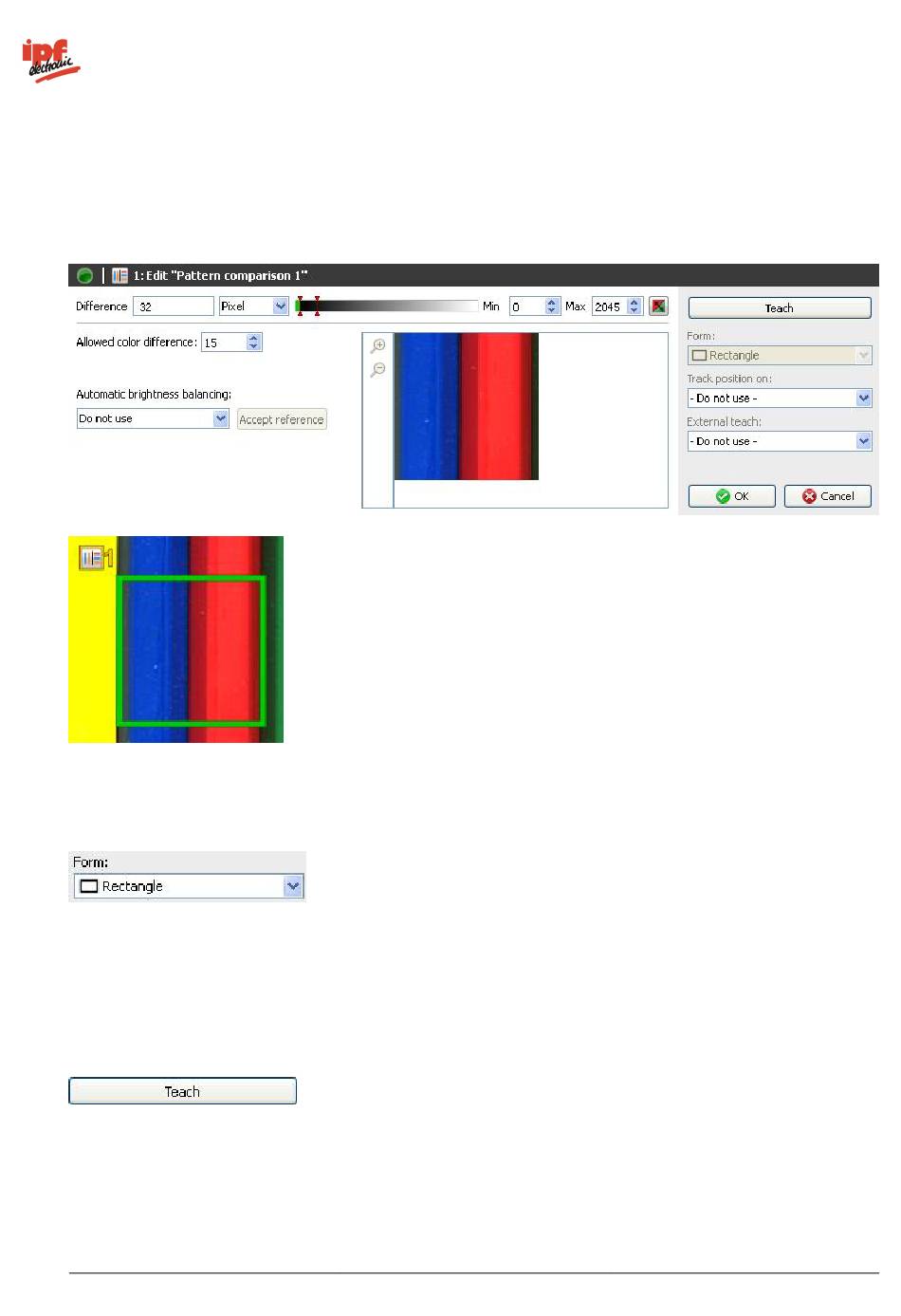

12.3.13 Pattern comparison (colour)

This feature check verifies the presence of a taught-in colour pattern.
It supports external teach. The current image area is adopted in the model, but the switching points remain
unchanged.
Proceed as follows for configuration:

Select the shape of the field of view. A circle, a rectangle and a freely definable polygon, a circular
ring and a circular ring sector are available.

Adjust the field of view by holding the left mouse button depressed. You can rotate the rectangle by
correspondingly dragging the lever in the centre with your mouse.

Teach in a new pattern using Teach.
