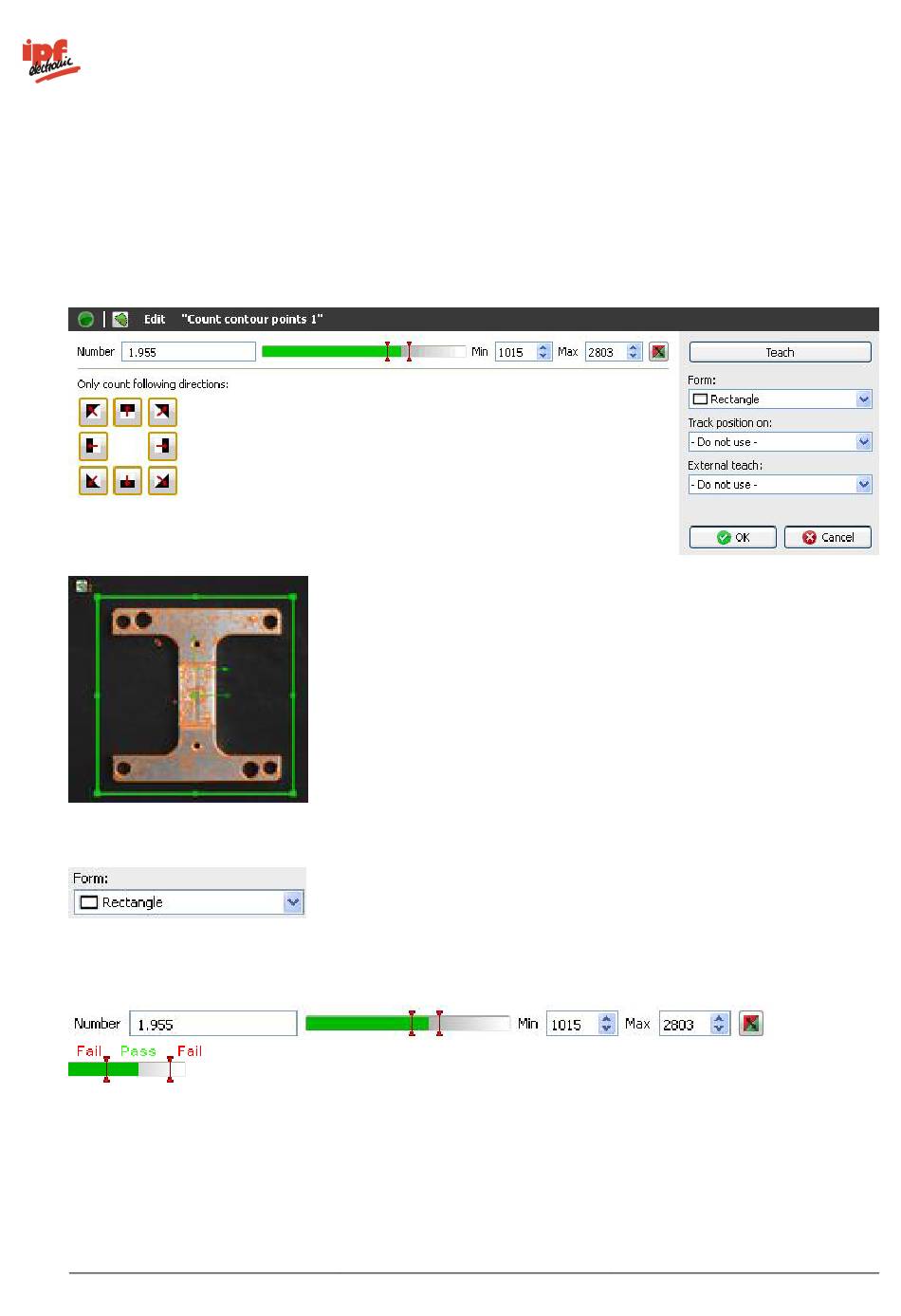

12.3 Feature comparison

12.3.1 Count contour points

This feature check examines the number of contour points within the field of view.
This feature check supports external Teach. The switching points are adjusted as a percentage to the current
measured value.
Choose the shape of the field of view in this menu.
The current result is displayed directly in the dialogue as the Number. The switching points
designated Min and Max are adjusted on the right hand side. A graphic display is located in the
middle, in which the positions of the switching points are displayed and where they can be changed.
The right button is used to invert the result of the feature check.
