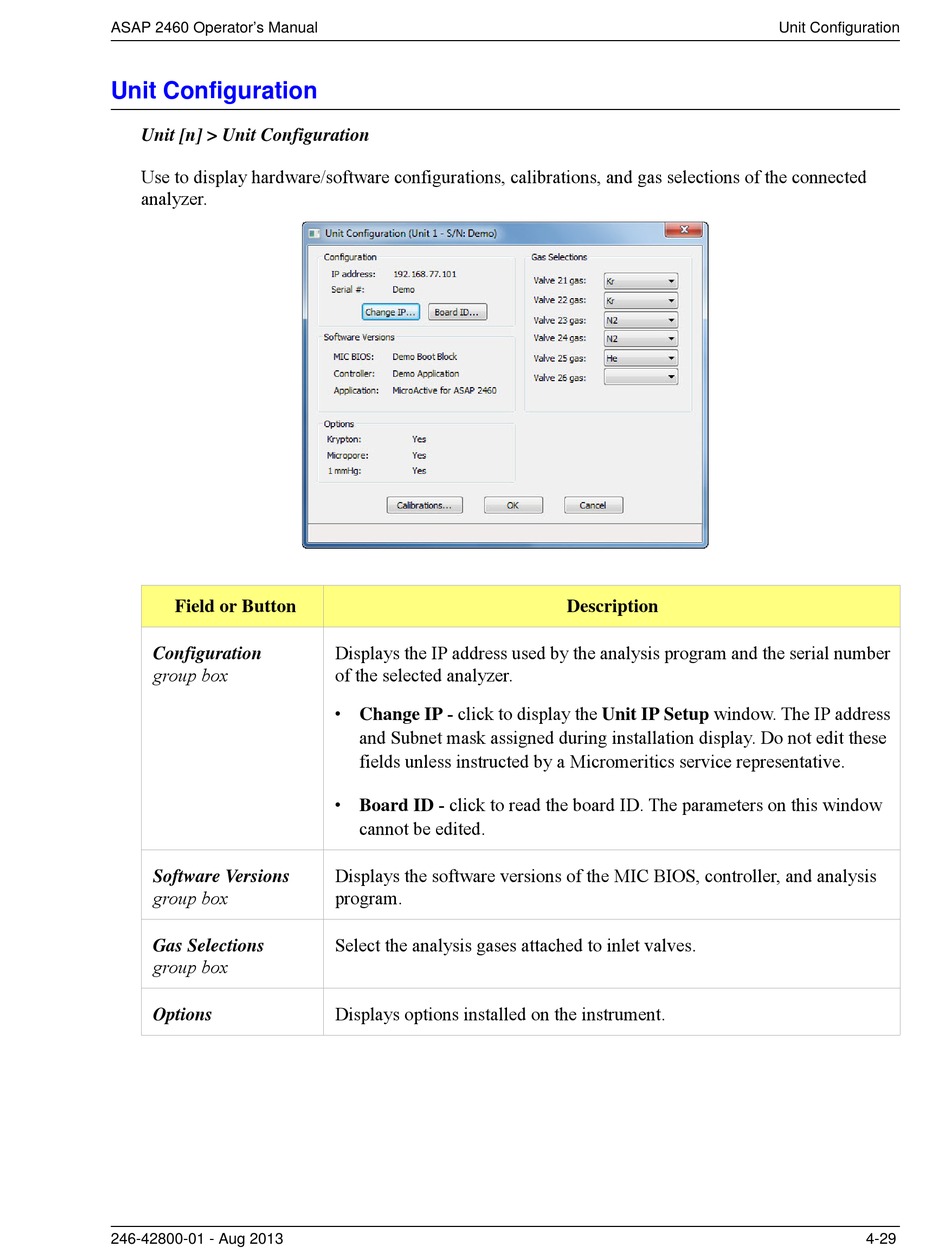

Unit Configuration

Unit [n] > Unit Configuration
Use to display hardware/software configurations, calibrations, and gas selections of the connected
analyzer.
Field or Button

Configuration
group box
Software Versions
group box

Gas Selections
group box
Options
246-42800-01 - Aug 2013
Displays the IP address used by the analysis program and the serial number
of the selected analyzer.
• Change IP - click to display the Unit IP Setup window. The IP address
and Subnet mask assigned during installation display. Do not edit these
fields unless instructed by a Micromeritics service representative.
• Board ID - click to read the board ID. The parameters on this window
cannot be edited.
Displays the software versions of the MIC BIOS, controller, and analysis
program.
Select the analysis gases attached to inlet valves.
Displays options installed on the instrument.
Description
Unit Configuration
4-29
