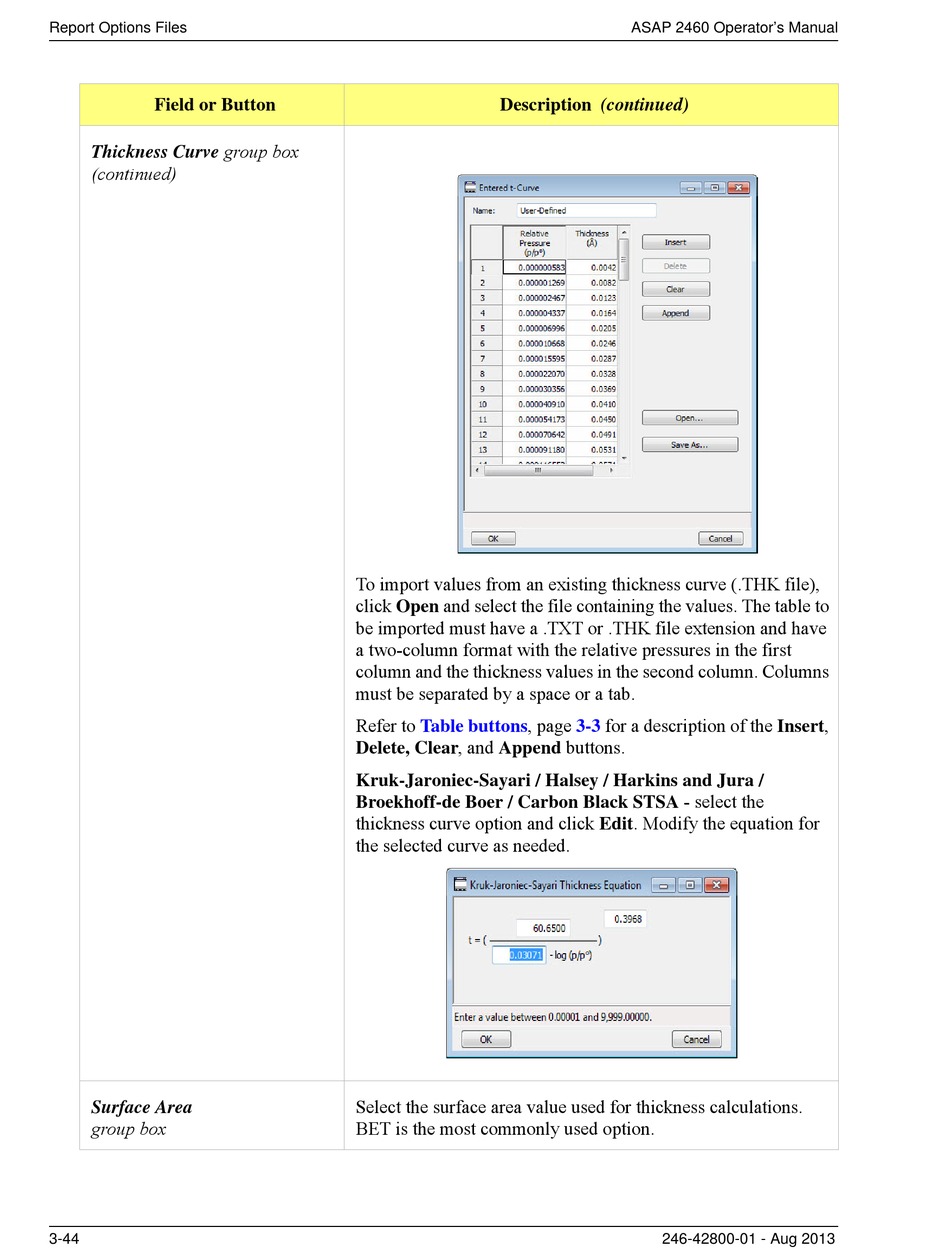

Micromeritics ASAP 2460 Operator's Manual page 138

Report Options Files
Field or Button
Thickness Curve group box
(continued)

Surface Area
group box
3-44
Description (continued)
To import values from an existing thickness curve (.THK file),
click Open and select the file containing the values. The table to
be imported must have a .TXT or .THK file extension and have
a two-column format with the relative pressures in the first
column and the thickness values in the second column. Columns
must be separated by a space or a tab.
Refer to buttons, page
Table
Delete, Clear, and Append buttons.
Kruk-Jaroniec-Sayari / Halsey / Harkins and Jura /
Broekhoff-de Boer / Carbon Black STSA - select the
thickness curve option and click Edit. Modify the equation for
the selected curve as needed.
Select the surface area value used for thickness calculations.
BET is the most commonly used option.
ASAP 2460 Operator's Manual
for a description of the Insert,
3-3
246-42800-01 - Aug 2013
