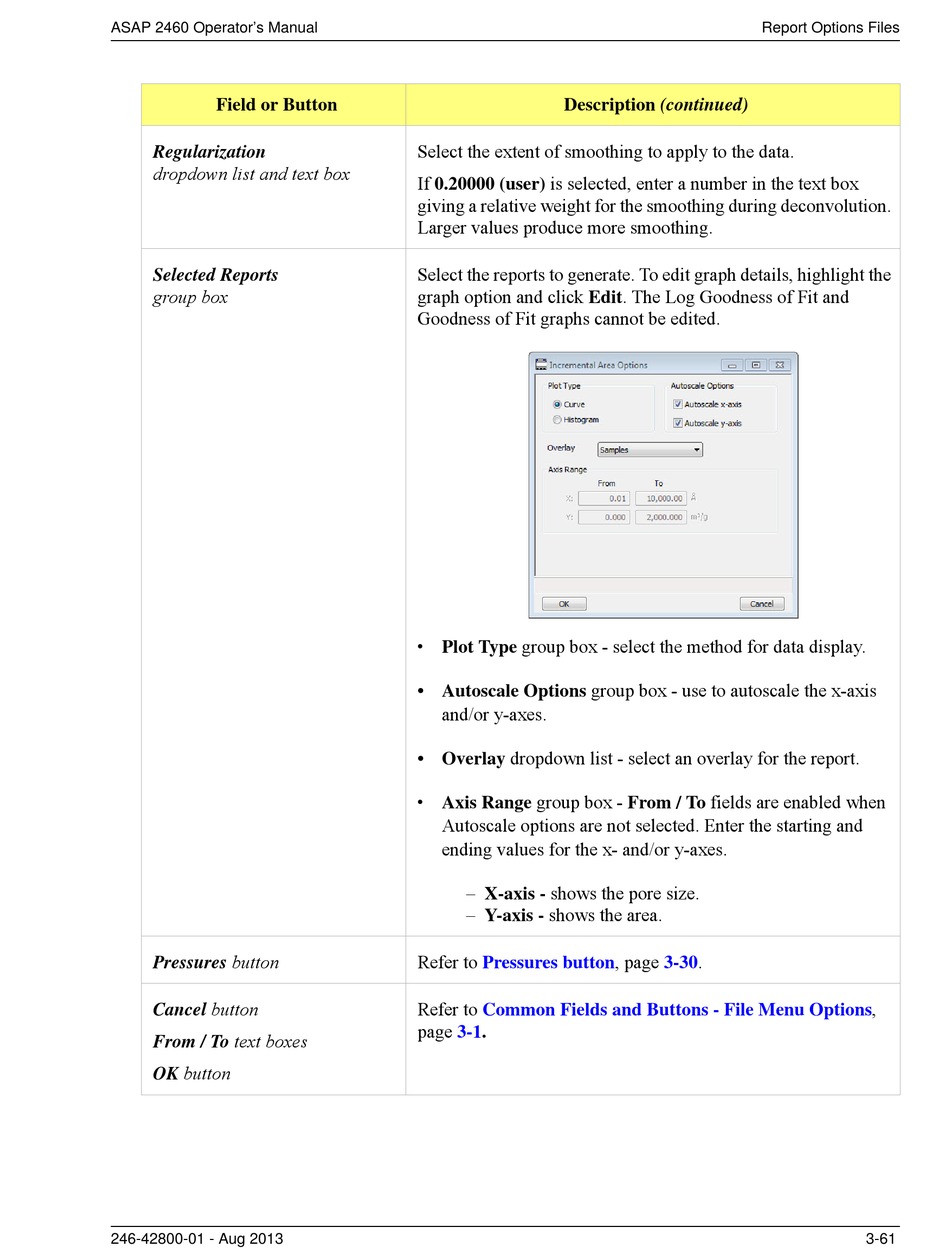

Micromeritics ASAP 2460 Operator's Manual page 155

ASAP 2460 Operator's Manual
Field or Button

Regularization
dropdown list and text box

Selected Reports
group box
Pressures button
Cancel button
From / To text boxes
OK button
246-42800-01 - Aug 2013
Description (continued)
Select the extent of smoothing to apply to the data.
If 0.20000 (user) is selected, enter a number in the text box
giving a relative weight for the smoothing during deconvolution.
Larger values produce more smoothing.
Select the reports to generate. To edit graph details, highlight the
graph option and click Edit. The Log Goodness of Fit and
Goodness of Fit graphs cannot be edited.
• Plot Type group box - select the method for data display.
• Autoscale Options group box - use to autoscale the x-axis
and/or y-axes.
• Overlay dropdown list - select an overlay for the report.
• Axis Range group box - From / To fields are enabled when
Autoscale options are not selected. Enter the starting and
ending values for the x- and/or y-axes.
– X-axis - shows the pore size.
– Y-axis - shows the area.
Refer to button, page 3-30.
Pressures
Refer to
Common Fields and Buttons - File Menu
page 3-1.
Report Options Files
Options,
3-61
