Preventive Maintenance
1. Loosen the wing nut of the clamp at the vacuum pump exhaust port. Swing the clamp away from
the exhaust port and remove it.
2. Discard the oil filter.
3. Retain the centering ring, clamp, and wing nut.
4. Remove the dust cover from the new filter.
5. Make sure the centering ring is on the exhaust port.
6. Place the new filter on the centering ring.
7. Open the clamp and place it around the flange of the exhaust port and the flange of the exhaust
filter. Swing the clamp fastening screw toward the exhaust port until it fits into the slot in the
other half of the clamp. Tighten the wing nut securely by hand.
7-20
ASAP 2460 Operator's Manual

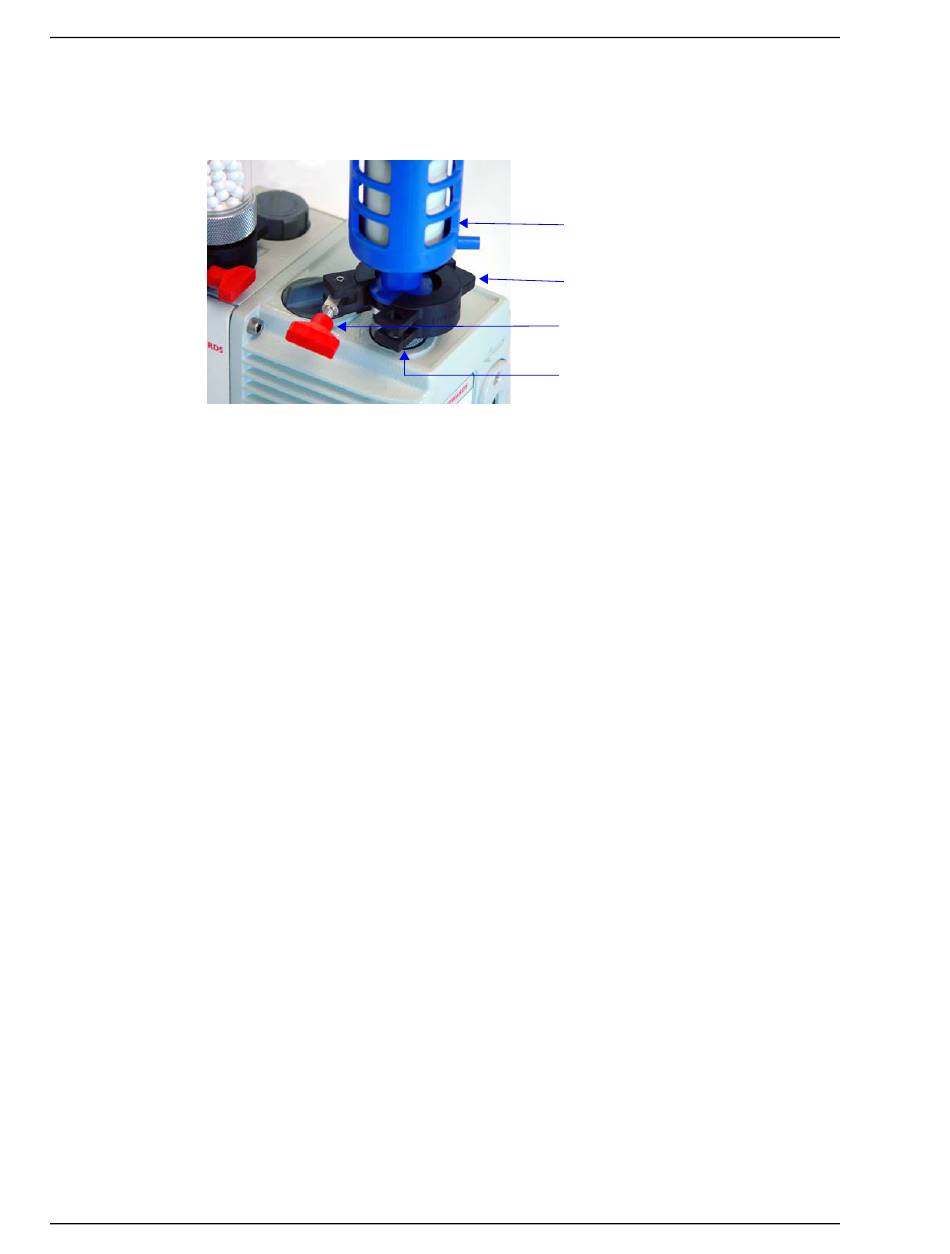

Filter
Clamp
Wing Nut
Exhaust Port
