Dubinin Report Options - Micromeritics ASAP 2460 Operator's Manual

ASAP 2460 Operator's Manual

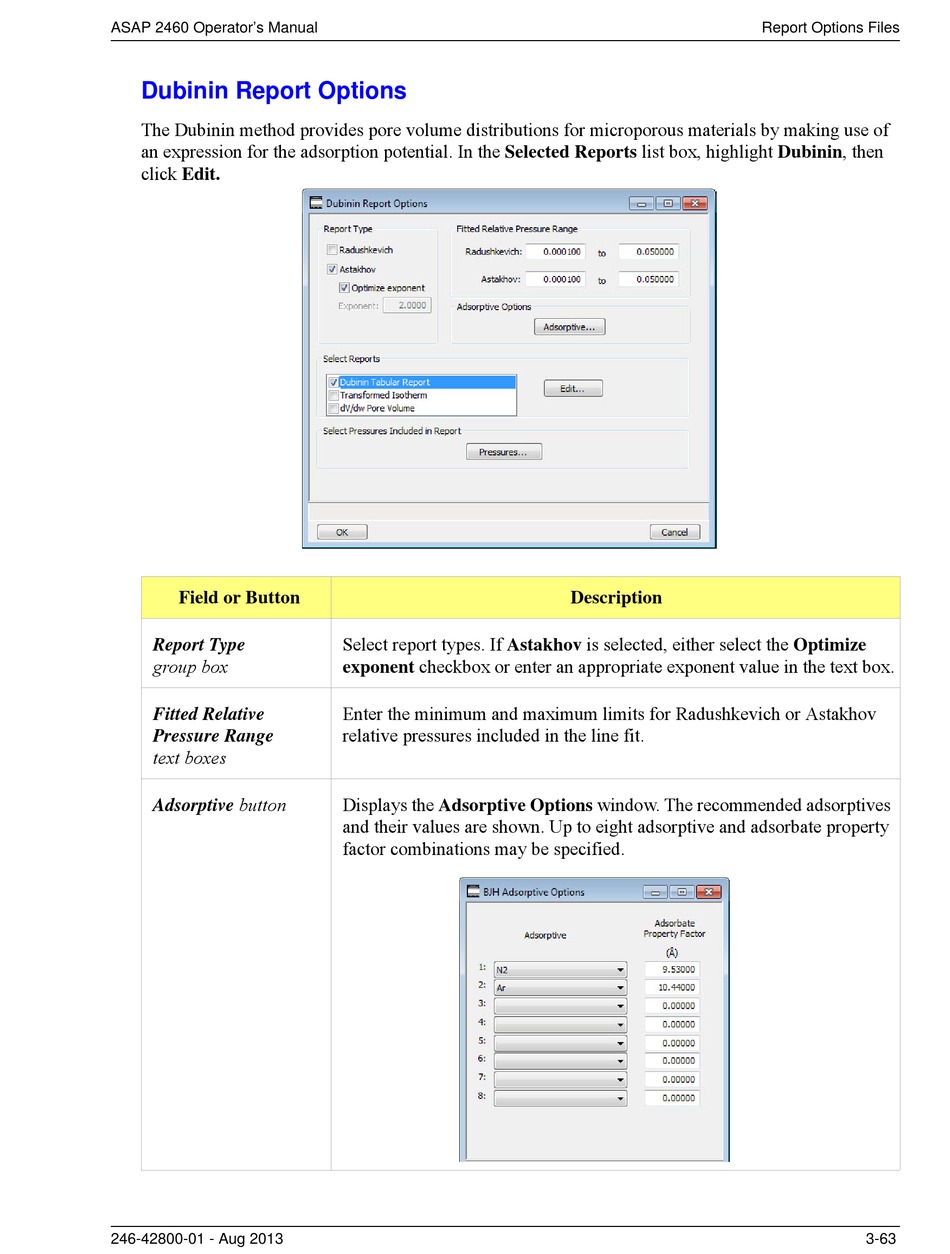

Dubinin Report Options

The Dubinin method provides pore volume distributions for microporous materials by making use of
an expression for the adsorption potential. In the Selected Reports list box, highlight Dubinin, then
click Edit.
Field or Button

Report Type
group box
Fitted Relative

Pressure Range
text boxes
Adsorptive button
246-42800-01 - Aug 2013
Select report types. If Astakhov is selected, either select the Optimize
exponent checkbox or enter an appropriate exponent value in the text box.
Enter the minimum and maximum limits for Radushkevich or Astakhov
relative pressures included in the line fit.
Displays the Adsorptive Options window. The recommended adsorptives
and their values are shown. Up to eight adsorptive and adsorbate property
factor combinations may be specified.
Description
Report Options Files
3-63
