14.7.2 Configuring the Communication
If the Ethernet point in the MultiSmart is available for interfacing and only one ADAM/ACROMAG unit is
required to be connected then the connection can be established by using a single shielded RJ45 cross over
cable.
If more than one ADAM/ACROMAG units are to be interfaced and/or if MultiSmart is connected to an
Ethernet network, then an Ethernet switch is required for establishing the connection.
shielded RJ45 straight through cables are required to connect the MultiSmart and ADAM/ACROMAG units to

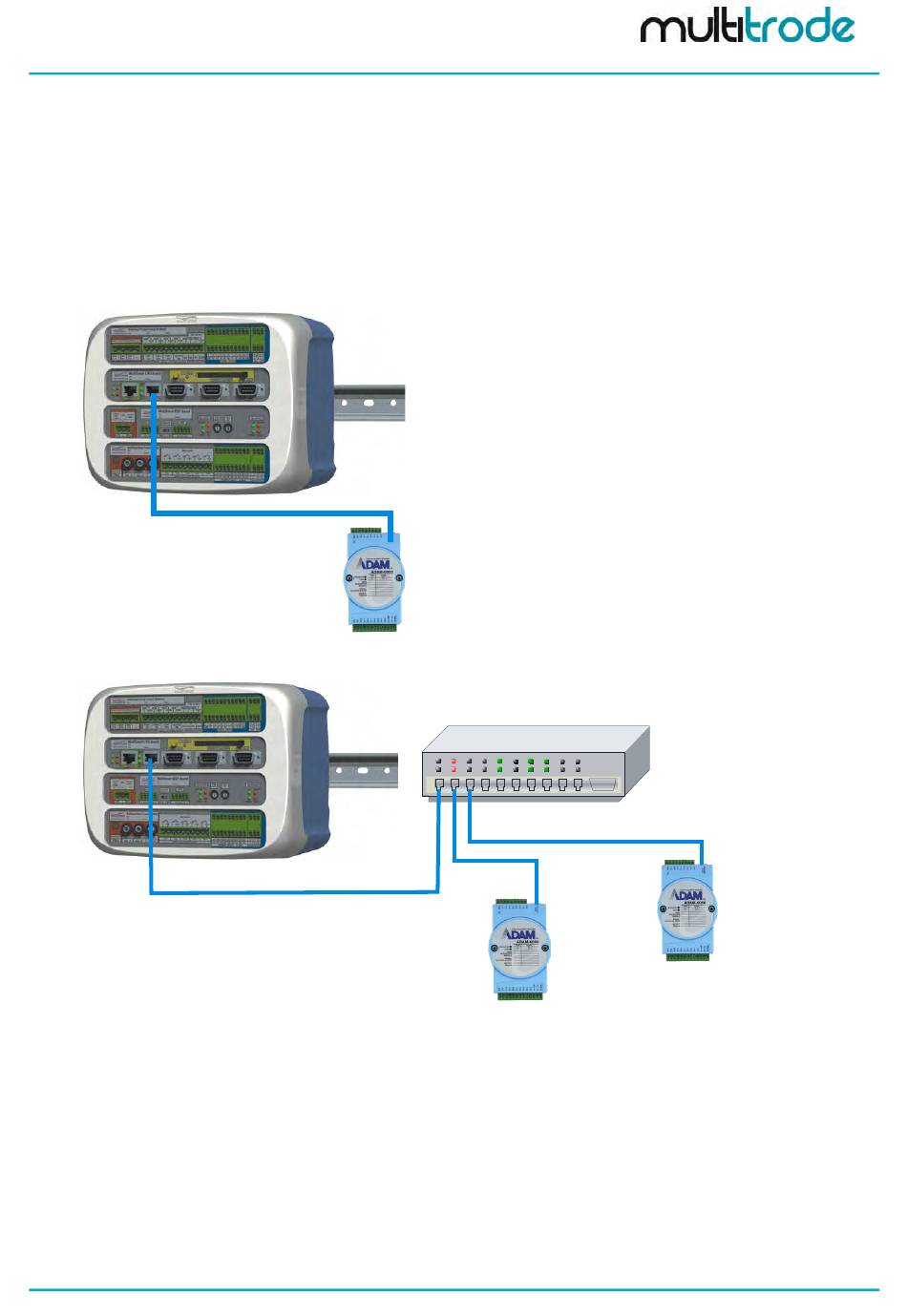

the switch. The two different methods of interfacing the devices are shown in the figures below.
Shielded RJ 45 cross over cable
MultiSmart
Shielded RJ 45 Straight through cable
Figure 104 - MultiSmart + Ethernet Switch = 2 x Adam Units
14.7.3 ADAM Ethernet Units
ADAM Ethernet units currently supported include:
ADAM-6017
•
ADAM-6050
•
ADAM-6051
•
The ADAM units, if purchased from MultiTrode are preconfigured to interface with the MultiSmart.
MultiSmart_IO_Manual_A4_v2-22_R15.doc
MultiSmart
Ethernet Switch
Shielded RJ 45 Straight through cable
In this method
