MultiSmart Installation & Operation Manual

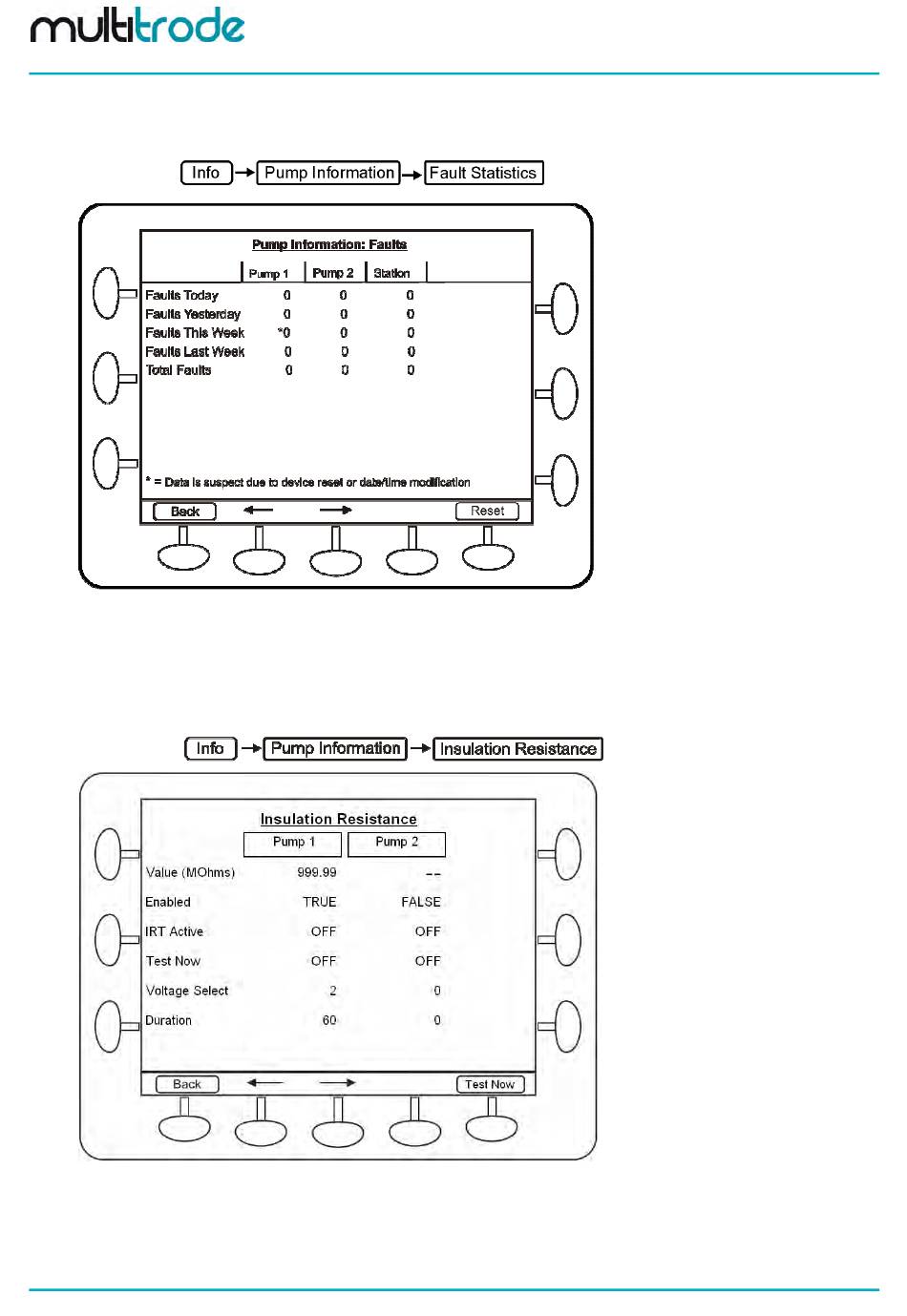

(c) Fault Statistics
Navigated to:
Figure 16 – Fault Statistics
Displays the total faults that occurred, today, yesterday, this week and last week for each pump and the
station.
(d) Insulation Resistancezz
Navigated to:
Figure 17 – Insulation Resistance
The insulation resistance test can be triggered from this screen. The result of the test and the related values
are displayed in this screen. The test can be performed only when the pump is not running. (The Insulation
Resistance test can also be accessed from the I/O information screen).
Page 24 of 201
MultiSmart_IO_Manual_A4_v2-22_R15.doc
