MultiSmart Installation & Operation Manual
7.5.4
CAN Bus I/O Expansion
MultiSmart I/O expansion units are connected to the main MultiSmart unit using the CAN Bus network. The
CAN Bus can not be used for other external devices.
Third party external I/O modules are connected through the Ethernet port (See Section 14.7). With custom
engineering, any I/O module that supports DNP3 or Modbus communications can be interfaced to the
MultiSmart.

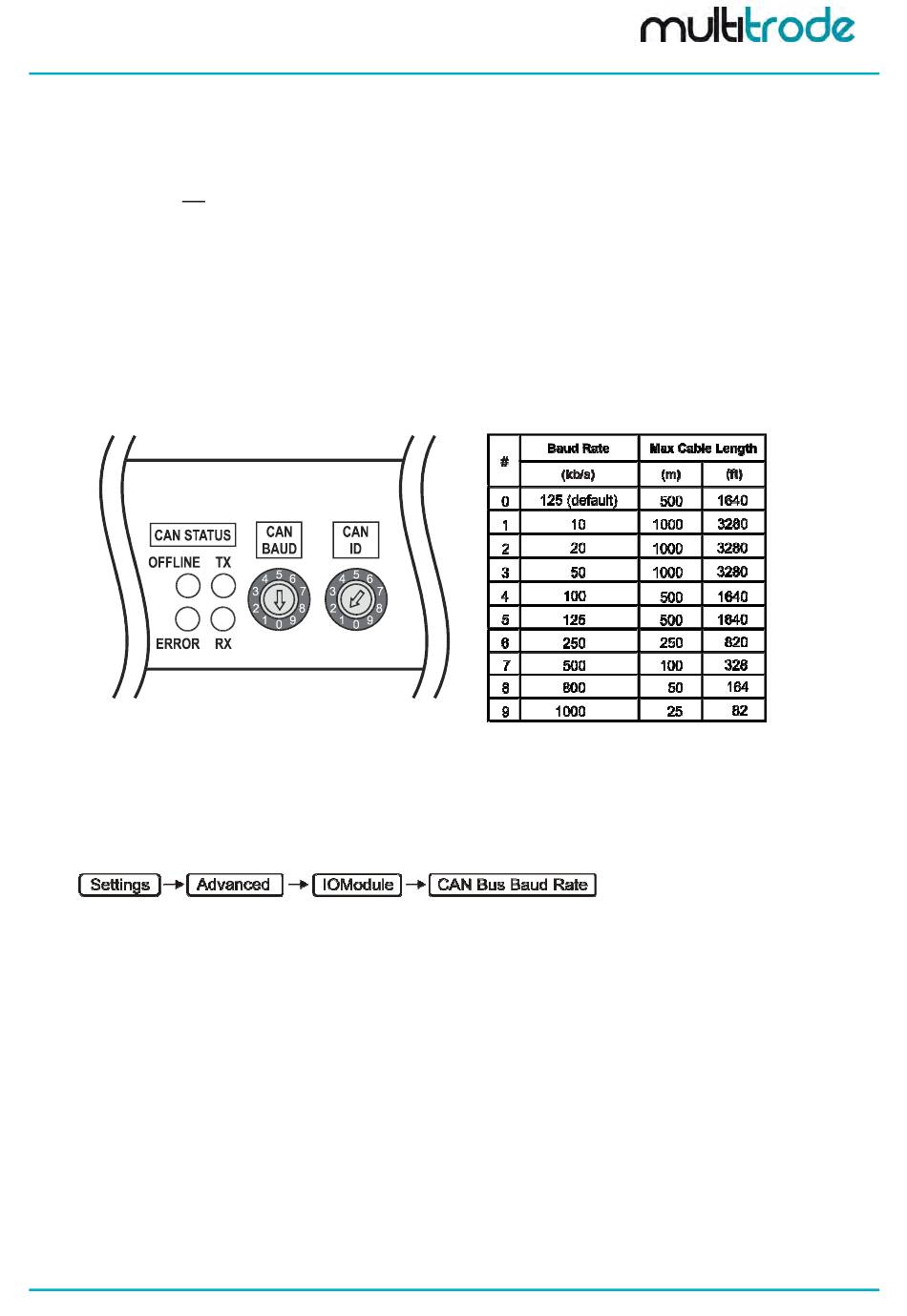

The CAN Bus baud rate and the device ID are set using the dial switches shown below. The ID must be
unique for each device on the CAN Bus.
The baud rate should be set to the same speed on every device connected to the bus. Select a suitable
speed for the length of cable between devices as shown in the table below.
Figure 48 – CAN Bus Settings
If the CAN Bus baud rate is changed on the unit, the same change must be made in the Advanced menu.
Navigate to:
and select the appropriate value.
MultiSmart_IO_Manual_A4_v2-22_R15.doc
Table 3 – Max. Cable Length at Specific Baud
Rates
Page 45 of 201
