7.3.2.2 10 Sensor Probe (or Ball Floats)
An example of how to wire a 10 sensor probe using 10 and 12 core cables is shown below. If no Failsafe
sensor is present, connect the 10 sensors from DI 2
configuration). DI 1 can be used for any other general digital input.

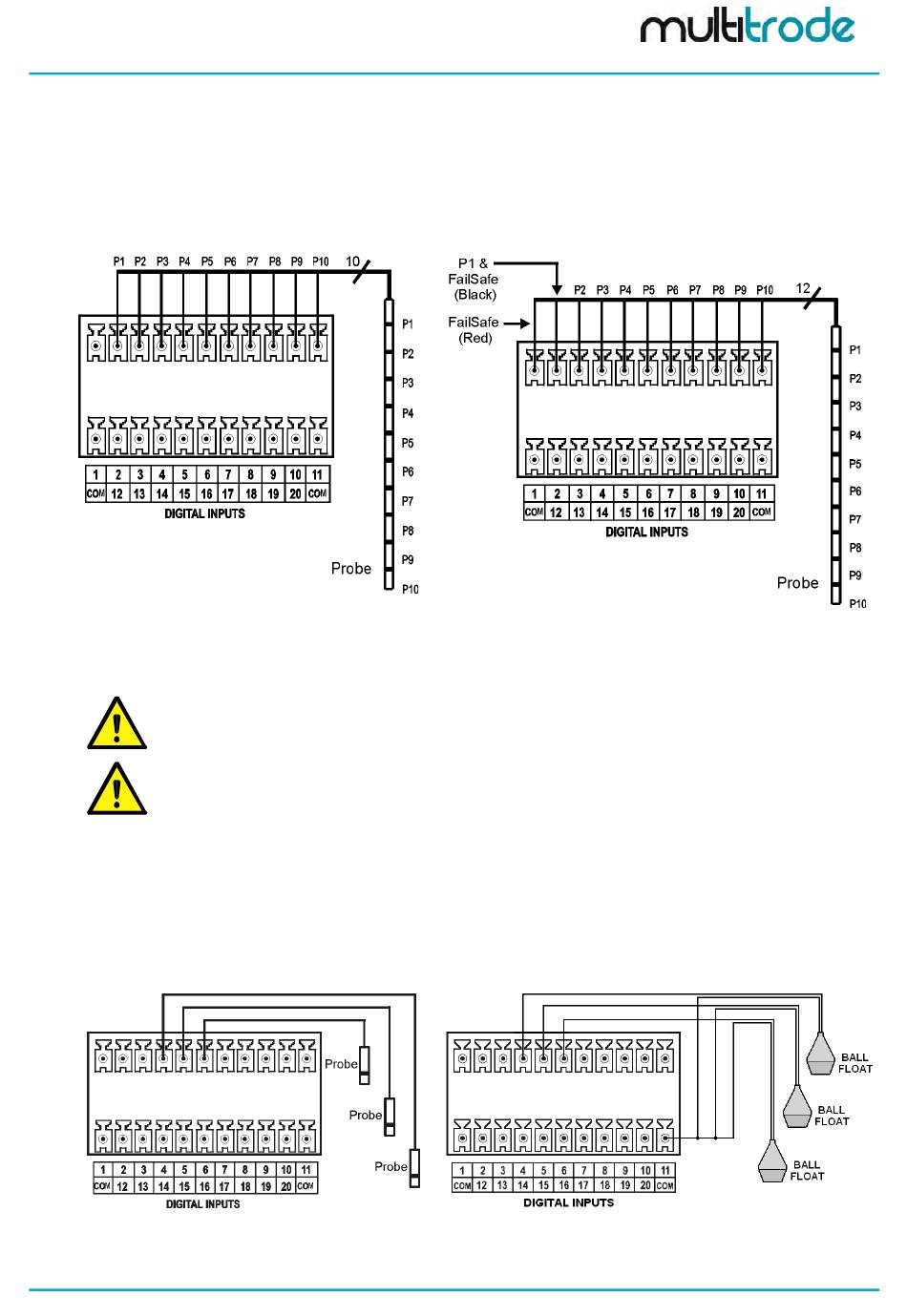

Figure 36 – Probe Connections – 10 Core Cable
For further Probe configuration information including DuoProbe connections refer to Section 14.8.
NOTE:
The Fail Safe feature requires a compatible probe and firmware version 2.2.2 or later.
NOTE:
If more than one Fail Safe probe is installed, only one (1) Failsafe probe (the highest) is connected
to the Fail Safe input.
7.3.2.3 Single Sensor Probe (or Ball Floats)
An example of wiring single sensor probes is shown below. Any input could be used as long as they have
been configured to accept a single sensor probe using the interface. (See Section 14.8.3 - Single Sensor
Mode for more information).
Figure 38 – Single Sensor Inputs
MultiSmart_IO_Manual_A4_v2-22_R15.doc
to DI 11 (this matches the MultiSmart default
Figure 37 – Probe Connections – 12 Core Cable
Figure 39 – Ball Floats
