7.5.3
Add PSU & Battery Backup
7.5.3.1
Connections to the Power Supply
The figure below illustrates the connections to the Mean Well power supply, model AD-155A, (Part No. PSU-
BATT-02.).

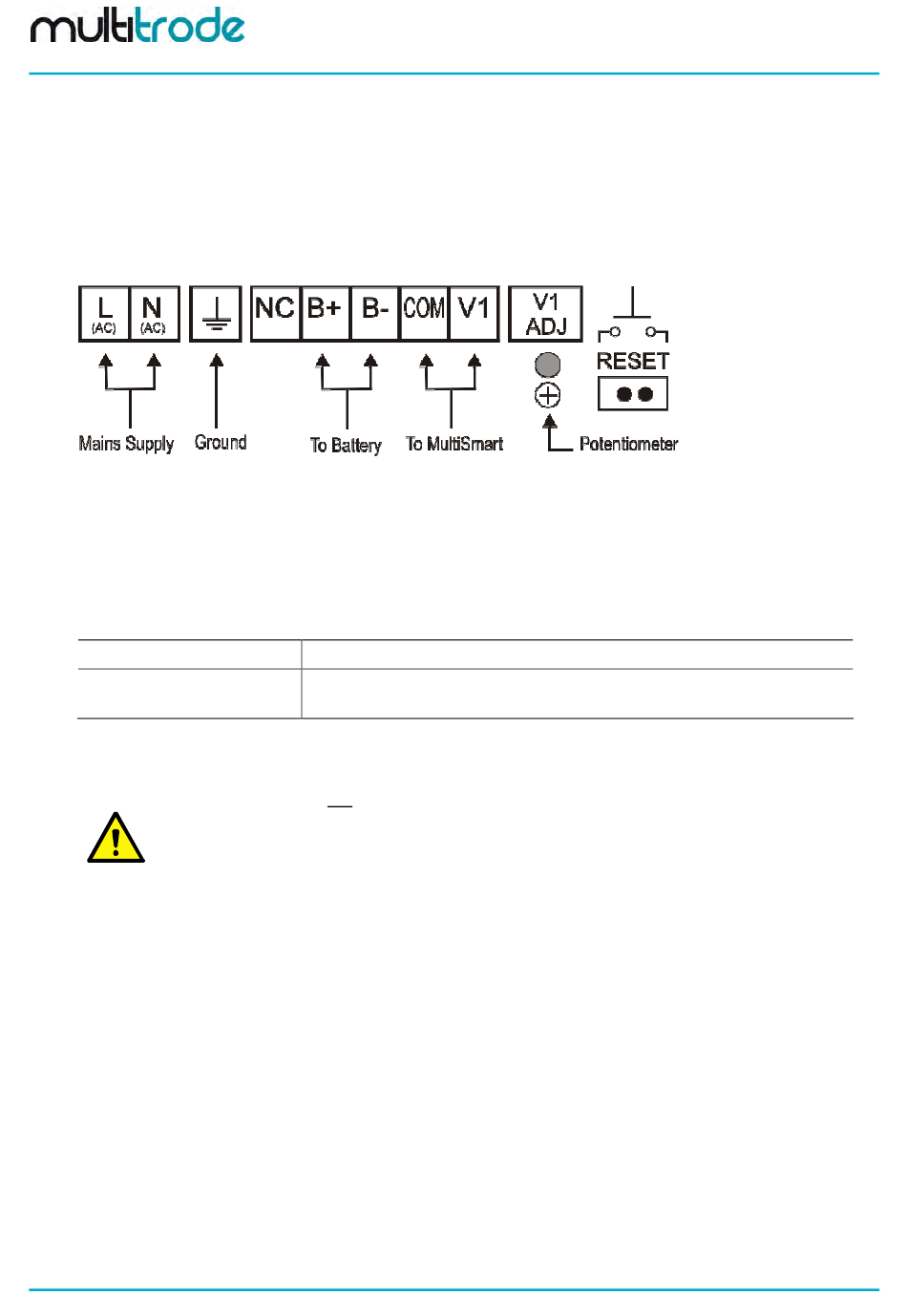

Figure 47 – Power Supply Terminal Block Connections
7.5.3.2
Setting the Correct Charge Voltage
To help maximize battery life it is essential that the correct charge voltage from the power supply to the
battery is set. The correct value is 13.7VDC +/- .1VDC*.
* This value applies to the current 12VDC, 28Ah batteries supplied (Yuasa and Panasonic brands - alternative brands
may however be supplied).
To verify the charge voltage:
To alter the charge voltage:
7.5.3.3
Power Supply Reset
NOTE:
If mains power is lost and the connections to the battery are removed and then reconnected, it will
be necessary to reset the power supply in order to restore operation (unless mains power is also
restored).
The reset connector is located on the right hand side of the terminal connections on the power
supply (labelled "RESET"). Bridge the two terminals within the reset connector to reset the power
supply.
Page 44 of 201
MultiSmart Installation & Operation Manual
Measure the voltage between terminals B+ and B-
Adjust the small potentiometer (labelled V1 ADJ) until the correct value is
displayed.
MultiSmart_IO_Manual_A4_v2-22_R15.doc
