To make changes to pump groups and alternation schemes, go into the Alternation and Grouping setup.
No. of Groups : 2
Group 1 Alt : Alternation (Std)
Pump 1
Pump 2
Group 2 Alt : Fixed (Std)
Pump 4
Pump 3
Group Alt: Fixed (Std)
Back

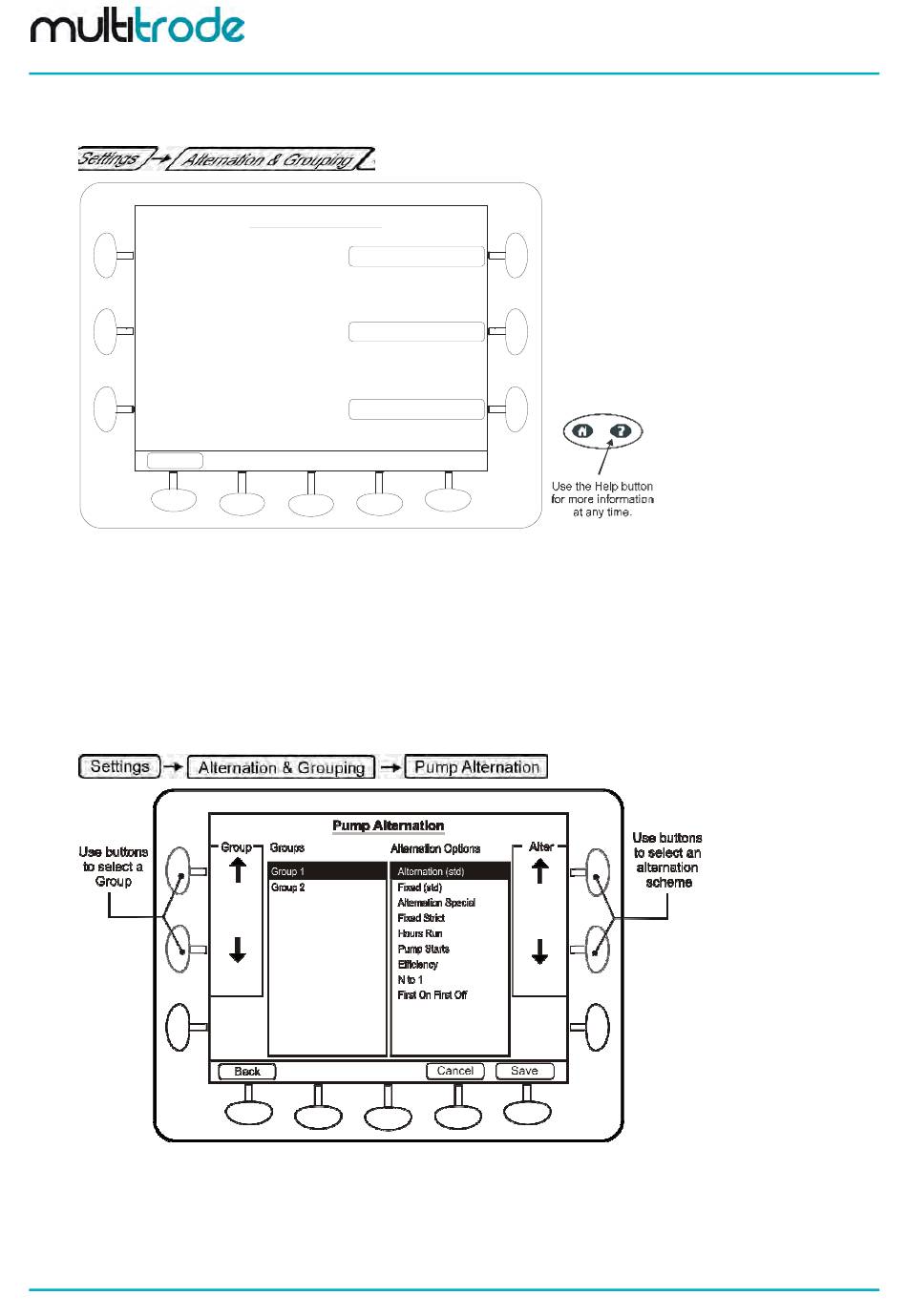

Figure 93 - Alternation & Grouping Screen
This example screen shows that the 4 pumps are divided into 2 groups. Group 1 pumps are alternating.
Group 2 pumps are fixed sequence, with pump 4 starting before pump 3. The Group Alternation is set to
Fixed, which means that Group 1 always starts before Group 2.
13.1 Change Alternation & Fixed Duty
Choose the Pump Alternation option to change the alternation scheme. For more than one group, use the
Group arrows on the left to select each group in turn, then the Alter arrows on the right to change the
alternation scheme.
Figure 94 –Changing Group Alternation & Fixed Duty
Press Save to apply changes and go back to the Alternation and Grouping screen. The summary now shows the
changes made as the current settings .
