MultiTrode MultiSmart Installation & Operation Manual page 110

Enter your own
description for the fault
if required.
Fault Name
Description
Act Delay (sec)
Deact Delay (sec)
Pump Unavailable
Manual Reset Req
Within (hh:mm:ss) 000:00:00
Back

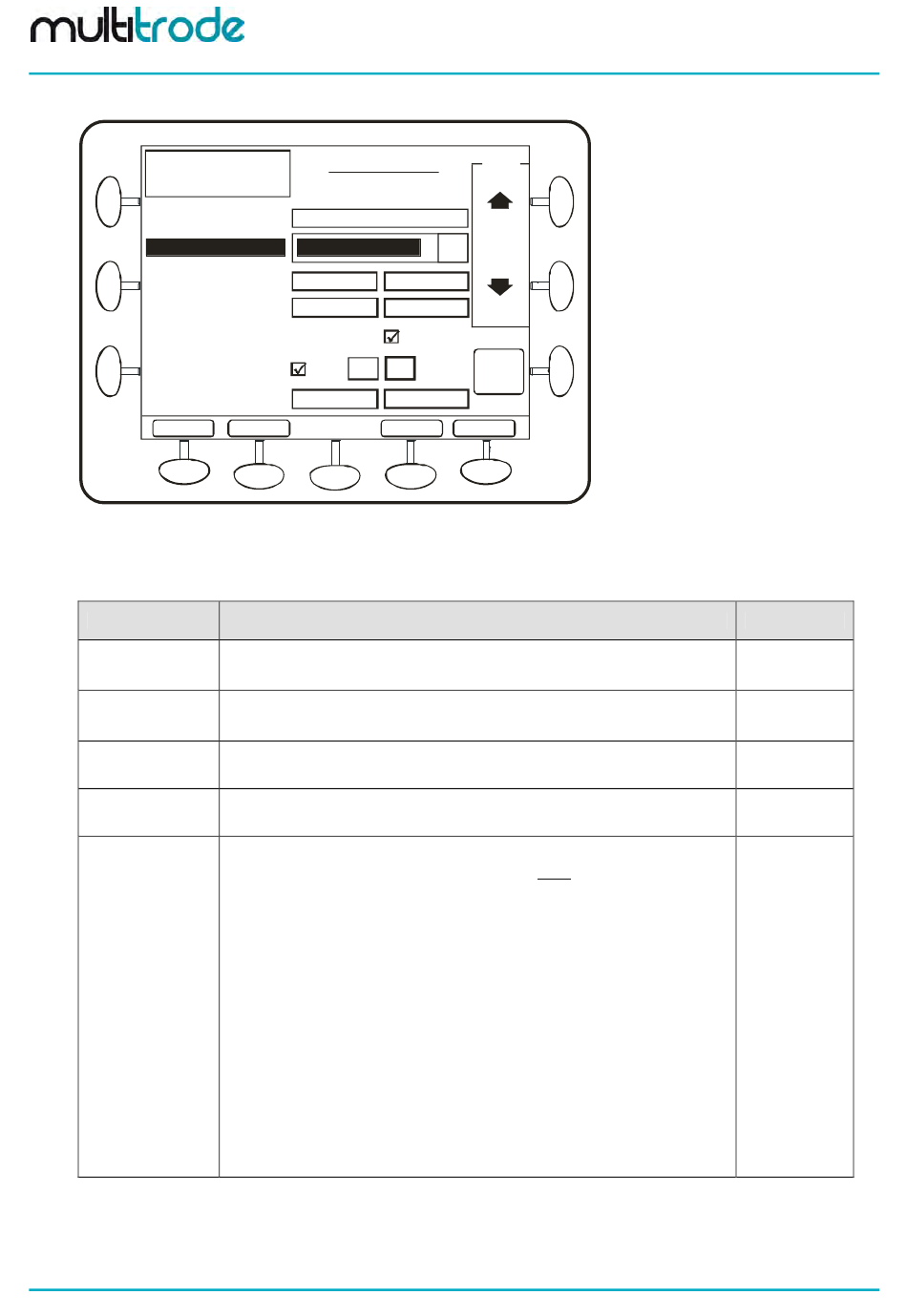

Figure 116 - Configure Basic Fault Options
The following items can be configured for each fault:
Name
Description
Act Delay
Deact Delay
Pump Unavailable
Manual Reset
Req
Table 14 – Advanced Fault Parameters
Page 110 of 201
MultiSmart Installation & Operation Manual
Configure Fault
Pump 1 Thermal Overload Pump 1 Thermal Overload
Pump 1 Thermal Overload
1.000 1.000
1.000 1.000
1
After 1 1
000:00:00
Context Cancel
Description
Text description of the fault.
Activation delay in seconds. The time period before the fault becomes
active.
Deactivation delay in seconds. The amount of time the fault must have
cleared before the pump becomes available again.
Check this box to make the pump unavailable when the fault is active.
Determines whether the pump station manager performs an auto-reset of
the fault or an operator is required to manually reset the fault.
(Note, even if auto-reset is selected, an operator must still manually
acknowledge the fault via the display (or via SCADA) before it is removed
from the screen).
The manual reset can be further configured so that a manual reset is
required only if a preset number of faults occur within a set period of time.
i.e. when the number of faults equals the preset value and they occurred
within the set period, the pump becomes unavailable (locked out) until an
operator resets the fault. This is configured as follows:
Enable Pump Unavailable
Enable Manual Reset Req (this also displays the extra settings)
Set the After [x] faults to the number of faults
Set the Within (hh:mm:ss) field to the length of time that the number of
faults must occur within to trigger a Manual Reset lockout (pump
unavailable).
Press Save to confirm.
Select
abc
faults
Toggle
Save
Range/Type
Text
Seconds
Seconds
True/False
True/False
