21.1.2 Configuration B (Recommended)
In this configuration the Pump Station receives the level over a direct communications link with the Reservoir
Monitor. This is the preferred configuration.
The Pump Station must be configured as a DNP Master (choosing remote level and configuration B for the
pump station will ensure this is the case).
Pump Station
Slave
Master

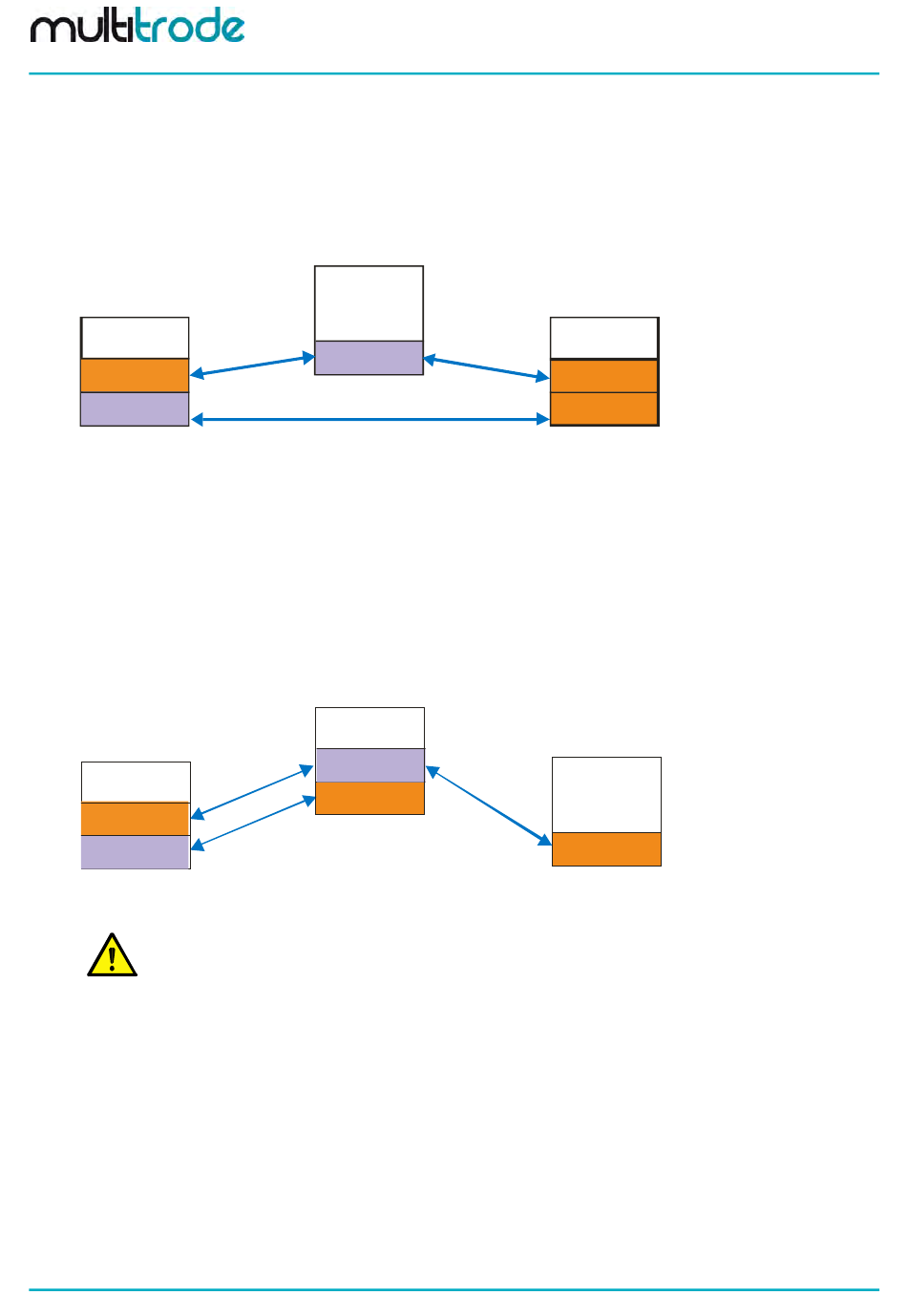

Figure 136 - Communications Configuration B
21.1.3 Configuration C
This configuration is also used when there is no direct communications link between the Pump Station and
the Reservoir Monitor. In this mode the Pump Station will establish a second connection to the DNP3 Master
(MTU) in order to retrieve levels from the Reservoir Monitor.
This configuration can be used instead of Configuration A when there is no redundant MTU available.
When using this configuration Connection Manager must be enabled on the Pump Station. The Pump
Station must also be configured as a DNP Master (choosing remote level and configuration B for the pump
station will ensure this is the case).
Pump Station
Slave
Master
Figure 137 - Configuration C
NOTE:
Connection manager is functionality which should be enabled as standard on the MultiSmart. Check
the software modules screen to ensure this is the case.

21.2 User Interface

The Reservoir Monitor user interface mirrors the Pump Controller, with all the pump functionality and options
removed. This ensures that menu options are always in the same place for both products to make training of
operations staff more effective.
Settings Menu options still available on the Reservoir Monitor:
21.2.1 Set Points (but Level/Control Setpoints sub-menu item removed)
I/O faults and Level
•
• Setup Wizard
Station Optimization (only Profile selection remains)
•
Page 148 of 201
MultiSmart Installation & Operation Manual
MTU
Master
MTU
Master
Slave
Reservoir
Slave
Slave
Reservoir
Slave
