- Page 1 Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General System Integrator’s Guide MultiSmart Pump Station Manager Page 1 of 20 Q-Pulse Id VM357 Active 26/09/2013...
-
Page 2: Table Of Contents
Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide Contents Introduction to MultiSmart ..................3 Purpose of this document..................4 Integration to any SCADA ..................4 Tag database ......................4 Which tags should be integrated? ................ 5 Examples of tags or points not used in an installation ..........5... -
Page 3: Introduction To Multismart

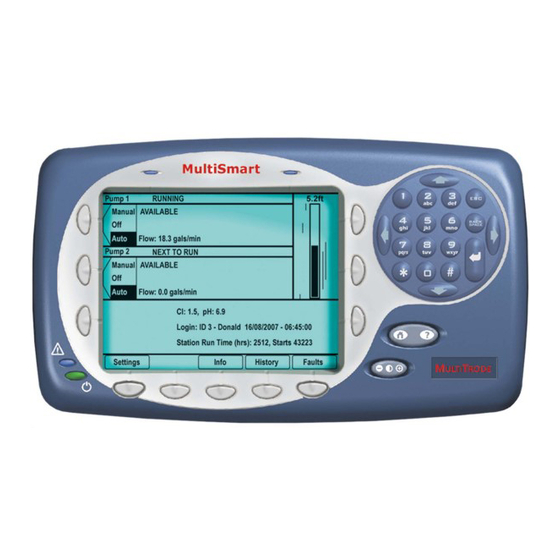

MultiSmart Integrator Guide Introduction to MultiSmart MultiSmart is a pump station manager - a new category of product - which combines the best of pump controller functionality, PLC flexibility, an RTU, and some control panel components. The main functional blocks of MultiSmart include: •... -
Page 4: Purpose Of This Document
Tag database At the heart of the MultiSmart product is a tag database with 1000s of tags. These tags provide extensive functionality. For example, if “Level” is being measured from AIN1, there will be an IO tag (AIN1) as well as a “Level”... -
Page 5: Which Tags Should Be Integrated
5.1 Examples of tags or points not used in an installation The profile document includes DNP3 points (and Modbus points) for: • “Pump 1 Seal fault” – this fault will only exist when a pump seal sensor is wired into MultiSmart and configured •... -
Page 6: Basic 2-Pump Application (1 Well) - 18 Tags
Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide 5.4 Basic 2-pump application (1 well) – 18 tags Modbus ID Description Tag ID DNP ID (default) Comments (default) This means that the output control relay has been Pump 1 Running (called) PumpControl._1.Running... - Page 7 Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide Note 1: Each pump has a number of different faults associated with it, depending on which faults are wired in/configured. Each one of these faults can be separately brought back and has a default tag associated with it.
-
Page 8: Intermediate 2-Pump Application - 54 Tags
Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide 5.5 Intermediate 2-pump application – 54 tags DNP ID Modbus ID Description Tag ID Comments (default) (default) Pump 1 Pump 1 Running... - Page 9 Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide Pump 2 Thermal Binary Discrete Faults.Pump._2.ThermalOverload.Status.Active overload fault active Input 136 Input 128 Pump 2 Thermal C/B Binary Discrete Faults.Pump._2.CBOffTrip.Status.Active off trip fault active...
- Page 10 Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide Input Analog Supply, phase BC IO.Unit._1.TopBoard.Vin._1.VoltsBc Register Input 48 Input Analog Supply, phase CA IO.Unit._1.TopBoard.Vin._1.VoltsCa Register Input 49 Input Analog DC supply IO.Unit._1.DcVolts.Input.Value...
- Page 11 Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide Frozen P2 Pump efficiency, MotorProt.Pump._2.EfficiencyYesterday Counters See Note 4 Gals or litres / kWHr yesterday Input Analog P2 Power, KW IO.Unit._1.BottomBoard.Power._2.Power Register...
- Page 12 Note 7: “Manual mode” on the MultiSmart main display is really “Semi-Auto” mode – which means that the pump will run in manual operation until the cut-out or deactivation point is reached, at which point the pump mode will revert to “Auto”.
- Page 13 Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide Page 13 of 20 MultiSmart_Integrator_Guide_R01.doc Page 13 of 20 Q-Pulse Id VM357 Active 26/09/2013...
-
Page 14: Enabling Software Modules In Multismart
MultiTrode. Some modules have a price tag, others do not incur any cost. 7 DNP3 configuration MultiSmart DNP3 Level 2 is fully compliant to the standard as can be seen by the audit done by Goanna Technologies in 2007. See www.multitrode.com for the compliance document. -
Page 15: Event Buffering (Soe Vs Most Recent)
Not all devices support frozen counters either (including ClearSCADA). 7.3 Event buffering (SOE vs. Most Recent) MultiSmart DNP Slave has the ability to buffer events between polls. The maximum number of events is defined for each object type, and can be reconfigured. However, using excessively large buffers could result in bandwidth issues (potential for very large messages being generated in response to an event poll). -
Page 16: Planning For Communications Outages
7.5 Multiple DNP slaves It is possible to configure a MultiSmart unit with multiple DNP Slaves. This is particularly useful if a redundant communications path is desired. In order to set up a second channel, do the following:... -
Page 17: Peer To Peer / "Store And Forward
As well as communicating to an MTU as a slave device, MultiSmart can also operate as a Modbus or DNP Master device, talking to other slave devices. When set up in this manner, it is possible for a command to be sent via the MTU to the MultiSmart, which then forwards that command on to other slave device/s. -
Page 18: Media
Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide 10 Media MultiSmart supports a variety of communications media: • Cellular data GPRS Next G (Australia) 1XRTT (CDMA data) • PSTN •... -
Page 19: Comms Troubleshooting
Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide For the second slave, navigate to • Set UnsolAllowed to true • Set UnsolClassMask to the desired classes (typically All) Navigate to •... -
Page 20: Advanced - How To Turn On Dnp3 Logging
Lobley St SPS SP331 General (Electrical Manual (MPA) Multismart Manual Multitrode System Integrator Guide) General MultiSmart Integrator Guide 13.2 Advanced - How to turn on DNP3 logging DNP Logging can be turned on by editing the file /var/config/master.xml. There will be an entry that looks like this: <Enable version=”00.00.00: module=”DNPSlave”>...
