12.3 Changing Pump and Alarm Levels Setpoints
12.3.1
Limitations
The MultiSmart unit does not allow the user to set invalid activation and deactivation setpoints, for example:
When in Empty (Discharge) mode the Lag (Standby) pump cannot be configured to activate or
•
deactivate before the Lead (Duty) pump.
When in Fill (Charge) mode the activation level for any particular pump cannot be higher than the
•
level for the previous pump in the duty order. The deactivation level also cannot be higher than the
previous pump in the duty order.
12.3.2
Setting Pump Setpoints
From the main screen navigate to the Level/Control Setpoints screen:

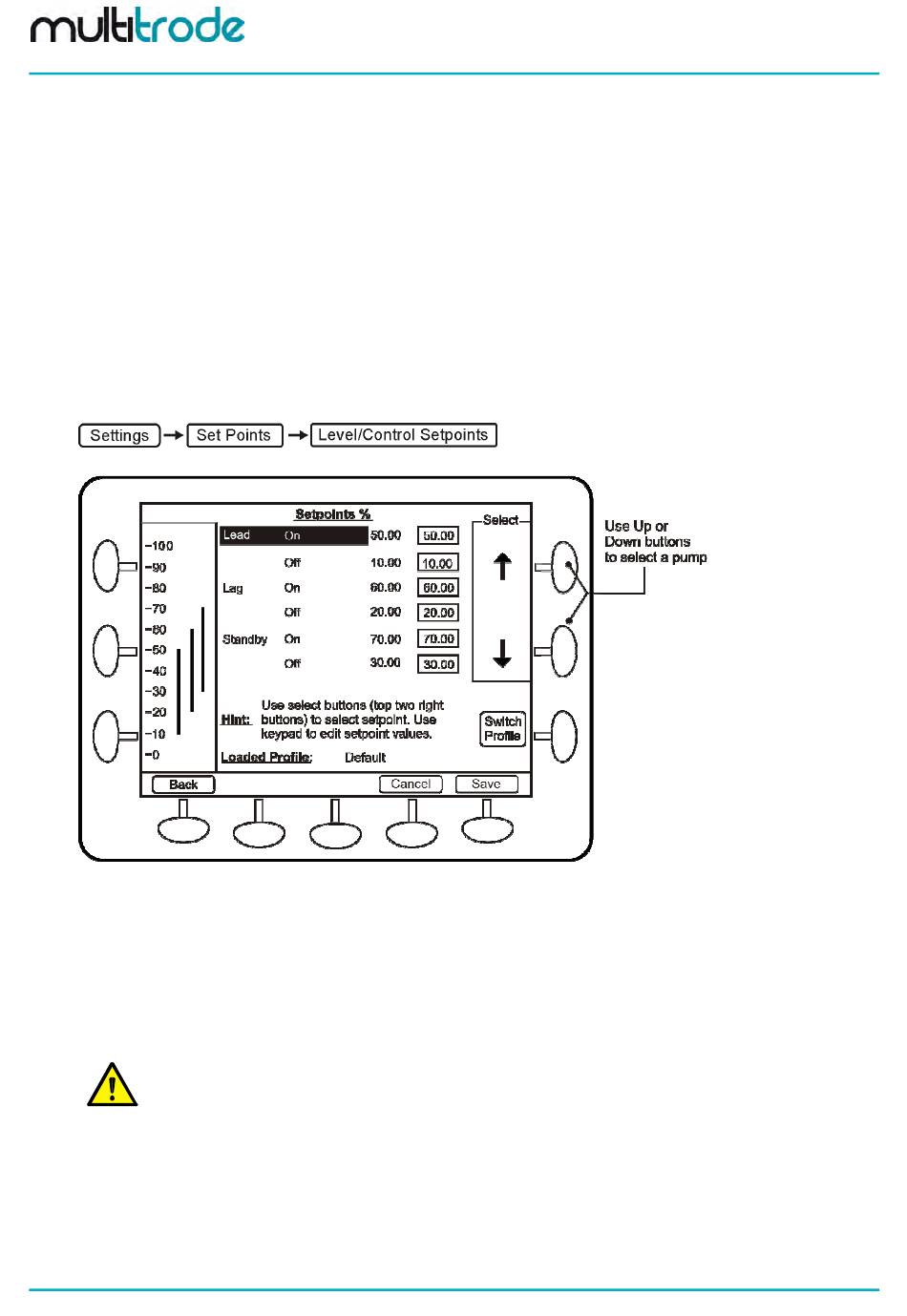

Figure 89 - Setting Pump Levels
Use the arrows to select a pump
•
Enter new values using the keypad
•
Push the Save button to commit the changes
•
If the settings are invalid an error message is displayed
•
NOTE: If there are more than one well and if they are independent, the first set of Lead/Lag pump/s
listed in this menu will correspond to the pumps in well 1 and the next set will correspond to the pump/s
in the second well.
Page 78 of 201
MultiSmart Installation & Operation Manual
MultiSmart_IO_Manual_A4_v2-22_R15.doc
