MultiSmart Installation & Operation Manual
5.4.3.9
System Log
System Log displays any system errors with a time stamp.
Navigate to:

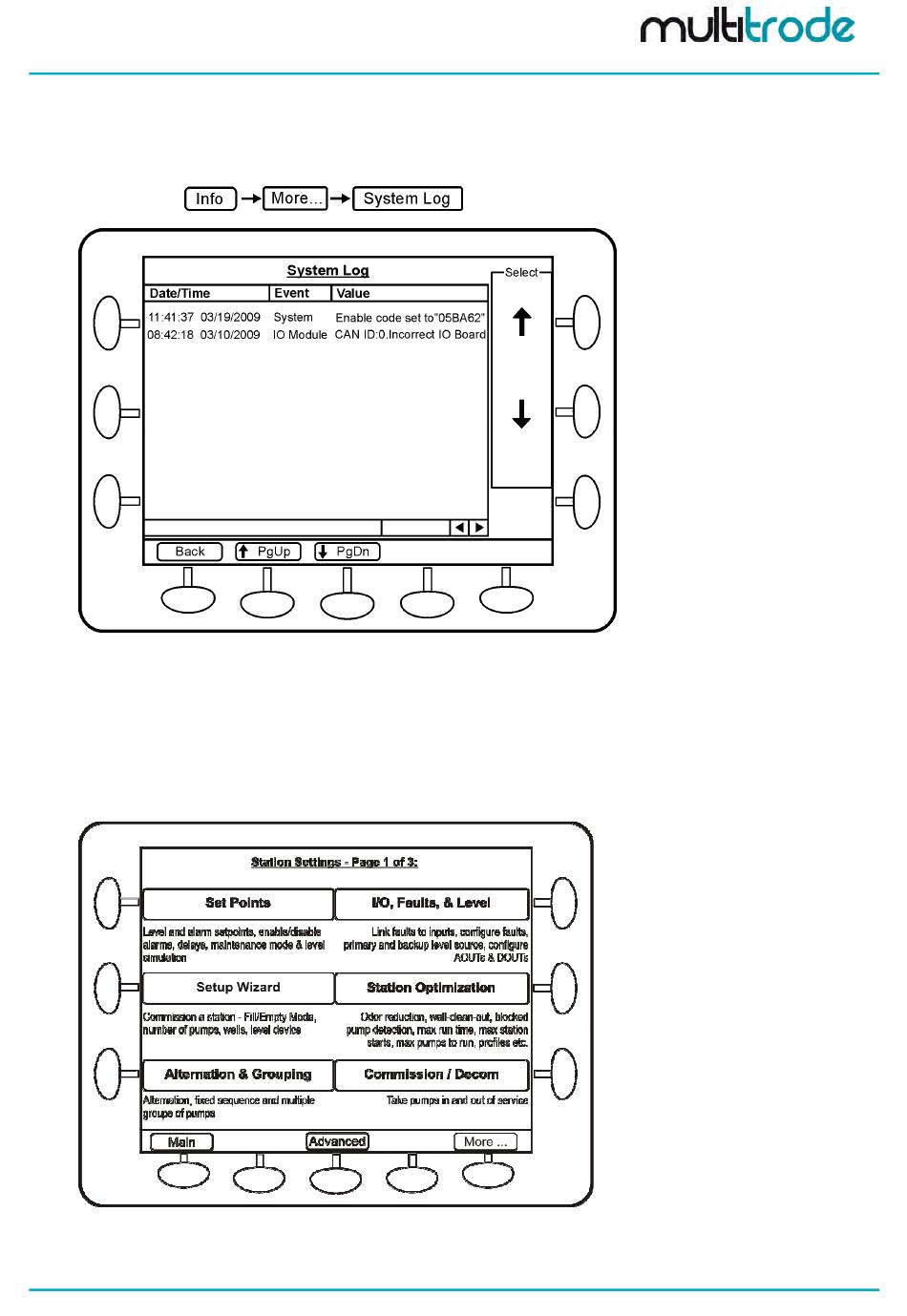

Figure 22 – System Log
5.4.4
Settings Screen
Changes to the operation of the MultiSmart unit can be done by accessing this menu. Most of the general
pump station requirements can be configured from the sub sections under Settings. However a wide range
of advanced configuration options are also available which could be accessed and configured through the
Advanced button in the Settings menu.
Figure 23 – Settings Screen
MultiSmart_IO_Manual_A4_v2-22_R15.doc
Page 27 of 201
