14 Configuring I/O, Fault & Level Devices
The MultiSmart unit can interface directly to a wide range of Input/Output, Fault and Level devices.
Connection diagrams for these are described in Section 7.2. This section describes how to configure these
devices on the pump station manager itself.

14.1 Digital Inputs

Various types of devices can be connected to DINs. Some inputs have special functions for particular
purposes. These are summarized in Sections 7.3, 7.6 and 14.4.
configuration, navigate to the Digital Inputs screen:
Digital Input
Top Board DIN 01
Top Board DIN 02
Top Board DIN 03
Top Board DIN 04
Top Board DIN 05
Top Board DIN 06
Top Board DIN 07
Top Board DIN 08
Top Board DIN 09
Top Board DIN 10
This screen is for display only. To edit, select Faults or General.
Back

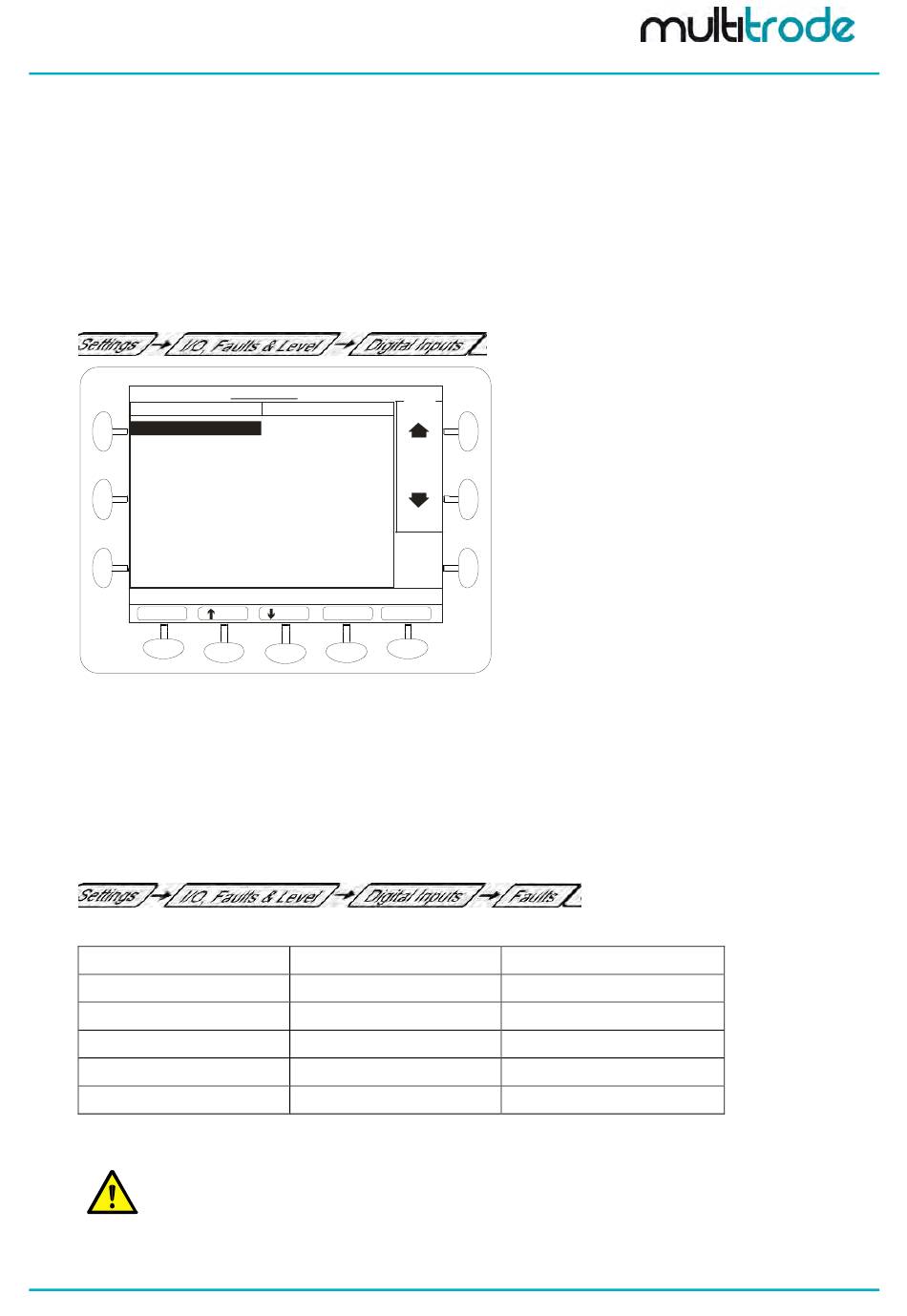

Figure 98 - Digital Input Assignments
To change the I/O configuration go to either the Faults or General screen:
Faults - Used to assign/unassign a particular type of fault such as pump seal fault.
•
General - Allows the description of the input (i.e. DIN 12) to be renamed.
•

14.2 Assigning Faults to Digital Inputs

Navigate to:
The predefined faults that can be linked to a digital input are listed below.
Generator Running
Generator Fault
Station Inhibit Override
Pump 1 CLS
Pump 1 FLS
Pump 1 Seal
Table 7 – Digital Input Fault Sources
NOTE: For a full list of faults and their function, see Appendix A.
MultiSmart_IO_Manual_A4_v2-22_R15.doc
Digital Inputs
Assigned
Pump 1 Motor Overtemp
Pump 1 Seal
Pump 1 Thermal Overload
P1 Contactor Auxiliary
P1 C/Breaker Off/Trip
DIN.6
Pump 2 Motor Overtemp
Pump 2 Seal
Pump 2 Thermal Overload
P1 Contactor Auxiliary
PgDn Faults General
PgUp
Pump 1 Thermal Overload
Pump 1 Motor Over Temp
Pump 1 CB Off/Trip
Pump 1 Contactor Auxiliary
Pump 1 Delay Fail
Pump 1 Critical
Input
Pump 1 Non Critical
Pump 1 Holdout
Pump 1 Inhibit Override
- etc, repeated for each pump
General fault 1 - 10
-
To view the current digital input
