Select the DuoProbe length based on the model number and press Save. (The first number represents the
length of the probe in metres). The adjacent table below lists the various probe lengths in inches.

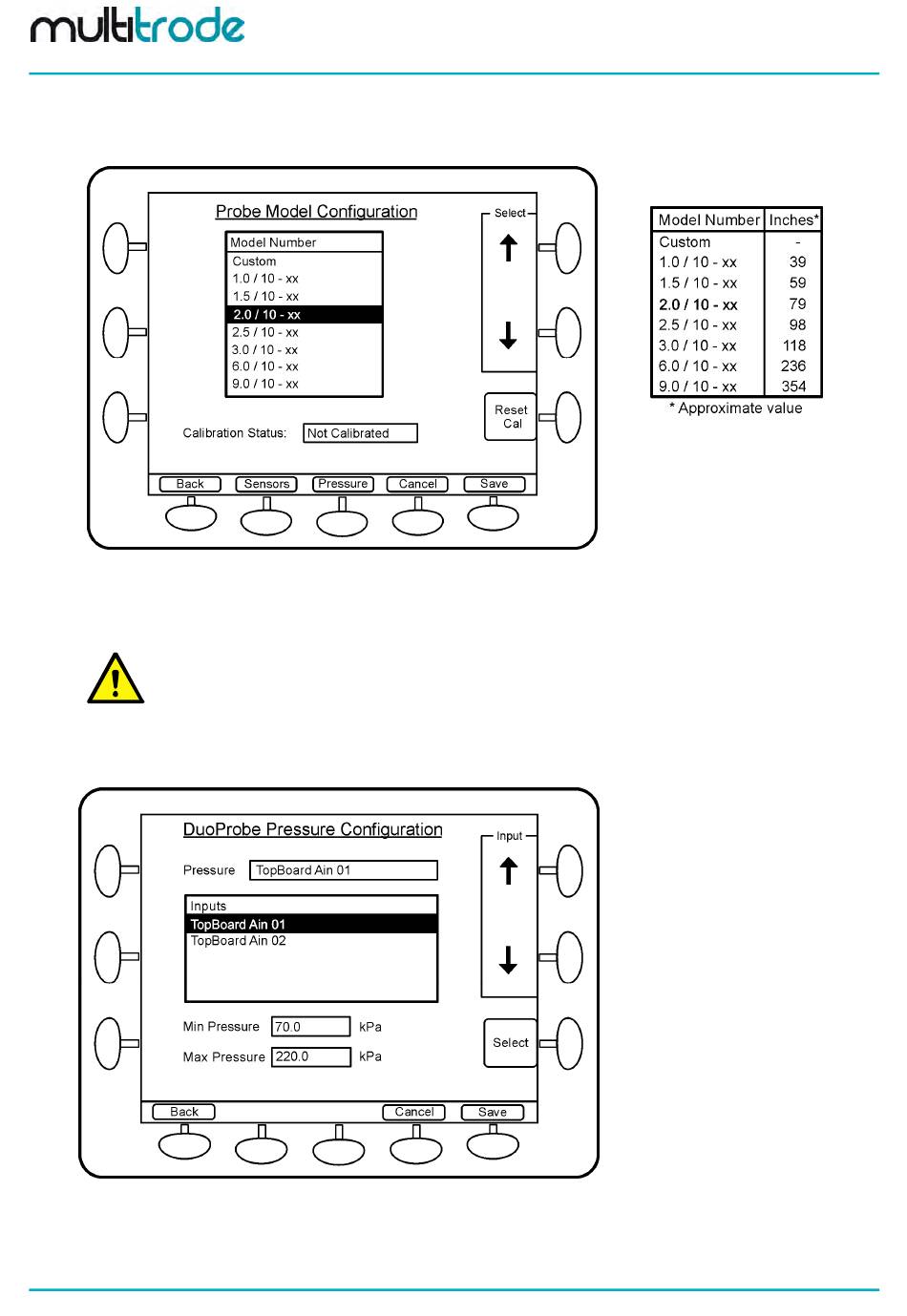

Figure 111 – DuoProbe Model Selection
The Sensors button allows the digital inputs to be reconfigured – this is not necessary if the defaults are
used on DuoProbe 1 (Dins 2 to 11).
NOTE: If the standard MultiSmart wiring diagram is followed for the DuoProbe interfacing there is no
need to change the default digital inputs (Din 2 to 11). However if a 2
essential that the correct digital inputs are assigned to the 2
Press the Pressure button to select the analog input to be used for the DuoProbe.
Scroll down to the appropriate analog input (e.g. TopBoard Ain 01) and press Select and Save.
Figure 112 – Analog Input Selection for DuoProbe
Page 104 of 201
MultiSmart Installation & Operation Manual
Table 13 – Probe
Length in Inches
nd
DuoProbe is defined, it is
nd
DuoProbe.
MultiSmart_IO_Manual_A4_v2-22_R15.doc
