MultiSmart Installation & Operation Manual
8.3 Configuring PumpView for an Ethernet Cellular Router
The following setup is typically completed prior to shipment but circumstances may arise when this
procedure must be performed on-site. A Cellular Router is connected to the Ethernet port on the MultiSmart
via a crossover cable.
1. Enter the PumpView Site ID and Comms Channel
Highlight PumpView and press Select
•

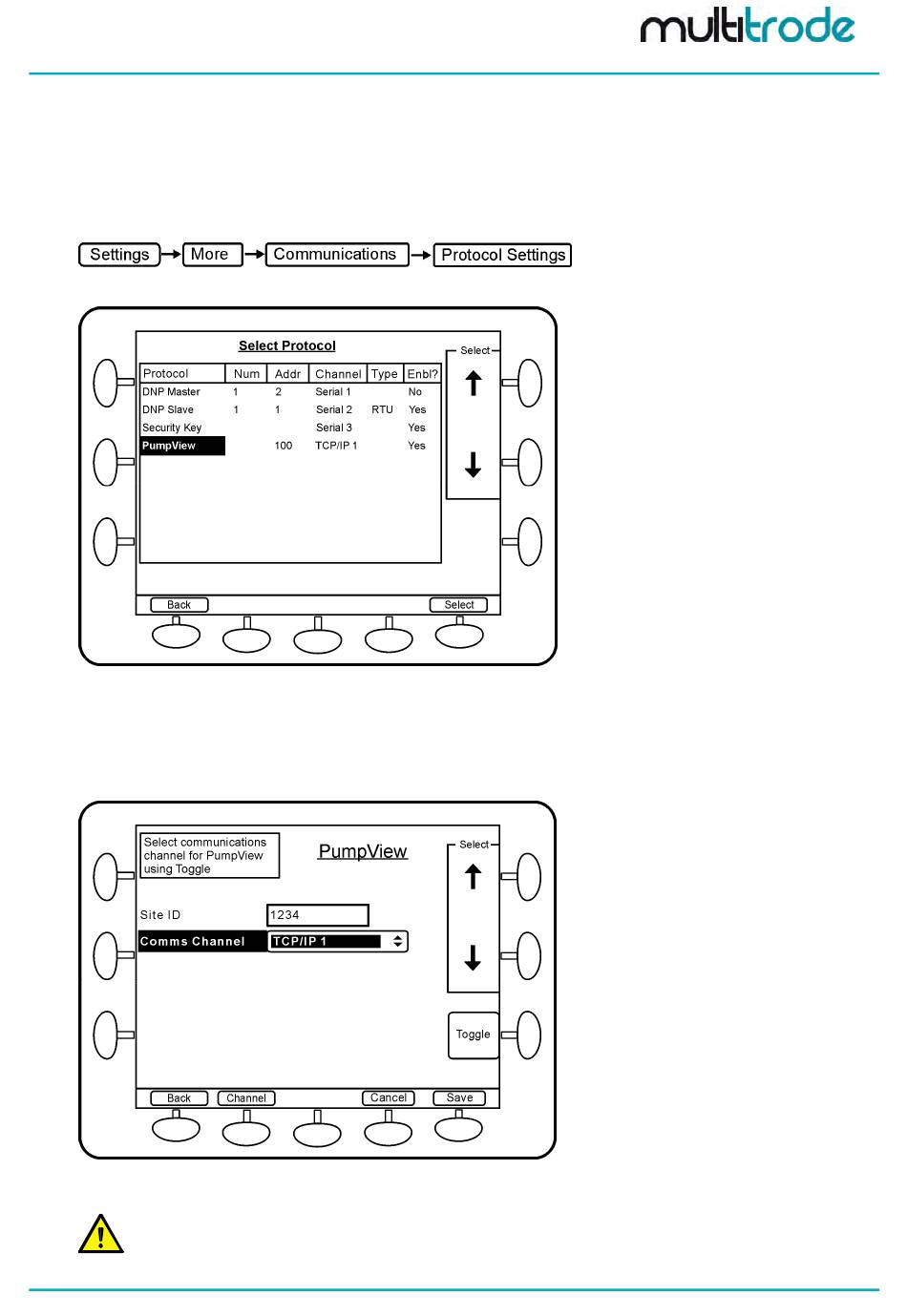

Figure 62 – Selecting PumpView Protocol
Enter the 4 digit Site ID (contact MultiTrode for this or see Note below)
•
Change the Comms Channel to TCP/IP 1
•
Press Save and Restart Later
•
Figure 63 – PumpView Site ID & Comms Channel Selection
NOTE:
The Site ID can be found at the end of the URL. Visit the PumpView website, select the site of interest.
The Site ID is the last 4 digits that appear at the end of the URL. (The URL or website address is located
at the top of the web browser). Example: http://www.pumpview.com/t3000/...&siteId=1234
MultiSmart_IO_Manual_A4_v2-22_R15.doc
Page 53 of 201
