7.1 Power Supply
The MultiSmart pump station manager runs from an external 12 – 24 VDC (+/- 5%) power supply. This
external DC supply is connected to the DSP board as shown below:

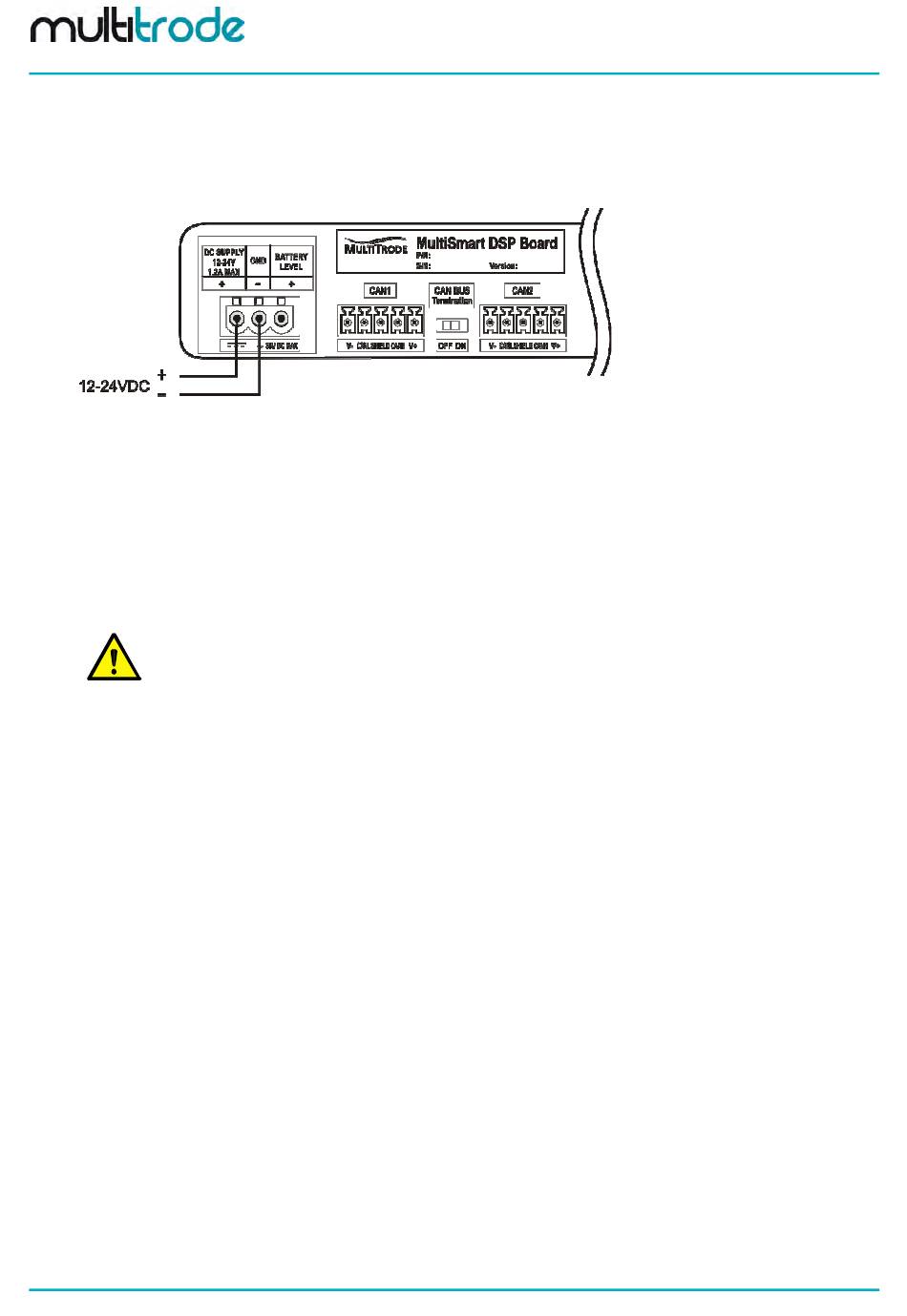

Figure 29 – Power Supply
7.1.1
Power Consumption
The MultiSmart unit consumes up to 30W per unit during initial start-up, (inrush current) and 15W per unit
during continuous operation.
7.1.2
Power Supply Requirements
The MultiSmart must be used in conjunction with a power supply that meets or exceeds the specifications
listed in Table 1 – Power Supply Specifications.
NOTE:
To maintain UL compliance of the product, the power supply must also be UL Listed.
OUTPUT
INPUT
ENVIRONMENT
Table 1 – Power Supply Specifications
Page 32 of 201
MultiSmart Installation & Operation Manual
DC Voltage
Power
Voltage Tolerance
Line Regulation
Load Regulation
Voltage Range
Frequency Range
Working Temp
Working Humidity
Storage Temp/ Humidity
12 – 24 VDC
>30W
+ - 2.0%
+ - 0.5%
+ - 0.5%
85 ~ 264VAC (120~370VDC)
47-63Hz
-10° C ~ +60° C
20-90% RH non-condensing
-20° C~ +85°C, (10~95RH)
MultiSmart_IO_Manual_A4_v2-22_R15.doc
