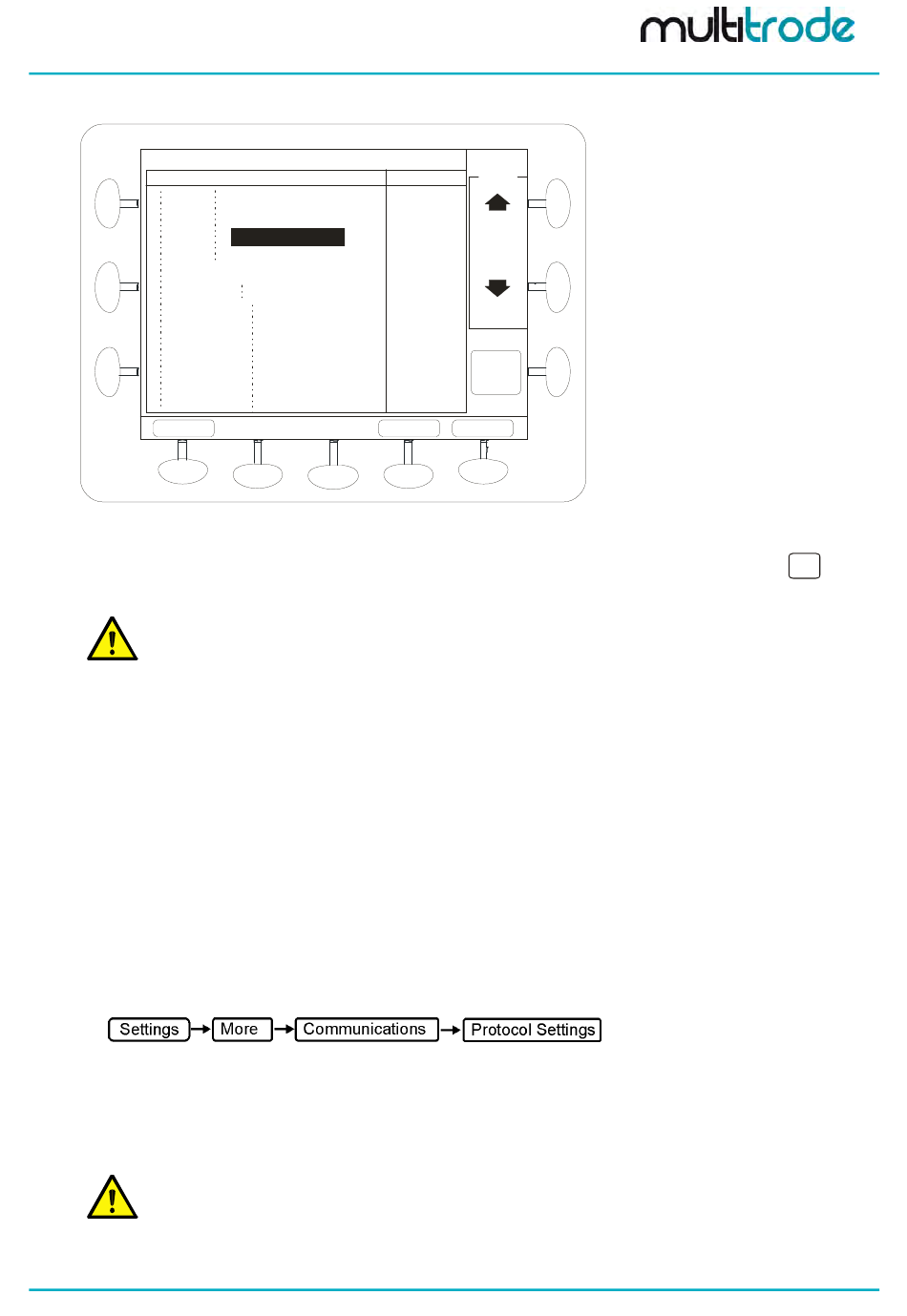

Figure 85 – Tag browser screen –continued.
Once you have found the Digital Input (DIN) you are looking for, expand the selection using the
and scroll down to ValueDigital and press OK.
NOTE: The tag browser gives you access to any tag in the MultiSmart unit, including tags generated by
the logic engine.

11.2 Security Key Setup

The Security (or Dallas) key allows a quick and easy method of accessing the MultiSmart whilst maintaining
a high level of security, as only those users with a Security key (in which the Administrator has registered the
PIN) can gain access the MultiSmart menus.
The Security key module is a separate software module which can be enabled after purchased. (Only
present in MultiSmart firmware version 2.2.0 or later).
11.2.1 Initial Hardware Setup
To enable the Security key reader:
If not purchased with the MultiSmart, enter the new Site Key provided by MultiTrode (See Section
•
28 for procedure).
Navigate to the Protocols Settings screen.
•
The Security key is assigned to serial port 3 by default. Verify that no other device is using this port,
•
if so, reassign a device to an unused serial port. (See Figure below).
Connect the Security key reader to the selected port (or the default port 3).
•
Reboot the MultiSmart.
•
NOTE: If at any time the Security Key reader is disconnected from the MultiSmart, a reboot is
necessary in order to re-establish communications to the reader.
