14.11.2 Example: How To Make a Digital Output State Follow a Digital Input State
In this example, Digital Output 5 is configured to follow Digital Input 1.
Select Advanced, select IO Module
•
Select the Unit (e.g. Unit 01) then
•
Select which board the digital output is located on (e.g. Top Board) then
•
Select Digital Output then
•
Select the free digital output that is to follow the digital input (e.g. DOUT 05) then
•
Select Source and press "Use this button to view or change value"
•
Select IO
•
Select the Unit (e.g. _1) then
•
Select which board the digital input is located on (e.g. Top Board) then
•
Select Din
•
Select the digital input that that the digital output is to follow (e.g. _1)
•
Select ValueDigital (a digital tag) then press the Ok button
•
Press the Save button
•

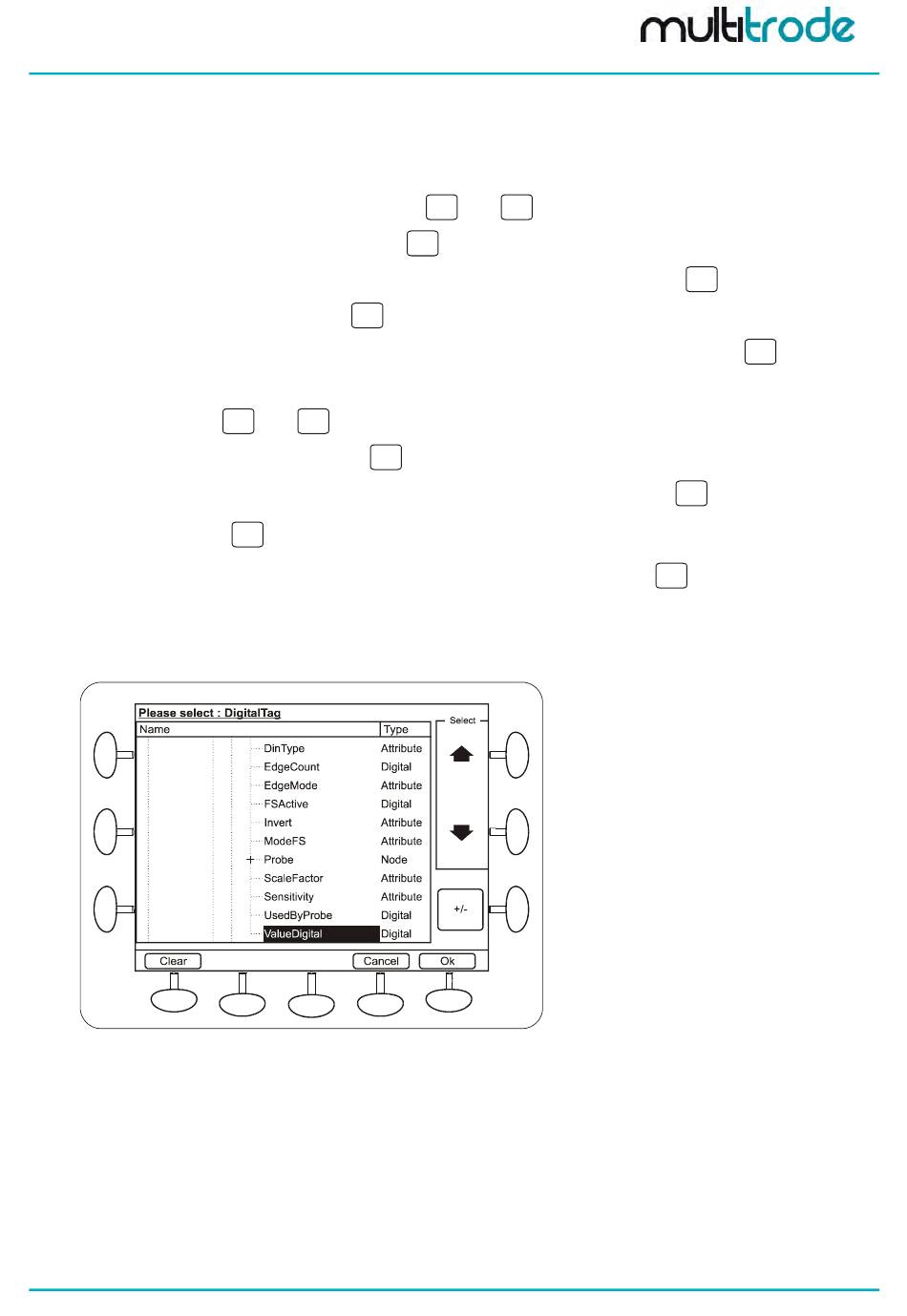

Figure 121 – Making a Digital Output Follow a Digital Input
