26 Customizing the Display

Some elements of the main operator screen can be customized by the user.
Name Pumps
Chan ge the name of pumps.

Pump Data Display

Chan ge display line for each pump to
new value, e.g. flow, hou rs run, e ff icie ncy
Bottom Section
Customize the 3 lin es displayed on
the bot tom of the main screen

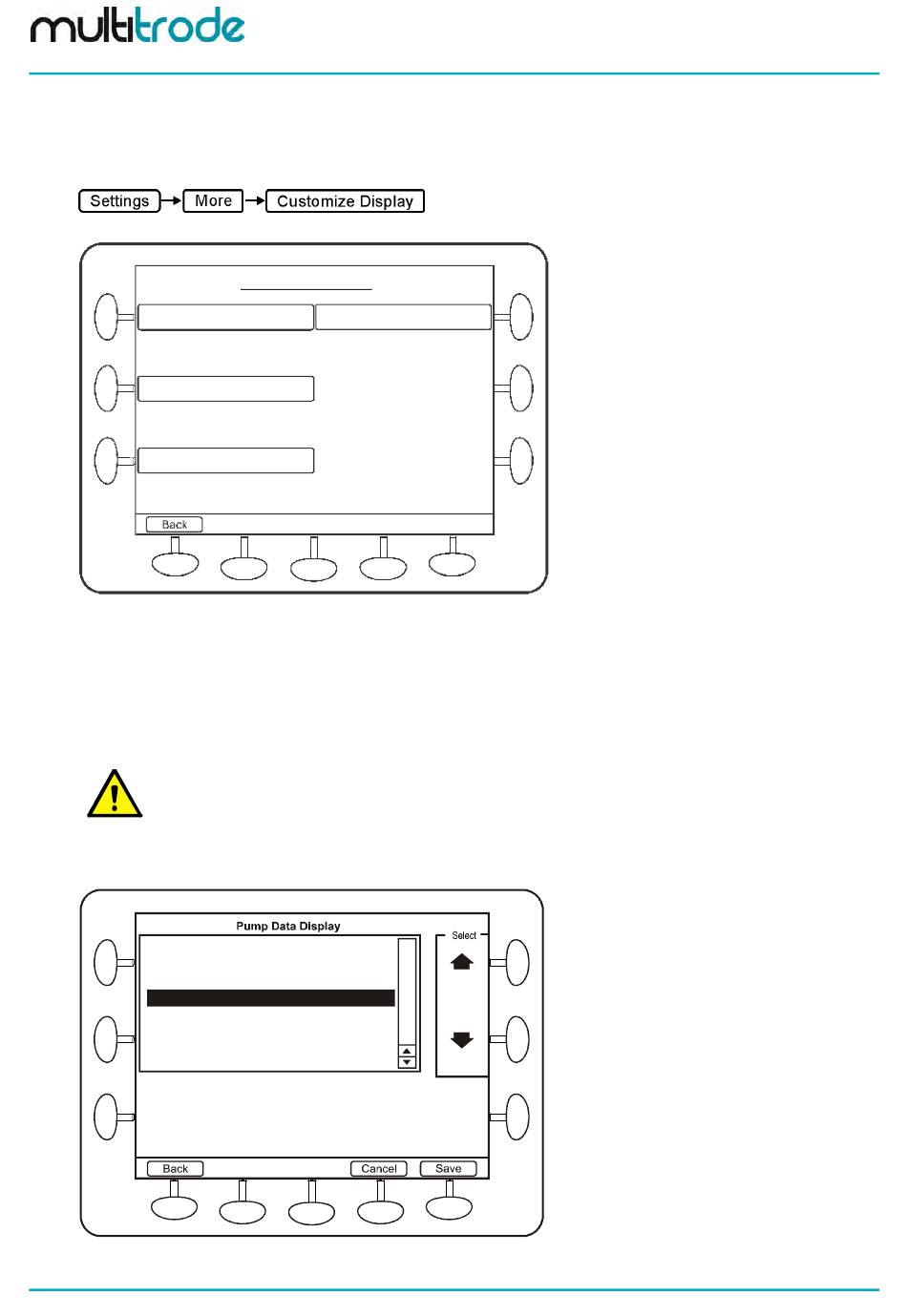

Figure 147 - Customize Display Screen

26.1 Naming Pumps

One or more pumps can be given a custom name, which is reflected through the Faults, History and Info
screens, (except the Set Points screen). If you want to rename pumps and pump faults, be sure to rename
the pump first. The most common naming conventions for the pump are Lead/Lag and Duty/Standby. The
new pump names are shown in the main display, pump set point screen and in the pump delay screen.
NOTE:
Some advanced settings screens do not contain the customized names.
26.2 Pump Data Display
This allows a number of different values to be shown at the bottom of each pump section.
Default Display
Three Phase Currents
Last Minutes Run
Flow Rate
VFD Speed
Total Hours Run
Total Starts
Starts This Hour
1-2 Pump Example:
Flow: 15.3 L/sec
3-4 Pump Example:
Flow: 15.3 L/sec
Figure 148 – Choosing a new value to display
Page 182 of 201
MultiSmart Installation & Operation Manual
Customize Display
Invert Display
Toggle the display from blue on white
to white on blue.
