MultiSmart Installation & Operation Manual
255.255.255.0 as the New Netmask and add the target IP address in the New Target with the last part of it
as zero. For example if the target IP address is 192.168.3.54 enter the New Target as 192.168.3.0. Press
Add to update the routing table and restart the MultiSmart.
If an existing routing table needs to be deleted, scroll down to highlight the routing entry and press Delete. A
restart is again required for this change to come into effect.

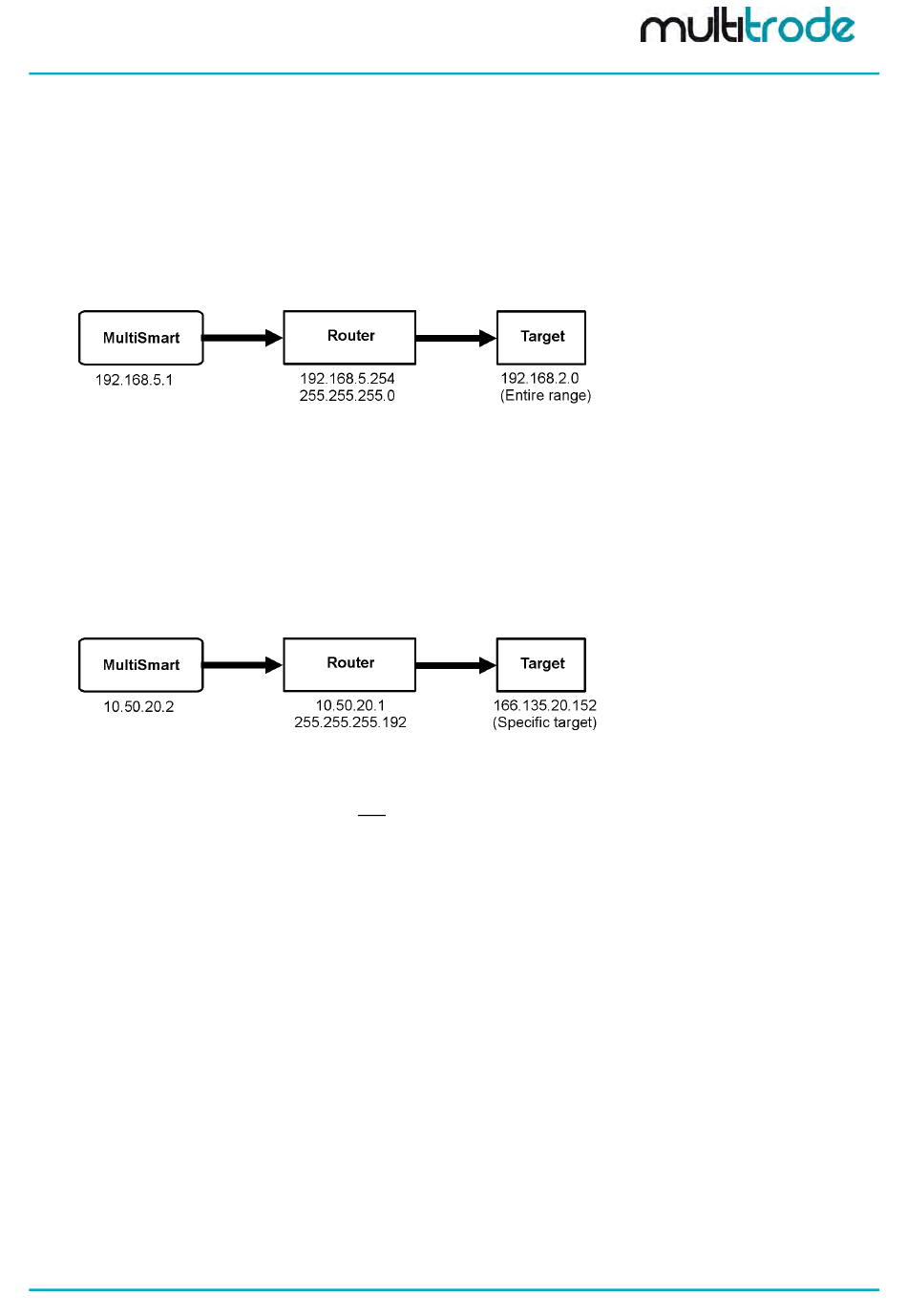

Example 1: Targeting a Private Subnet
You are using a cellular router with an IP address of 192.168.5.254 and a subnet mask of 255.255.255.0 and
the MultiSmart is using an IP address of 192.168.5.1. The target is an entire subnet of 192.168.2.0.
Enter into the MultiSmart IP Routing Table:
New Gateway: 192.168.5.254
•
New Netmask: 255.255.255.0
•
New Target: 192.168.2.0
•
Example 2: Targeting a Specific IP Address
You are connected to a router with an IP address of 10.50.20.1 with a subnet of 255.255.255.192 and your
target is a specific computer on the internet with an IP address of 166.135.20.152. The MultiSmart has an IP
address of 10.50.20.2.
Enter into the MultiSmart IP Routing Table:
New Gateway: 10.50.20.1
•
New Netmask: 255.255.255.255
•
New Target: 166.135.20.152
•
MultiSmart_IO_Manual_A4_v2-22_R15.doc
Page 163 of 201
