22.2.1.3 Add DNP Master Slave
A slave profile for the master is created by default when a DNP Master is created. When more than one
slave is to be configured under that master select this option. This feature requires a reboot of the
MultiSmart. If multiple masters are configured the wizard will prompt; under which master the new slave
profile needs to be created.
22.2.1.4 DNP Slave
This menu gives access to viewing and editing of the points list configurations of all the DNP Slaves present.
To switch between the subsequent slaves, if more than one slave is present, press Next Slave or Prev
Slave appearing at the bottom of the LCD screen. The screen title in that menu shows the information about
the currently selected slave. All binary inputs, binary outputs, analog inputs, analog outputs, counters, frozen
counters and strings can be viewed under this menu. The properties of the points can be edited as well as
new points can be added in their respective categories by accessing the corresponding sub-sections.

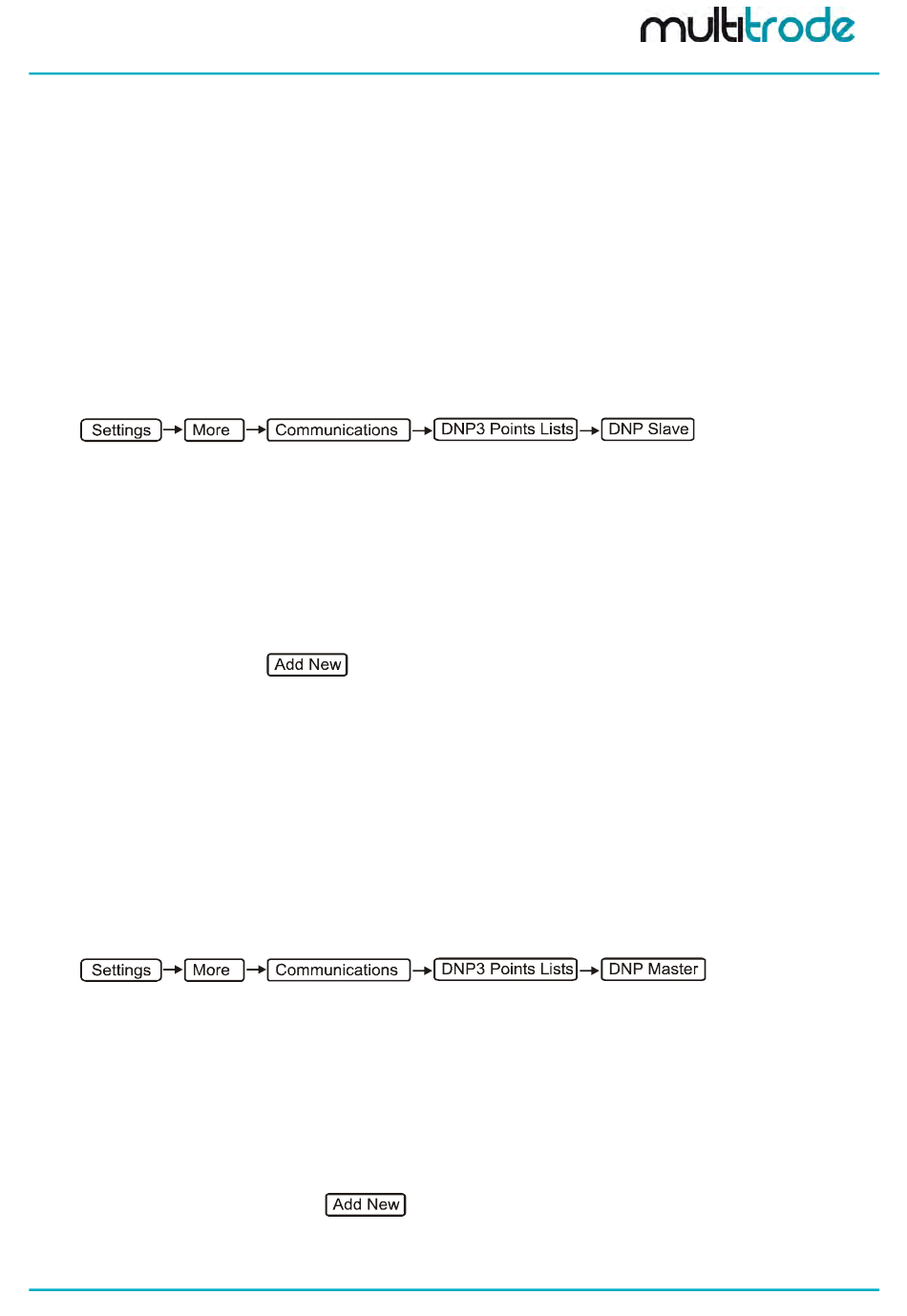

To add a new point browse to the corresponding section as shown below and select Add New.
Select the appropriate slave settings from the list below:
Binary Inputs
•
Binary Outputs
•
Analog Inputs
•
• Analog Outputs
Counters
•
Frozen Counters
•
To add a new point, click
You may have to select the appropriate slave using "Next Slave" or "Previous Slave" buttons which are
visible if more then one slave is configured.
22.2.1.5 DNP Master
This menu gives access to viewing and editing of the slave profiles of all the DNP slaves configured under all
the DNP masters created in the MultiSmart unit. To switch between the different slave profiles, if there are
more than one present, press Next Slave or Prev Slave appearing at the bottom of the LCD screen. The
screen title in that menu shows the information about the currently selected master slave pair. Similar to the
DNP Slave menu, all binary inputs, binary outputs, analog inputs, analog outputs, counters, frozen counters
and strings can be viewed under this menu. The properties of the points can be edited as well as new points
can be added in their respective categories by accessing the corresponding sub sections.
To add a new point browse to the corresponding section as shown below and select Add New.
Select the appropriate slave settings from the list below:
Binary Inputs
•
Binary Outputs
•
Analog Inputs
•
Analog Outputs
•
Counters
•
Frozen Counters
•
To add a new point browse, click
You may have to select the appropriate slave using "Next Slave" or "Previous Slave" buttons which are
visible if more then one slave is configured under the same master or if multiple masters are present.
