5.2 LED Indicators

5.2.1 Power
The Power LED is at the bottom left hand corner of the display and indicates that the DC supply is connected
and turned on.
5.2.2 Faults
The fault LED is above the power LED. It flashes once a second when a fault is detected. This gives the
operator a quick indication of whether a fault is present without having to access the LCD screen.

5.3 Buttons

5.3.1 Home/Help Button
The Home/Help button has two positions:
Pressing the Home icon returns the user to the main status screen.
•
Pressing the Help icon displays online help for the currently displayed screen.
•
5.3.2 Contrast Button
The contrast button is used to adjust the LCD screen's contrast. Press "+" or "–" as required to optimise the
display for the light conditions.
5.3.3 Display Buttons
Eleven buttons are located around the edge of the LCD display. These are used to access menu items and
other data on the display. For any screen, the display indicates what each button is used for.
5.3.4 Numerical Keypad
A numerical keypad is located at the right of the interface. This is used to enter alpha-numeric characters
during configuration.

5.4 Using the Interface

5.4.1 Main Status Screen
Pressing the Home button turns on the LCD backlight and also returns the MultiSmart display to the main
status screen. The following screen displays the current status of all pumps connected to the MultiSmart.
–

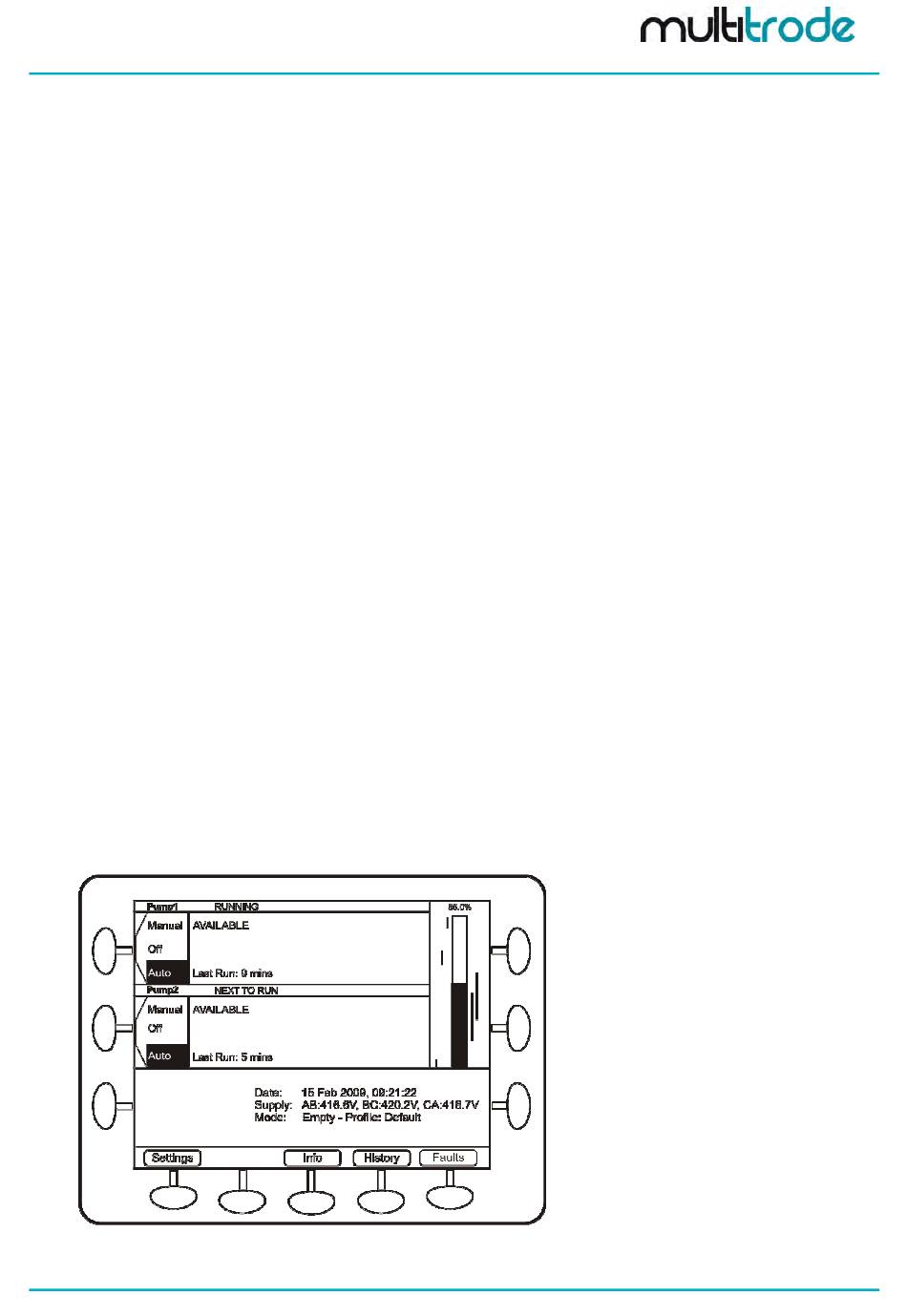

Figure 2 Main Status Screen
