MultiSmart Installation & Operation Manual
22.2.2.4 Modbus Slave
This menu gives access to viewing and editing of the points list configurations of all the Modbus Slaves
present. To switch between the subsequent slaves, if more than one slave is present, press Next Slave or
Prev Slave appearing at the bottom of the LCD screen. The screen title in that menu shows the information
about the currently selected slave. All discrete inputs, coils, input registers and holding registers can be
viewed under this menu. The properties of the points can be edited as well as new points can be added in
their respective categories by accessing the corresponding sub sections.

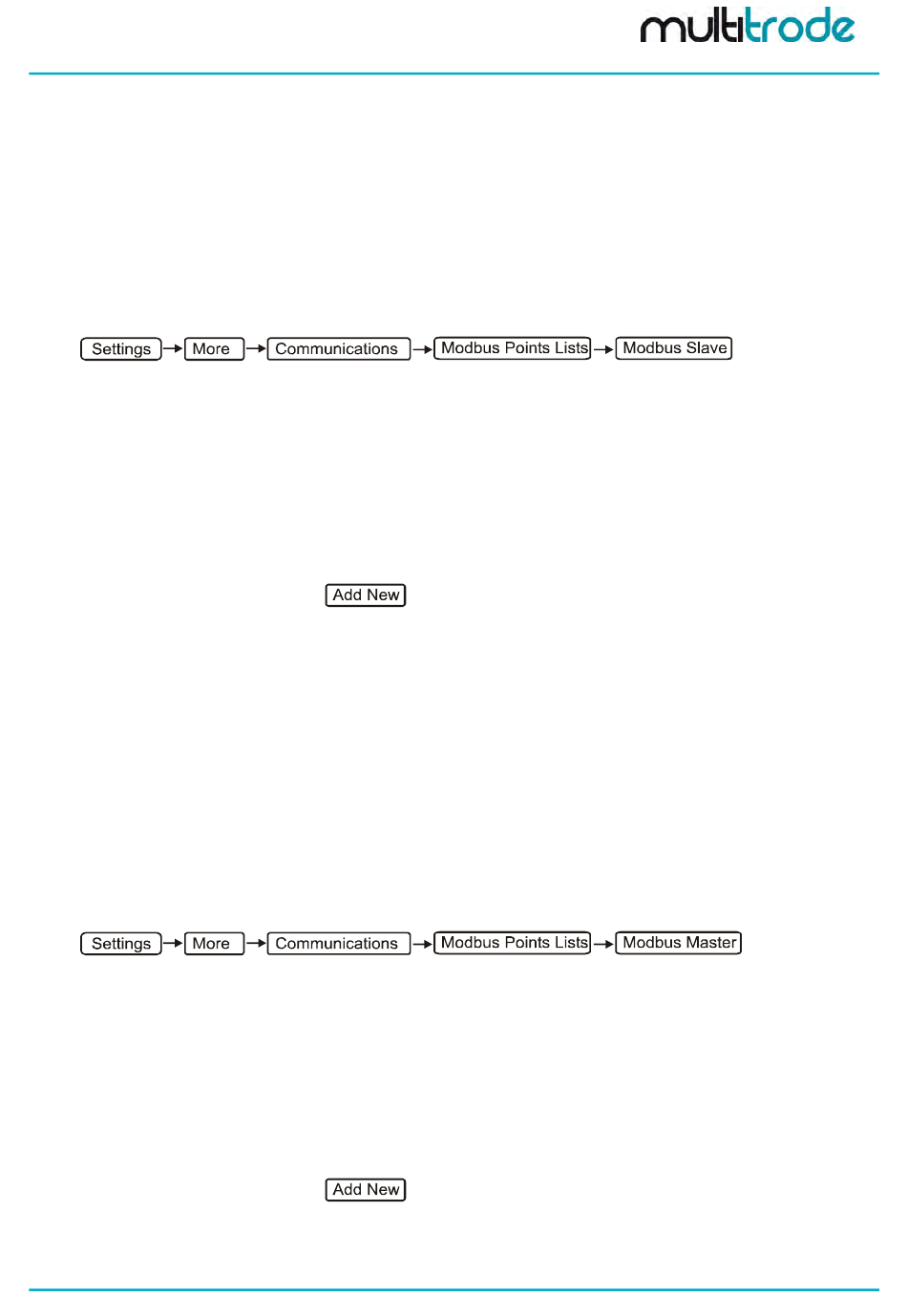

To add a new point browse to the corresponding section as shown below and select Add New.
Select the appropriate slave settings from the list below:
Binary Inputs
•
Binary Outputs
•
Analog Inputs
•
Analog Outputs
•
Counters
•
• Frozen Counters
To add a new point browse, click
You may have to select the appropriate slave using "Next Slave" or "Previous Slave" buttons which are
visible if more then one slave is configured.
22.2.2.5 Modbus Master
This menu gives access to viewing and editing of the slave profiles of all the Modbus slaves configured
under all the Modbus masters created in the MultiSmart unit. To switch between the different slave profiles, if
there are more than one present, press Next Slave or Prev Slave appearing at the bottom of the LCD
screen. The screen title in that menu shows the information about the currently selected master slave pair.
Similar to the Modbus Slave menu, all discrete inputs, coils, input registers and holding registers can be
viewed under this menu. The properties of the points can be edited as well as new points can be added in
their respective categories by accessing the corresponding sub sections.
To add a new point browse to the corresponding section as shown below and select Add New.
Select the appropriate slave settings from the list below:
Binary Inputs
•
Binary Outputs
•
Analog Inputs
•
• Analog Outputs
Counters
•
Frozen Counters
•
To add a new point browse, click
You may have to select the appropriate slave using "Next Slave" or "Previous Slave" buttons which are
visible if more then one slave is configured under the same master or if multiple masters are present.
