MultiSmart Installation & Operation Manual
5.4.1.5
Softkeys
The buttons at the bottom of the screen are used to access the following areas:
Settings - used to configure the MultiSmart pump station manager
•
Info: displays full station and pump information
•
History: shows alarms and event history
•
Faults: shows fault specific details
•
NOTE:
When the unit is controlling 5 or more pumps, a Next Pumps button also appears on the bottom line
allowing access to pumps 5 and 6, etc. This button is also present when the unit is configured for more
than 1 well.
5.4.2
Faults / History
When a fault occurs a large FAULT box is displayed at the bottom of the screen. At the same time, the fault
status changes to Fault Present.

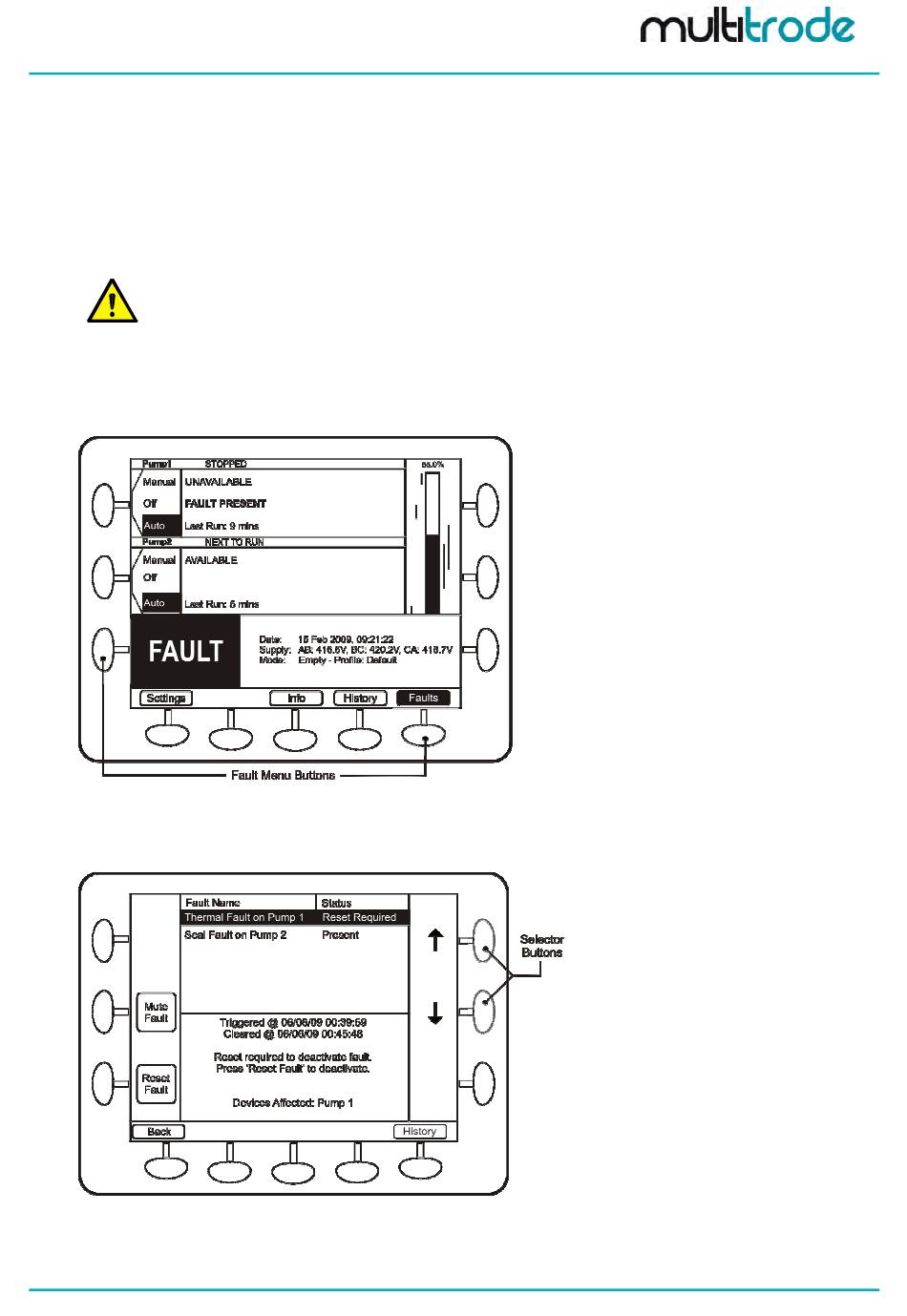

Figure 4 – Fault Indication
The left Fault Softkey button flashes when a fault is present. Pushing this button (or the right Faults button)
displays a screen which details the fault. (Appendix A contains a description of all faults displayed).
Figure 5 – Fault Reset Screen
Use the selector buttons to select each fault in turn.
