MultiTrode MultiSmart Installation & Operation Manual page 20

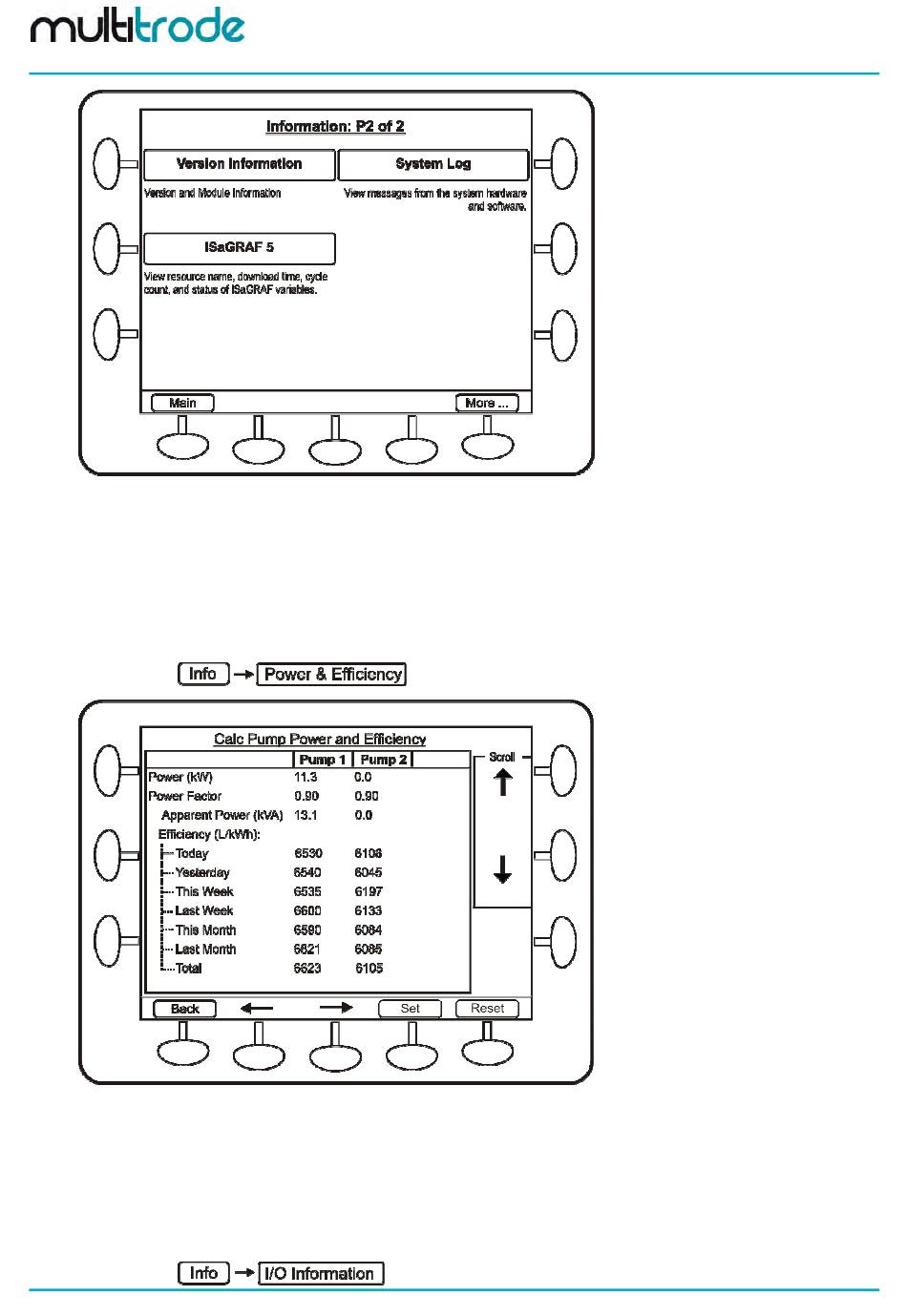

Figure 8 – Information Screen 2 of 2
5.4.3.1 Power & Efficiency
This screen shows the value of power factor and efficiency of the pumps. Efficiency, energy and apparent
energy of the present day, yesterday, this week, last week, this month, last month and their total are
displayed on this screen.
Navigate to:
Figure 9 – Power Efficiency Screen
5.4.3.2 I/O Information
Information about the System, DC Voltage, Top Board, Bottom Board and Probe can be seen in this screen.
The I/O information screens are especially useful in troubleshooting input/output related issues. Insulation
Resistance test (IRT) can be accessed from within the I/O information screen, (the test is only performed
when the pumps are not running).
Navigate to:
Page 20 of 201
MultiSmart Installation & Operation Manual
MultiSmart_IO_Manual_A4_v2-22_R15.doc
