Individual Pump Parameters - MultiTrode MultiSmart Installation & Operation Manual

MultiSmart Installation & Operation Manual
Name
VFD Enabled?
Compensation (%)
Fixed Start Speed
Enabled?
Fixed Start Speed
Fixed Start Speed
Duration
Fixed Manual
Speed Enabled?
Fixed Manual
Speed
Well Clean Out
Speed
Table 29 – VFD Parameters

23.2 Individual Pump Parameters

To set the start, minimum and maximum pump speeds:
Press the Pumps button displayed in the VFD Settings screen (See Figure above)
•
Set the speed at which to start the pump
•
Set a minimum speed (the minimum speed setting of the actual VFD unit may override this value)
•
Set a level at which the pump will be running at 100% speed
•
Repeat for each pump and press the Save button when finished
•

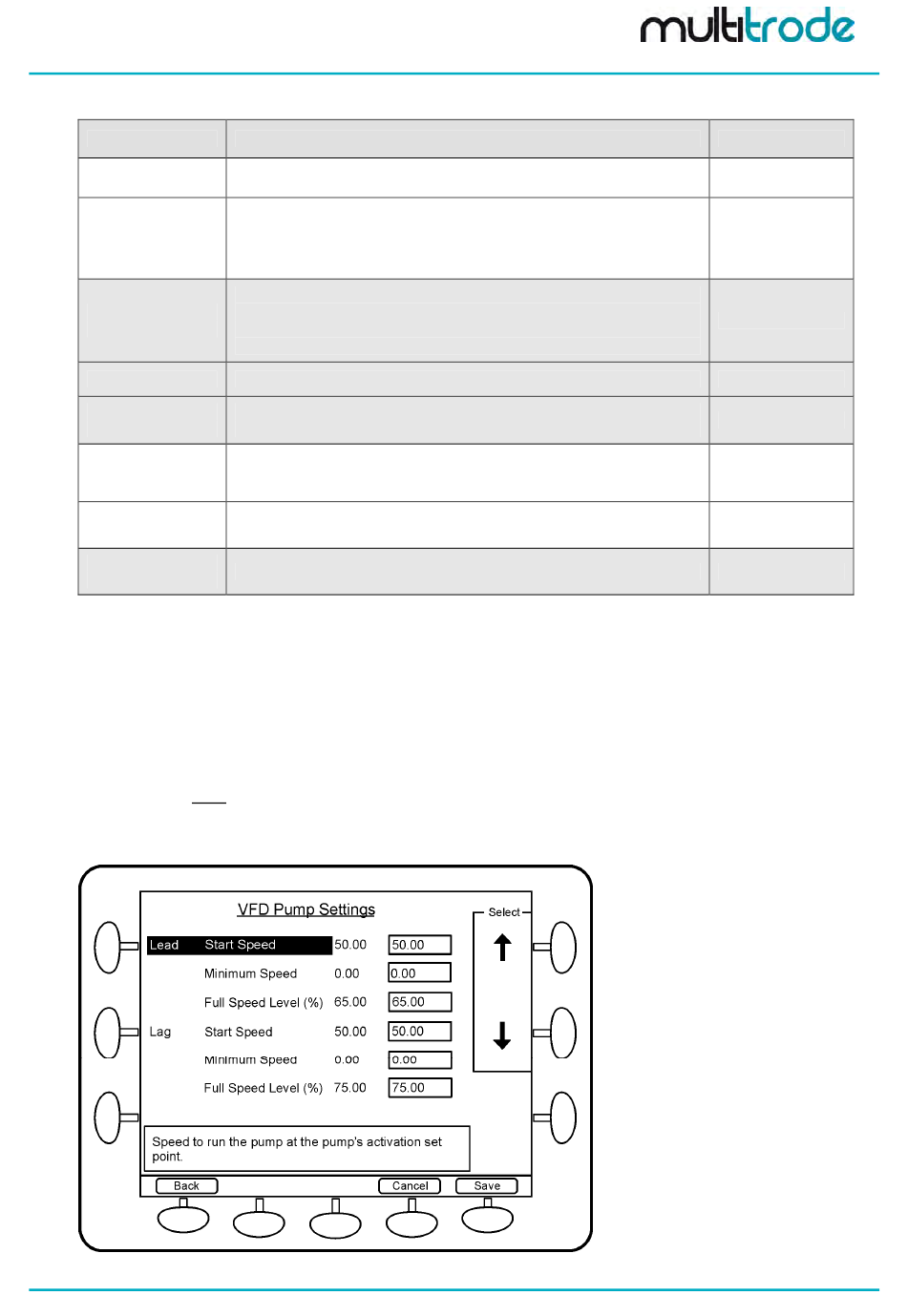

Figure 142 – VFD Pump Speeds Settings Screen
MultiSmart_IO_Manual_A4_v2-22_R15.doc
Description
Activates the VFD functionality. This must be checked before VFD will
work.
The compensation factor is used to adjust how the algorithm averages
out the speeds of multiple pumps.
This might be necessary to account for losses in the system (e.g.
losses in the discharge pipe work).
This feature allows the pump to be started at a fixed speed for a
specified time period.
This is normally done to clear the pipes by running the pumps at a
higher speed for a short time.
Sets the starting speed when "Fixed Start Speed" is enabled.
Sets the length of time a pump is started at a fixed speed when "Fixed
Start Speed" is enabled.
Allows the pump speed to be fixed when running in manual/hand
mode. (A common situation would be where operators want the pump
to operate at full speed when used in manual mode).
Sets the pump speed when "Fixed Manual Speed" is enabled.
The fixed speed to run when "Well Clean Out" is active.
Range/Value
Enabled/Disabled
-50 to 50
True/False
0 -100%
seconds
True/False
0 -100%
0 - 100%
Page 165 of 201
