From this screen the operator can reset the fault if the fault condition is no longer present. If the fault is still
present, the Reset Fault button does not appear.
A Mute Fault button appears for faults that can be muted. It is used to stop sirens or flashing lights that may
have been activated by the fault.
By default, digital output 4 (DO4) is linked to the high-level alarm and can be muted. The digital output can
be configured for Pulsed or Steady operation and is typically connected to an external warning light or alarm.
The Mute button is only available for other faults, if the user has configured them to be mutable.
•
Pressing the History button displays the entire fault & event history log (up to 50 000 records).
•
Pressing the Main button returns the operator to the main status screen.
•

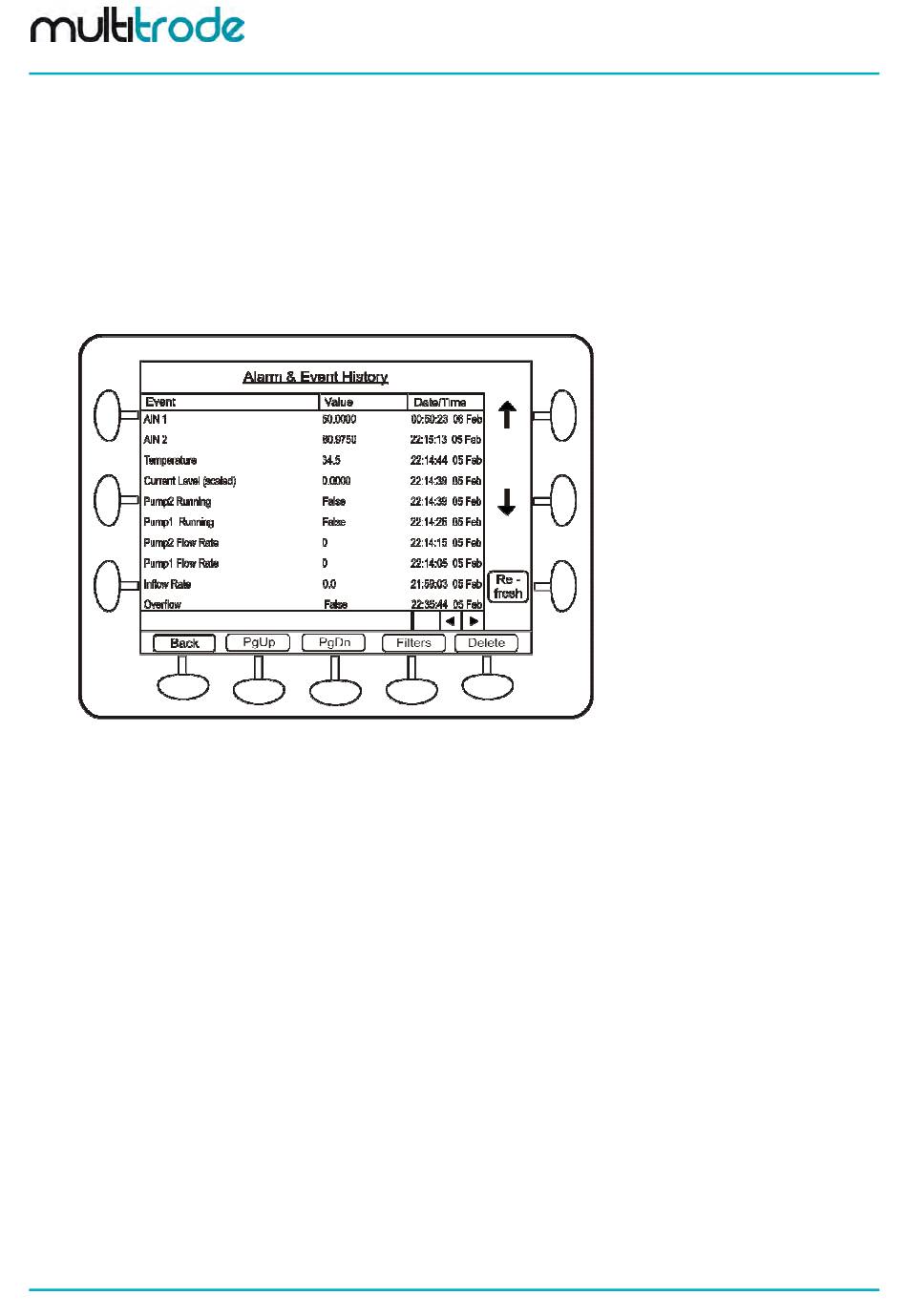

Figure 6 – Fault History Screen
