MultiSmart Installation & Operation Manual
30.3 Back Up Current Configuration
Navigate to:
A backup of the configuration can be saved to internal memory or a compact flash card.

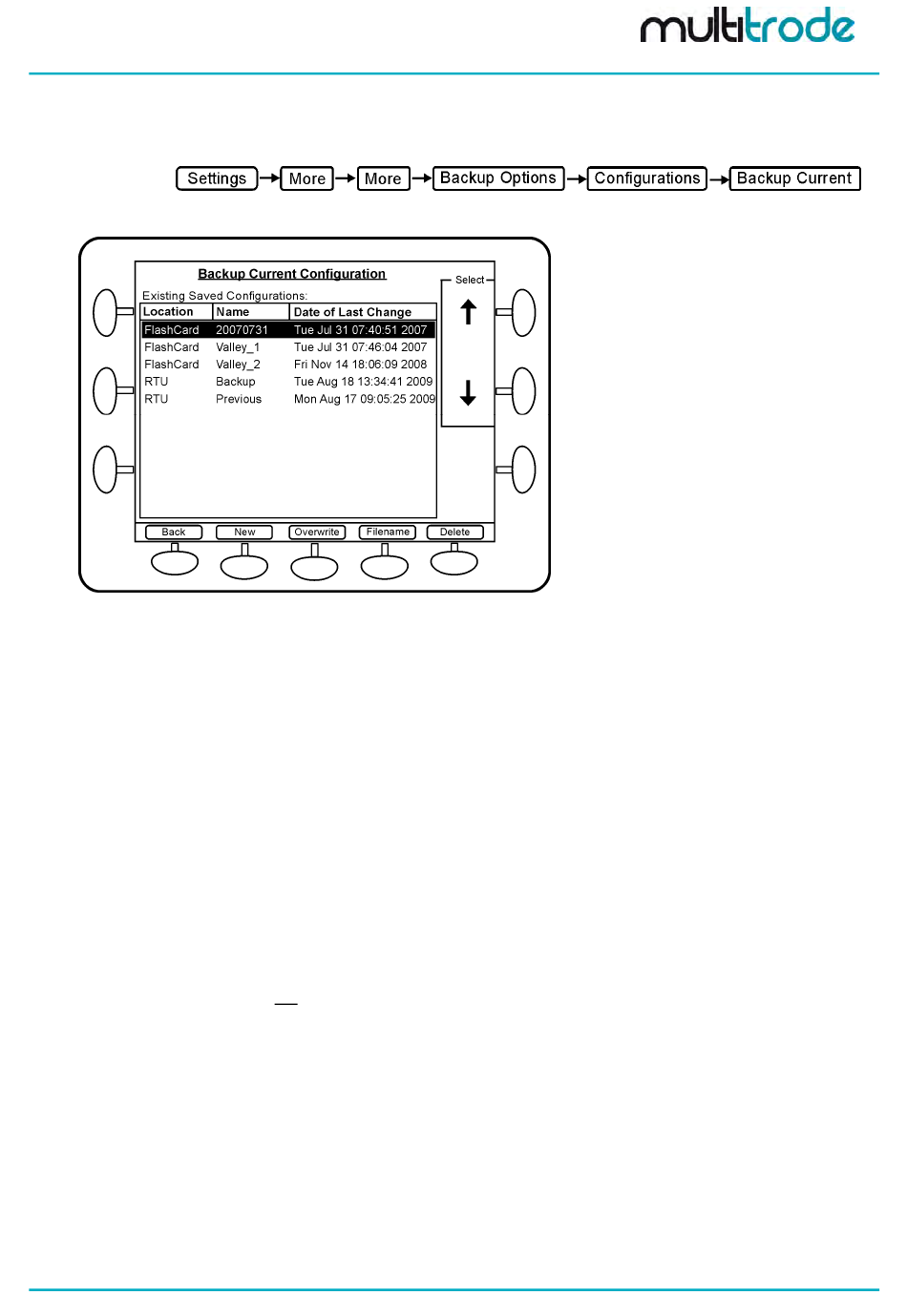

Figure 154 – Backing up a current configuration
30.3.1
Save to External Memory (CF Card)
A backup of the configuration can be saved to a Compact Flash card. Either a new backup file can be
created or an existing one over-written. To create a new backup,
Press New – the default filename is the current date (in the format YYYYMMDD).
•
Modify the filename if necessary using the keypad – the filename can be up 8 characters long.
•
Press Save
•
A flashcard can store multiple backups. (A configuration requires about 1.5 to 3 MB).
30.3.2
Save to Backup Configuration
If no CF card is present the configuration can be saved to internal memory.
Select the file Backup ( stored on the "RTU")
•
Press Overwrite and answer Yes.
•
The Backup filename can not be renamed or new filename added to internal memory.
MultiSmart_IO_Manual_A4_v2-22_R15.doc
Page 189 of 201
