MultiSmart Installation & Operation Manual

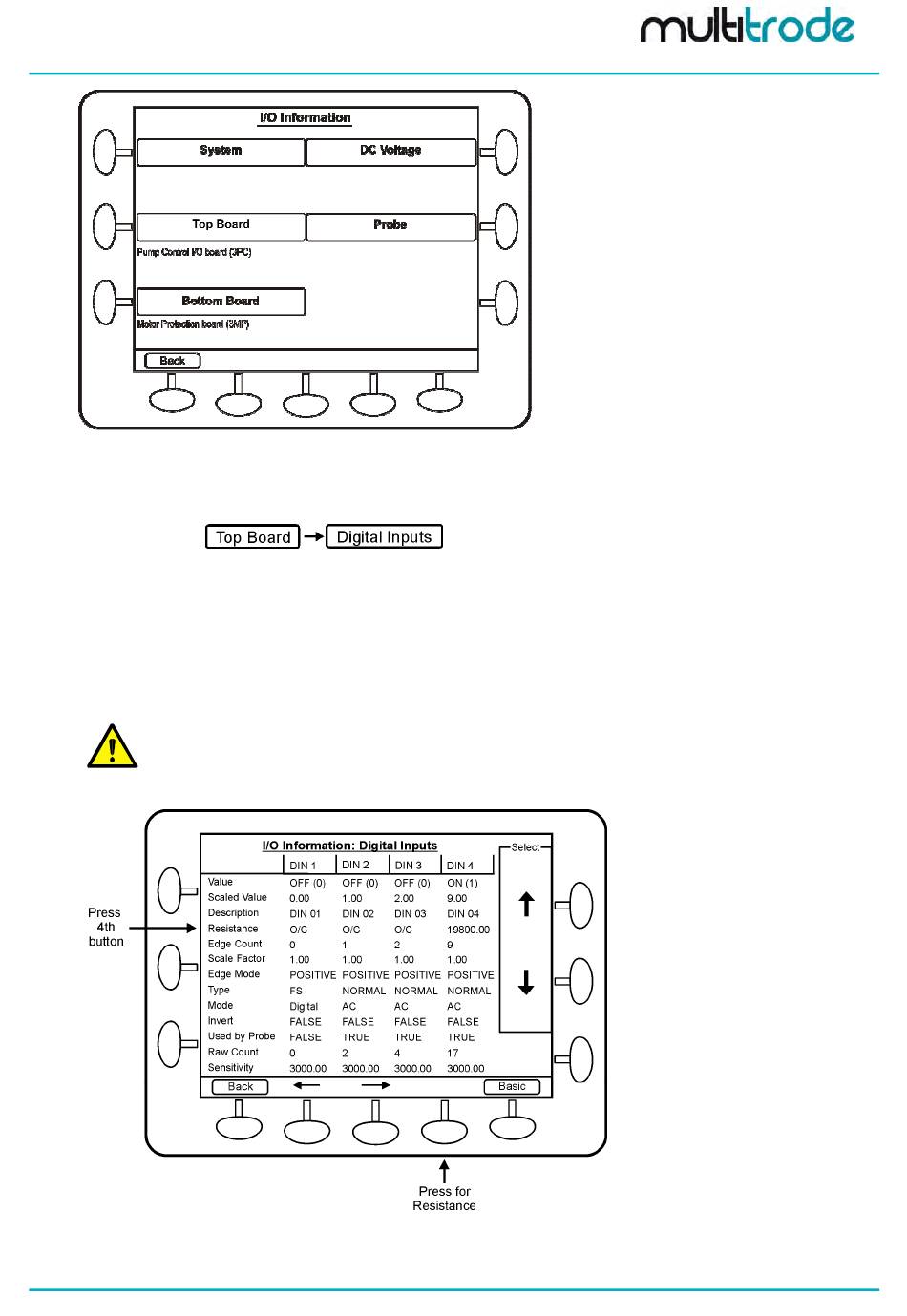

Figure 10 – I/O Information Screen
To determine the configuration and current state of the digital inputs, navigate to the I/O Information: Digital
Inputs screen.
The current state of a digital input is displayed on the top line; "Value".
Press the Advanced button to display configuration information on the digital inputs, for example Mode and
Sensitivity.
The resistance as measured by the input can also be displayed. Press the 4
display the resistance (not labelled on screen). When the measured resistance is below the Sensitivity then
the input turns on.
NOTE:
The Sensitivity used by the probe (default of 22k ohms, Section 14.8.4) is not the same Sensitivity found
in the digital inputs advanced options.
Figure 11 – Digital Inputs Information Screen
MultiSmart_IO_Manual_A4_v2-22_R15.doc
th
button on the button row to
Page 21 of 201
