4.10.10 Purge Station

Perform the following procedure to check function of the purge station.
NOTE The following procedure assumes the dispensing system is on and FmXP is running.
1. Locate the bit labeled
vacuum ON (Figure 4-21).
2. Place your finger on the purge boot opening and try to lift the purge cup cover.
See Figure 4-22.
3. If the purge station is working properly, it should be difficult to lift the purge cup cover.
4. Toggle the bit until it reads
4-32
and toggle the bit until it reads
PURGE_CUP

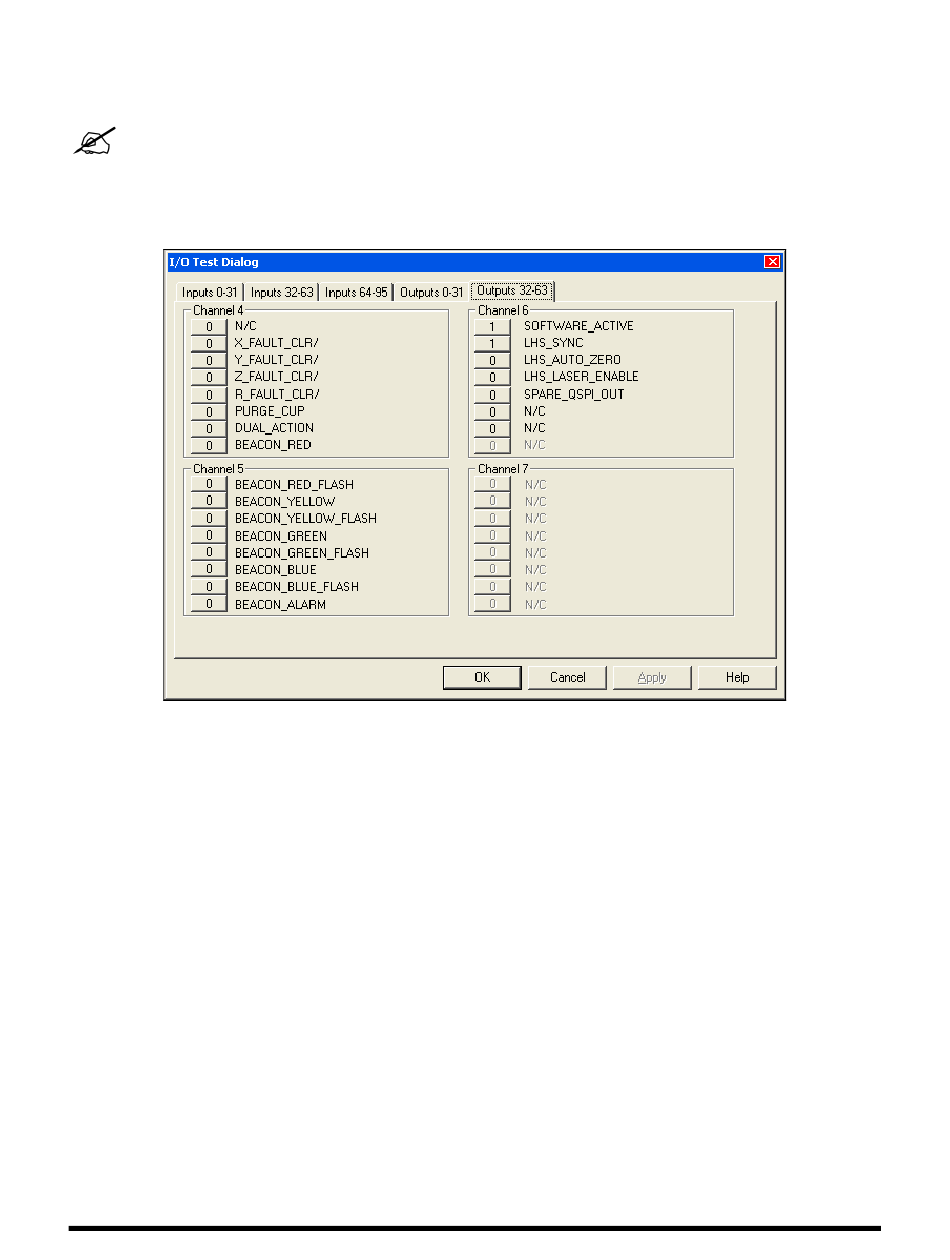

Figure 4-21 Dispenser I/O Test (Outputs 32-63)
( ) to turn the purge vacuum OFF.
OFF 0
( ) to turn the purge
ON 1
Power-Up and Testing
