3. Click on
Teach Safe Z Height.
The Teach Safe Z Height Window (Figure 6-9) opens.
4. Move the dispensing head over a workpiece fiducial.
5. Raise or lower the dispensing head until it reaches a Safe Z-Height.
6. Click on
Teach
The Safe Z-Height value will be recorded in the value textbox.
7. Click on
Done
WARNING!
Operation

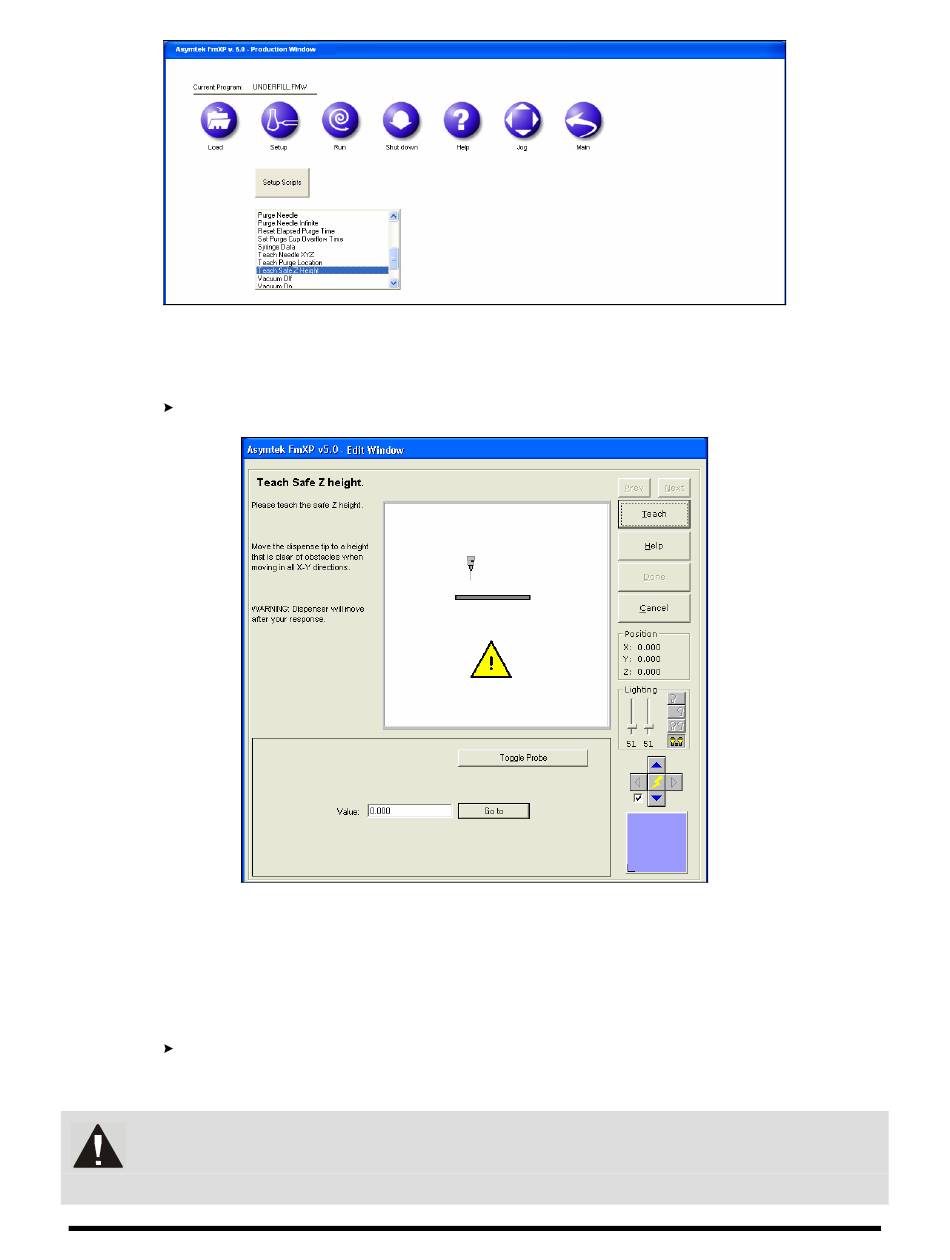

Figure 6-8 Production Window - Teaching Safe Z Height
Figure 6-9 Teaching Safe Z Height
.
.
Safe Z-Height should never be taught lower than the tallest component on the
unit to be dispensed on.
6-9
