1.10.2 Service Station

1
Item Name
1 Dispense Tile
2 Tactile Needle Sensor
3 Purge Station
4 Scale
Introduction
2
3
The Dispense Tile is a ceramic tile dispensed upon during system
offset routines.
The Tactile Needle Sensor measures needle/nozzle position in the
Z-axis.
The Purge Station consists of a small reservoir that contains a
disposable plastic cup and is attached to a vacuum generator. Air
flowing through the purge boot into the cup removes excess fluid on
the dispensing valve needle/nozzle.
The scale measures the weight of dispensed fluid and sends the
information to the Fluidmove software for mass flow calibration.

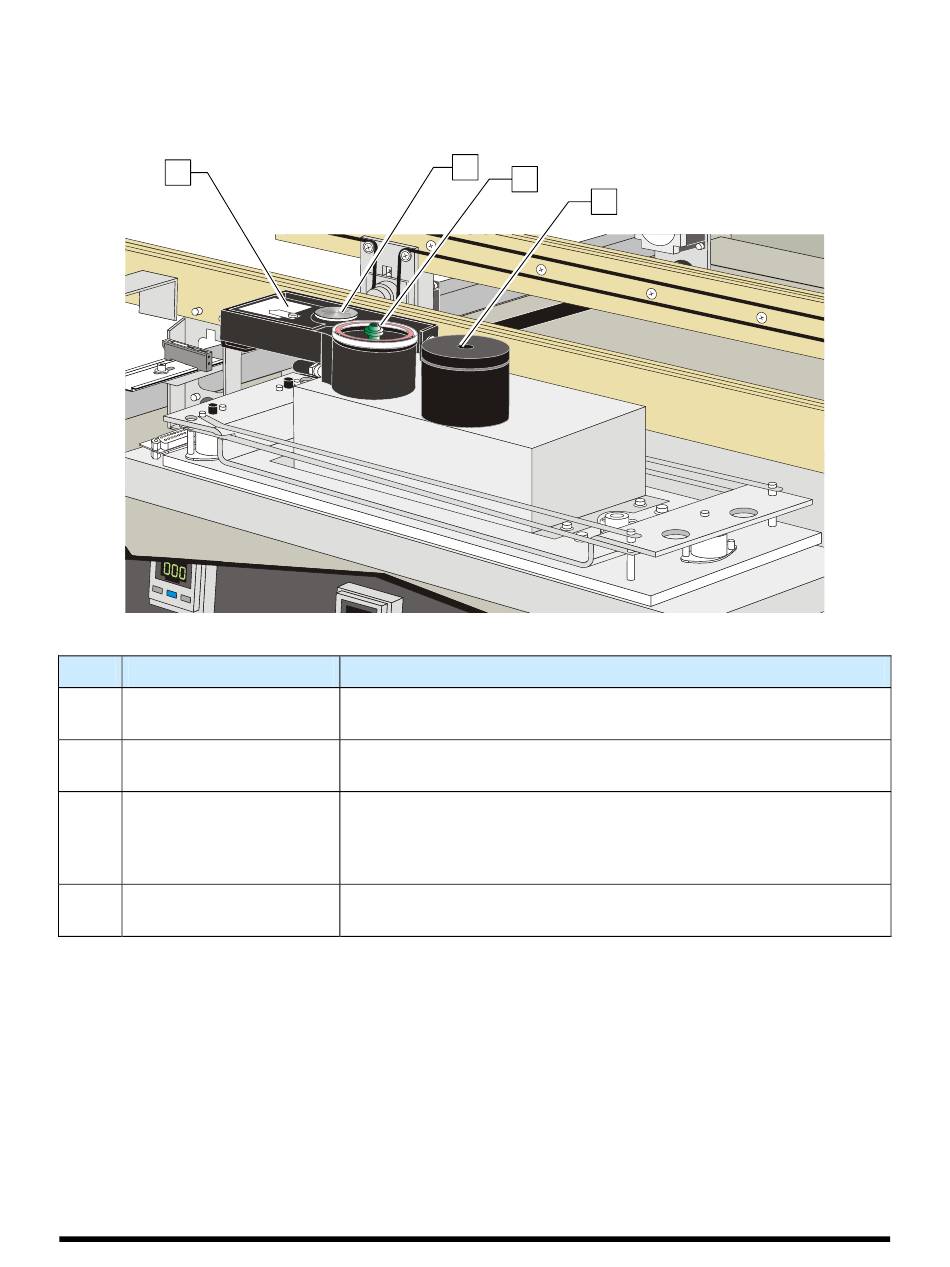

Figure 1-4 Service Station

4
