1.10.6 Rear View Open

2
3
Item Name
1 Upper E-Pan
2 Lower E-Pan
3 Rear Cabinet
Rear Panel
4
Connections
1-16
The Upper E-Pan houses the Dispense Head Controller, Z-Axis Servo
Amp, and Applicator Pneumatics.
The Lower E-Pan houses the Mainboard, X-Y Axis Servo Amps, Main Air
Pneumatic Valves, and Conveyor Pneumatic Valves.
The Rear Cabinet houses the Power Manager and the Conveyor/Heater
Module(s). See 1.10.7 Rear Cabinet.
See 1.10.8 Rear Panel

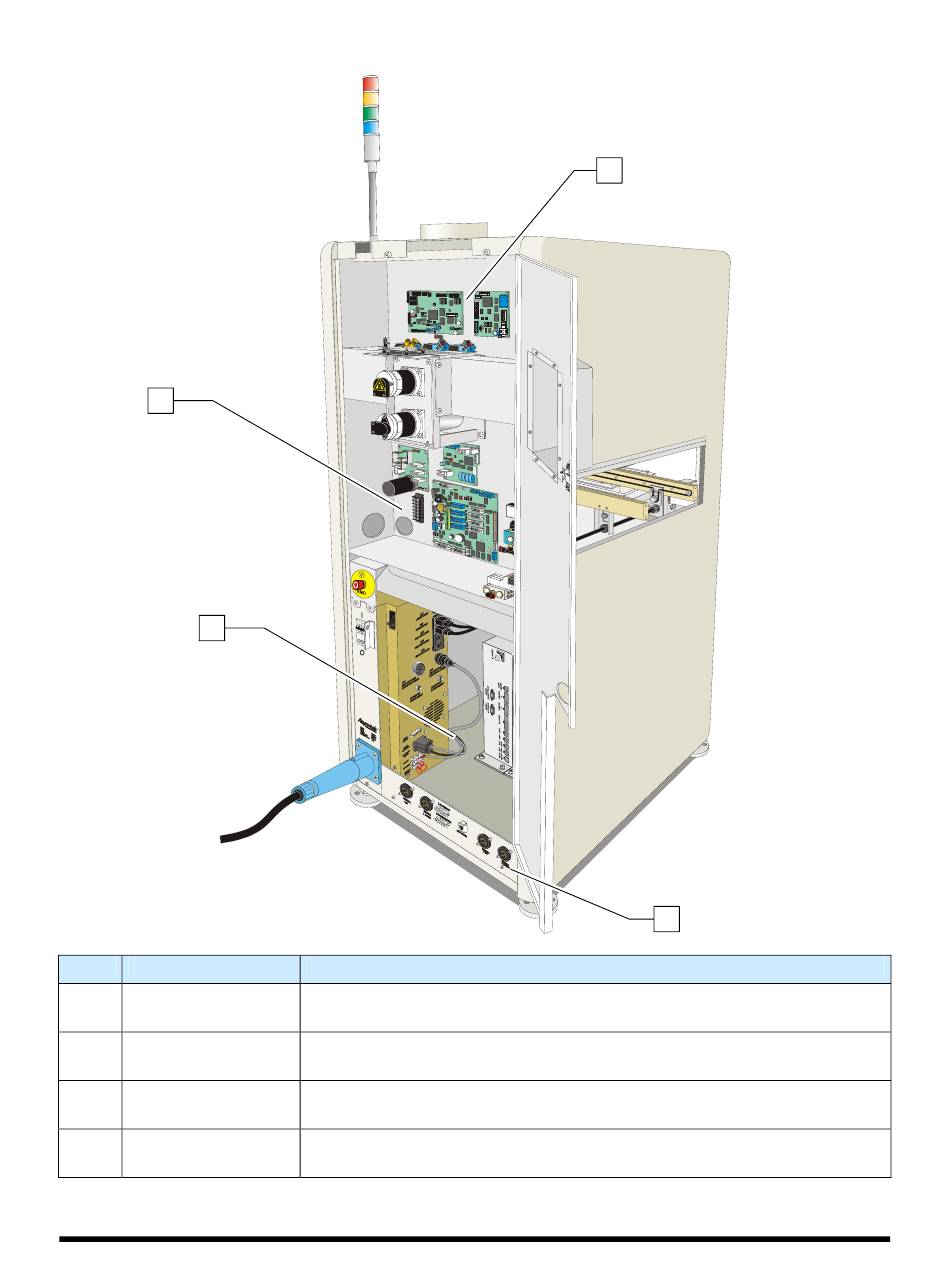

Figure 1-8 Rear View Open

1
4
Description
Connections.
