9.10.4 Panel-Mounted Fuses

These glass fuses are located on the front panel of the Conveyor/Heater module. The fuses protect the
module from damage caused by power surges from the heater tooling (
CAUTION!
To remove and replace panel-mounted fuses:
CAUTION!
1. Perform a service shutdown as specified in
2. With your fingers, gently push in and turn the fuse holder counterclockwise until the head of
the fuse holder pops out enough to allow you to grasp it (
3. Pull the fuse holder out of its socket.
4. Remove and discard the damaged fuse.
5. Verify that you will be installing the correct replacement fuse and then insert the new fuse
into the fuse holder.
6. With your fingers, simultaneously push and twist the fuse holder clockwise into the socket
until it locks into place.
7. Power on the dispensing system as described in
Parts Replacement
Always replace fuses with fuses of identical rating and size. Failure to do so may
not protect components from damage.

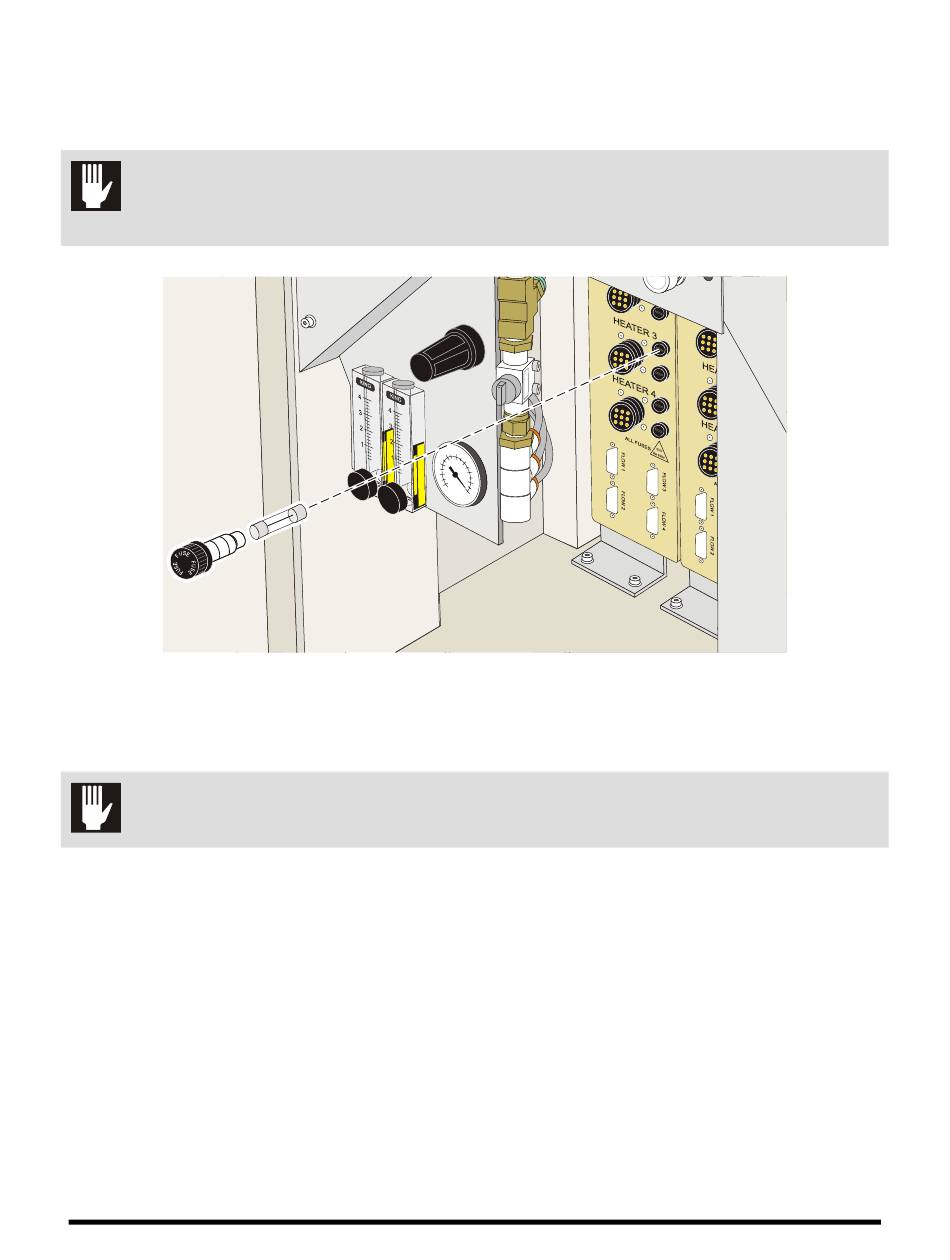

Figure 9-7 Replacing a Panel-mounted Fuse
This procedure should be performed by a trained service technician only.
F igure 9-7).
2 6 H
2.11 Service Shutdown.
F igure 9-7).
2 7 H
4.5 Powering On the Dispensing System.
9-13
