3.13 Anchoring the Dispensing System

To prevent movement that could cause injury to personnel and damage to the dispensing system and
facility, each dispensing system leveler (foot) should be anchored to the floor with two bolts (Figure
3-20). The anchor joint (the point between each anchor bolt and the floor) must be able to withstand at
least 220 lbs (100 kg) of pullout force. For additional information, see
Item
1
Bolt
2
Leveler (Foot)
NOTE You may also use the shipping brackets to anchor the dispensing system.
WARNING!
3-16
1

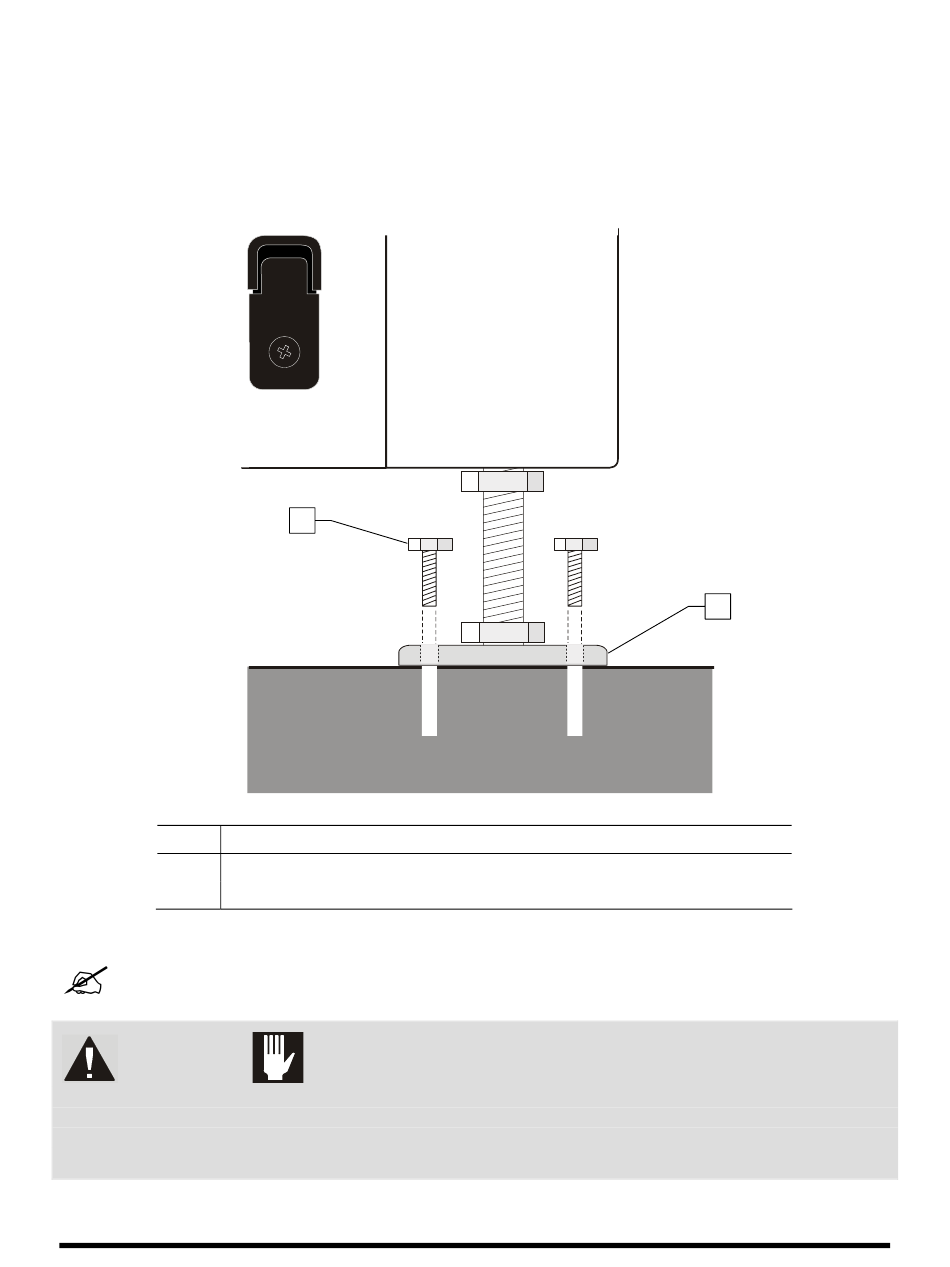

Figure 3-20 Anchoring the Dispensing System

CAUTION!
The S-920 Dispensing System is designed to be used as an inline system. When
using the dispensing system for batch operations, make sure it is configured with
the optional Conveyor Closeout Kit (P/N 7214478) to prevent personal injury and
equipment/workpiece damage.
10.4 Stability
Description
Analysis.
2
