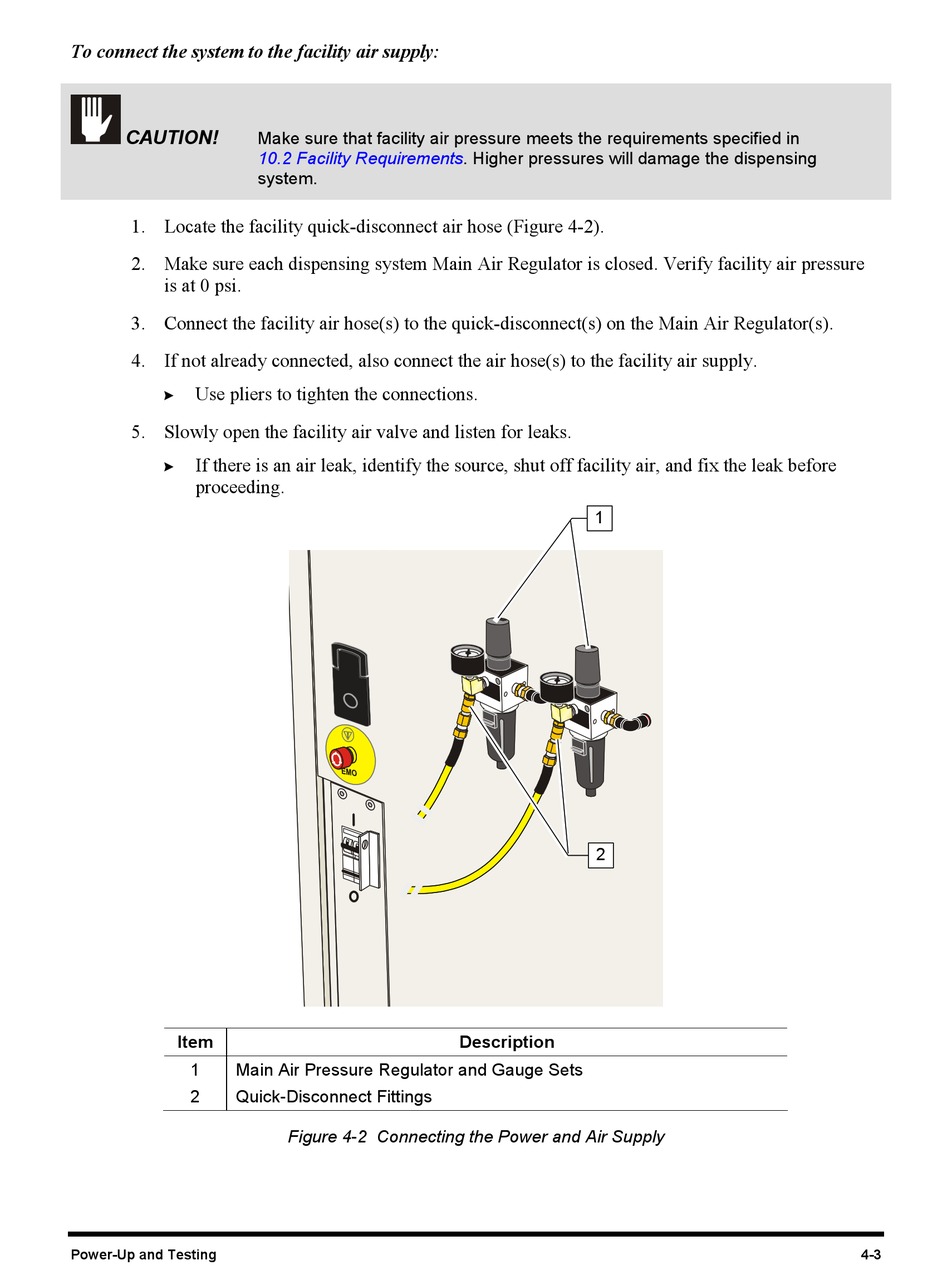

Figure 4-2 Connecting The Power And Air Supply - Nordson Asymtek Spectrum Series Installation, Operation & Maintenance Manual

To connect the system to the facility air supply:
CAUTION!
1. Locate the facility quick-disconnect air hose (Figure 4-2).
2. Make sure each dispensing system Main Air Regulator is closed. Verify facility air pressure
is at 0 psi.
3. Connect the facility air hose(s) to the quick-disconnect(s) on the Main Air Regulator(s).
4. If not already connected, also connect the air hose(s) to the facility air supply.
Use pliers to tighten the connections.
5. Slowly open the facility air valve and listen for leaks.
If there is an air leak, identify the source, shut off facility air, and fix the leak before
proceeding.
Item
1 Main Air Pressure Regulator and Gauge Sets
2 Quick-Disconnect Fittings
Power-Up and Testing
Make sure that facility air pressure meets the requirements specified in
10.2 Facility Requirements. Higher pressures will damage the dispensing
system.

Figure 4-2 Connecting the Power and Air Supply

1
2
Description
4-3
