7.9

Tensioning the Cables

To tension the cables:
1. Perform a service shutdown as specified in
2. Remove the X- and Y-axis covers. See
3. Loosen the X-Axis and two (2) Y-axis tensioner screws.
4. Move the Z-head in a circle around the dispensing area approximately 5 times.
5. Stop in the middle.
6. Retighten the tensioner screws.

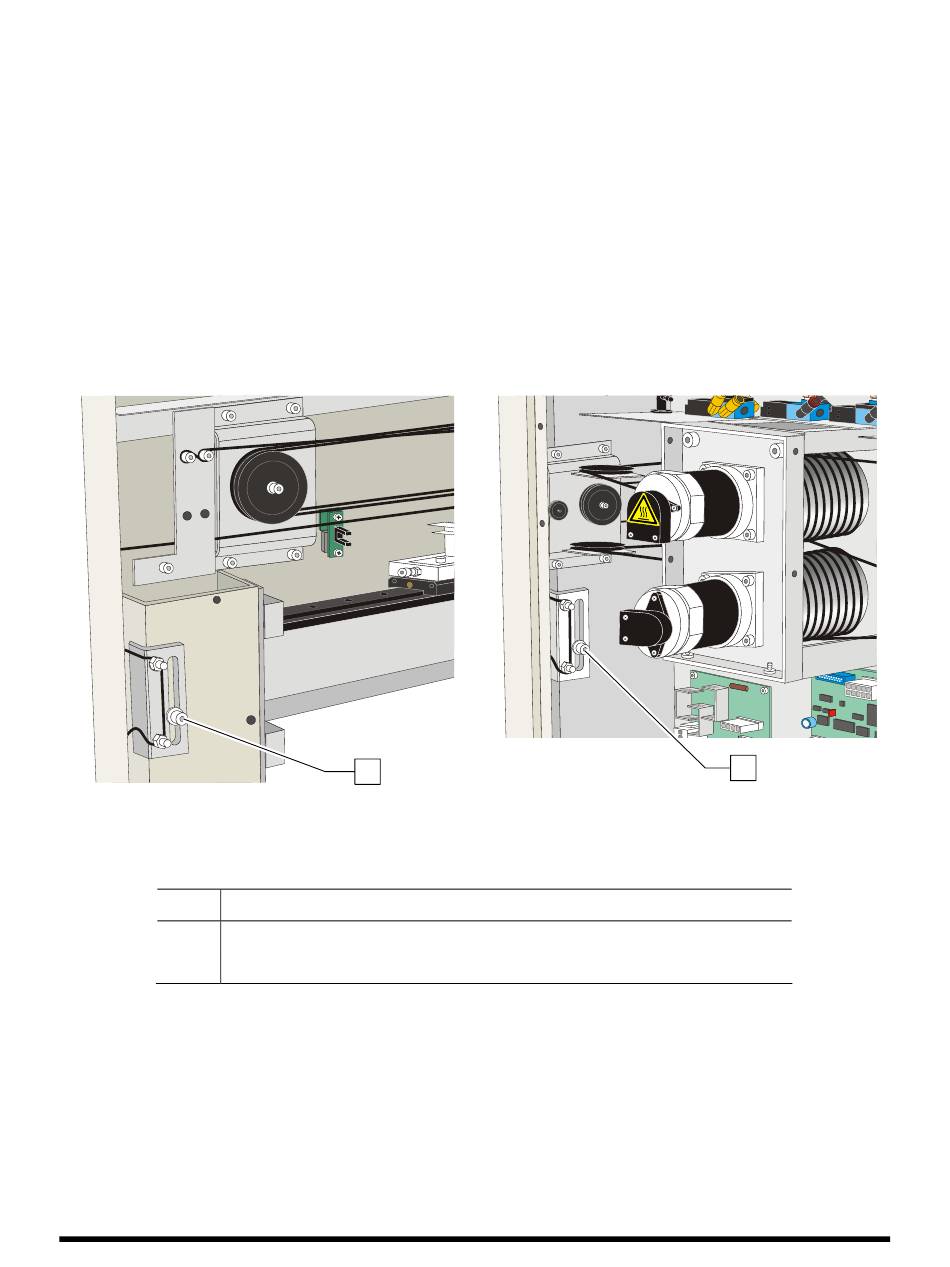

Figure 7-9A Tensioning the X-Axis Cables
Item
1 X-Axis Tensioner Screw
2 Y-Axis Tensioner Screw
Maintenance
2.11 Service
7.7 Removing the Axis
1
Description
Figure 7-9 Tensioning the Cables
Shutdown.
Covers.
Figure 7-9B Tensioning the Y-Axis Cables
2
7-13
