The Dispenser I/O Test dialog box (Figure 4-20) opens.
4. Locate the bit labeled
5. Lightly press on the Tactile Needle Sensor.
The
TACTILE_SENSOR
pressed and return to
Power-Up and Testing

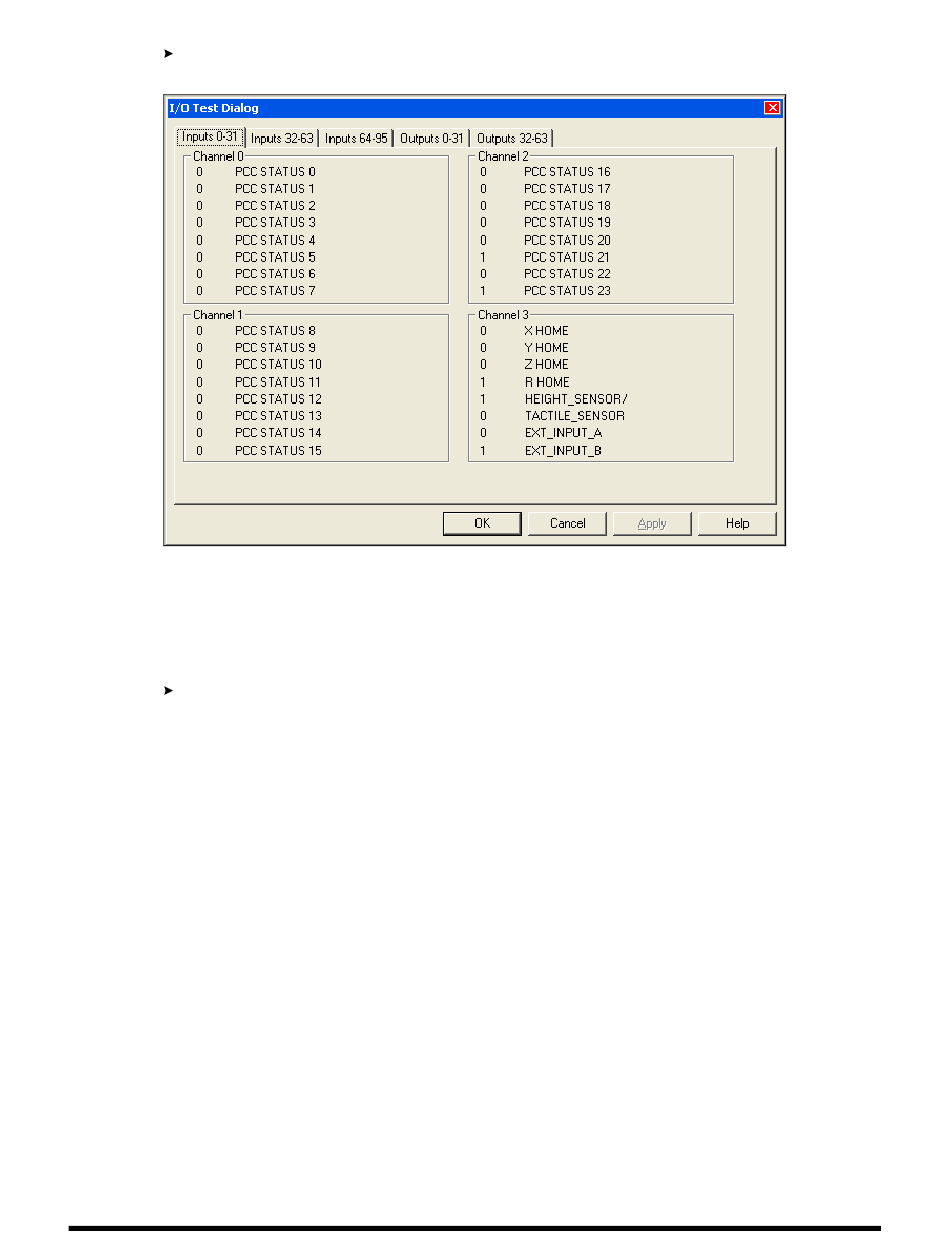

Figure 4-20 Dispenser I/O (Inputs 0-31)
TACTILE_SENSOR.
bit should toggle to
(
) when pressure is released.
OFF
0
(
) when the Tactile Needle Sensor is
ON
1
4-31
