6.7

Positioning the Conveyor and Dispensing Head

When necessary, an operator can use Fluidmove Position (Jog) Controls to adjust conveyor rail width,
reposition the workpiece X-axis location on the conveyor, and reposition the dispensing head in the X-,
Y-, and Z-axes. These position controls can be operated using the touchpad to click on-screen buttons, or
by pressing key combinations on the keyboard. Both methods are described below.
NOTE These procedures assume that the dispensing system and computer have been turned on
as specified in
6.7.1

Using the Touchpad

To operate position controls with the touchpad:
1. In the Fluidmove Main Window, click on
The Position Controls dialog box opens. See Figure 6-10.
NOTE The Position Controls can be accessed from the Main Window, the Production Window,
the Run Window, the Programming Window, and the Tools Window. The selected jog
device is indicated in the bottom right-hand corner of all major windows.
2. Click on the
the
Dispenser
NOTE See 6.7.3 Dual Conveyor Systems
Item
1 Y-axis Controls (rear rail forward and backward movement)
2 X-axis Controls (belt left and right movement)
3 Radio Buttons (Conveyor 1 selected)
6-10
4.5 Powering on the Dispensing
radio button to activate the Conveyor 1 position controls or click on
Conveyor 1
radio button to activate the Dispensing Head position controls.
1
2
3

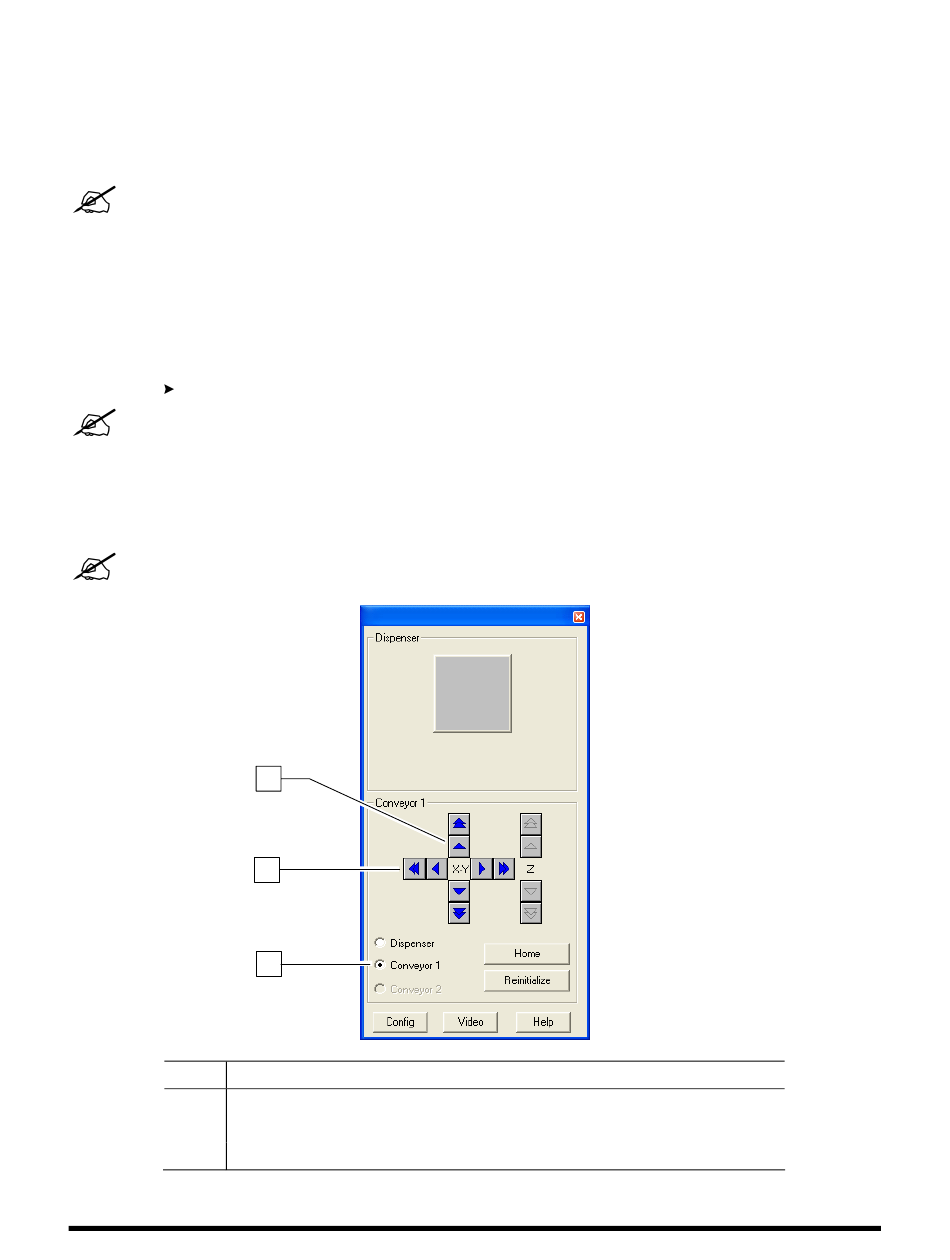

Figure 6-10 Conveyor Position Controls
System.
.
Jog
for systems equipped with dual conveyors.
Description
Operation
