Nordson Asymtek Spectrum Series Installation, Operation & Maintenance Manual page 152

6.9.8.1.1 Dispensing Elements
There are several fundamental dispensing elements and patterns that form the foundation for all
dispensing applications. These include lines, dots, circles, rectangles, area fill, etc. When you select
Dispensing Elements
Window contains the Dispensing Elements toolbar (Figure 6-23). Select the desired Dispensing Element
by clicking on it. You will then be prompted through the remainder of the programming process for the
dispensing element selected.
NOTE Some Dispensing Elements are platform and valve specific and may not be available for
your particular system configuration.
Rectangle
Weight Control
Delta Z Line
Find Substrate
Select Valve
6.9.8.2 Dual Conveyor Programming
Fluidmove programming differs slightly for Dual Lane Dispensing Systems. There is only one program
(workpiece) origin for both conveyors. In addition, all program commands must be placed in a Conveyor
Block. Program commands for both conveyors may be placed directly in the Workpiece pattern. When
placing the commands directly in the Workpiece pattern, there is only one origin and one set of fiducials
for both conveyors. However, for more precise dispensing, you may create separate patterns for Conveyor
1 and Conveyor 2. This allows you to define an origin and fiducials for each pattern in addition to those
defined for the Workpiece pattern. Both methods are explained in the following sections.
NOTE For detailed information about programming, refer to the Fluidmove User Guide or
Online Help.
6-28
from the Program Commands Toolbar, a Teach Window opens. The Teach
Dot
Arc
Area Fill
Line
Height
Coat Dot
Coat Grid

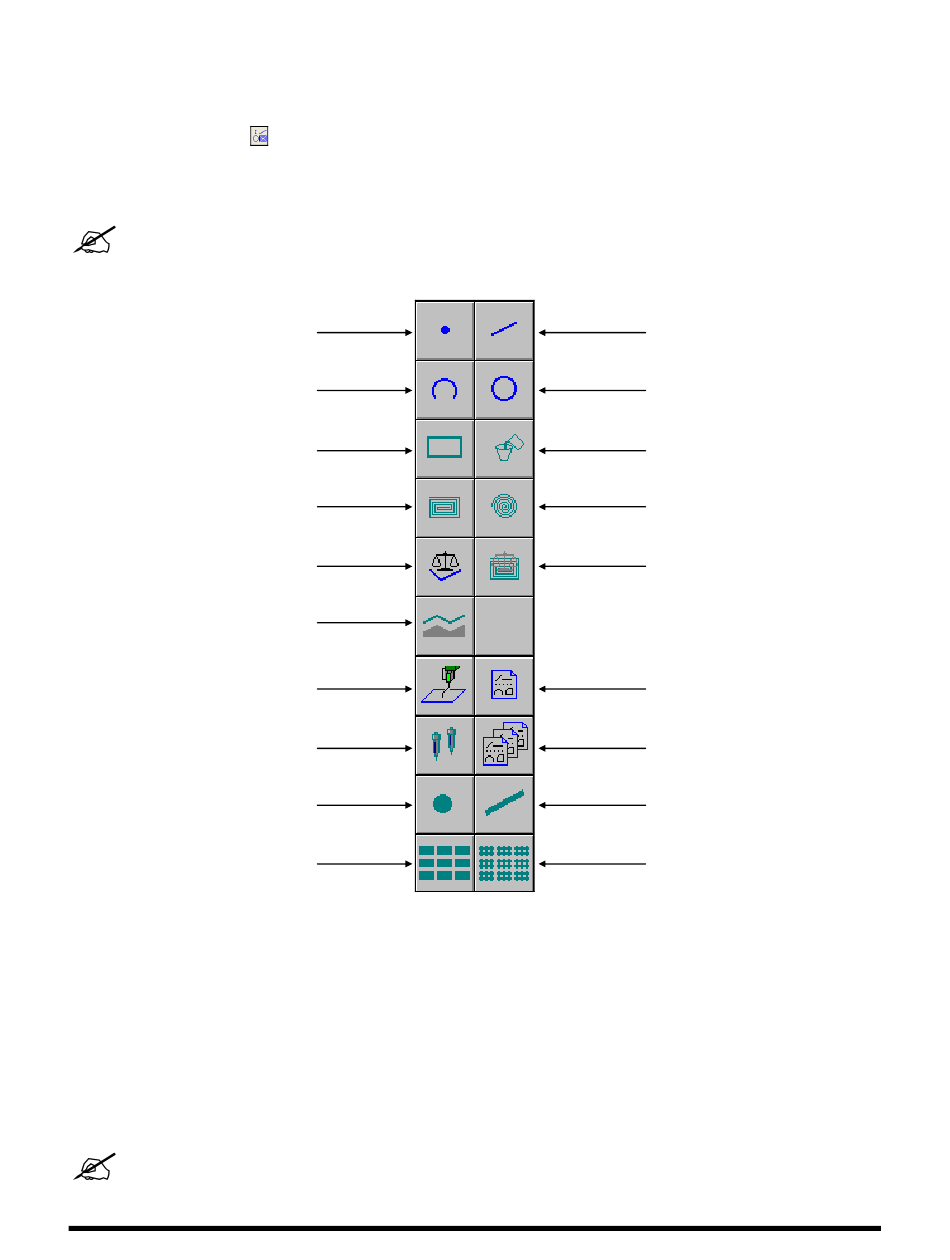

Figure 6-23 Dispensing Elements Toolbar
Line
Circle
Pot
Spiral Fill
Weight Control Fill
Pattern
Multipass
Coat Line
Dot Grid
Operation
