To attach a fluid file:
NOTE The default fluid file is automatically attached to the program when you open the new
program window. To attach a different fluid file, follow the instructions below. The fluid
file is saved with the program. See
1. In the Programming Window, Select
2. Select the new fluid file.
3. Click on
Open
6.9.8

Entering Program Commands

With FmXP there is no syntax to learn. You simply select commands from the Dispensing Commands
Toolbar, teach the appropriate coordinates and click done. FmXP inserts the dispensing commands into
the program sequence for you. By using the dispensing pallet and the host of features from FmXP, simple
or complex programs can be quickly and easily written. Dispense gaps, retract distances, velocities, and
special dispense instructions are accessed from the Edit Menu. Parameters entered for line or dot control
are saved with the fluid file. Consult the Fluidmove User Guide or Online Help for further information.
1. To enter a new program command, position your cursor at the beginning of "Line 1" and
press enter to insert a blank line.
2. Select the desired program command from the Program Commands Toolbar at the right of the
Programming Window and follow the prompts. See
6-26
Program Name
Pattern End
Instruction

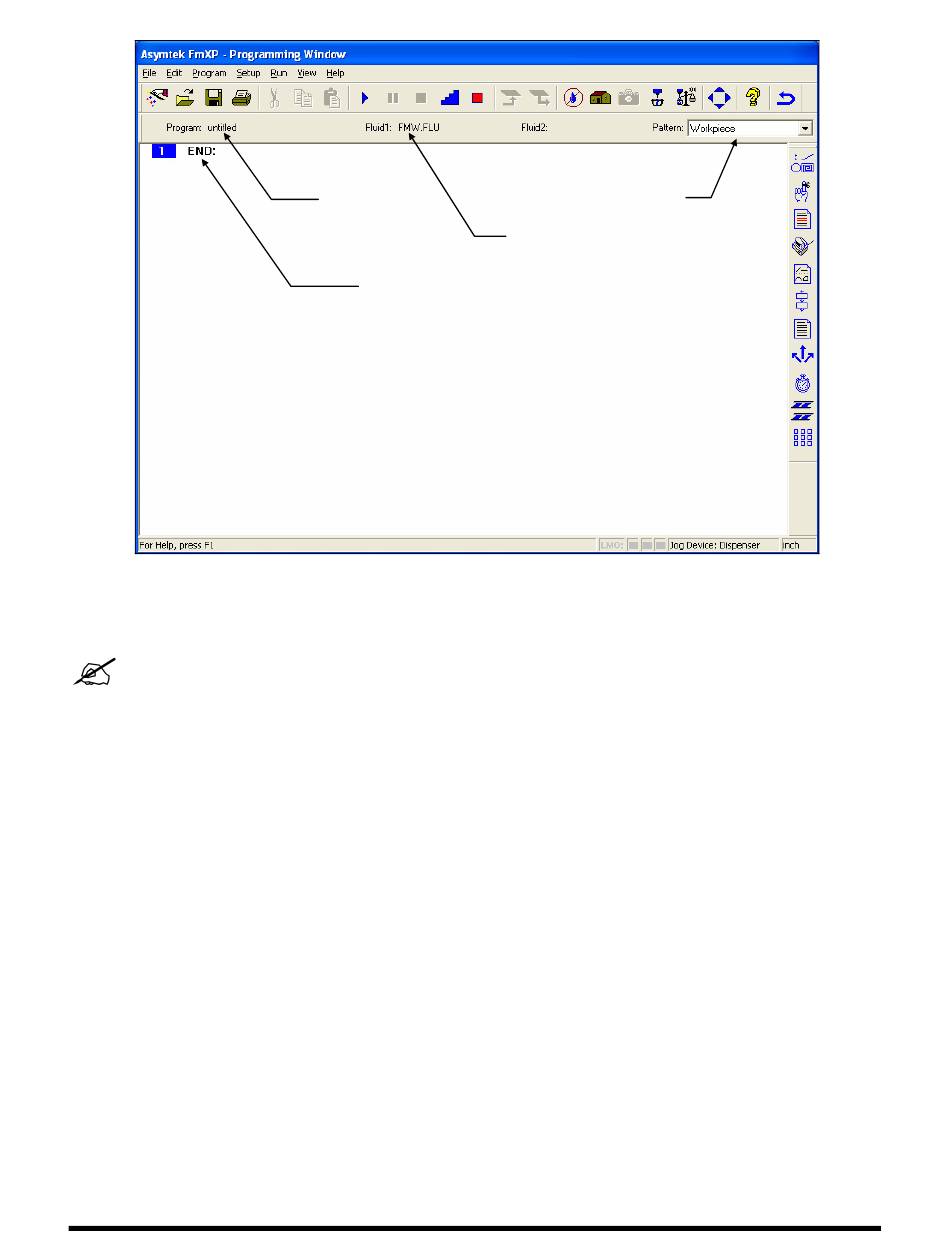

Figure 6-21 Programming Window
File > Fluid Table > Load
.
Pattern Name
Fluid File
6.9.3 Setting up the Fluid
6.9.8.1 Dispensing
Manager.
from the pull-down menu.
Commands.
Operation
