2. Perform a Valve Offsets routine as follows. See Figure 4-25.
a. In the FmXP Main Window, click on .
Configuration
b. Select from the Configuration menu.
Machine Offsets
c. In the dropdown menu, select .
Scripted Valve Offsets

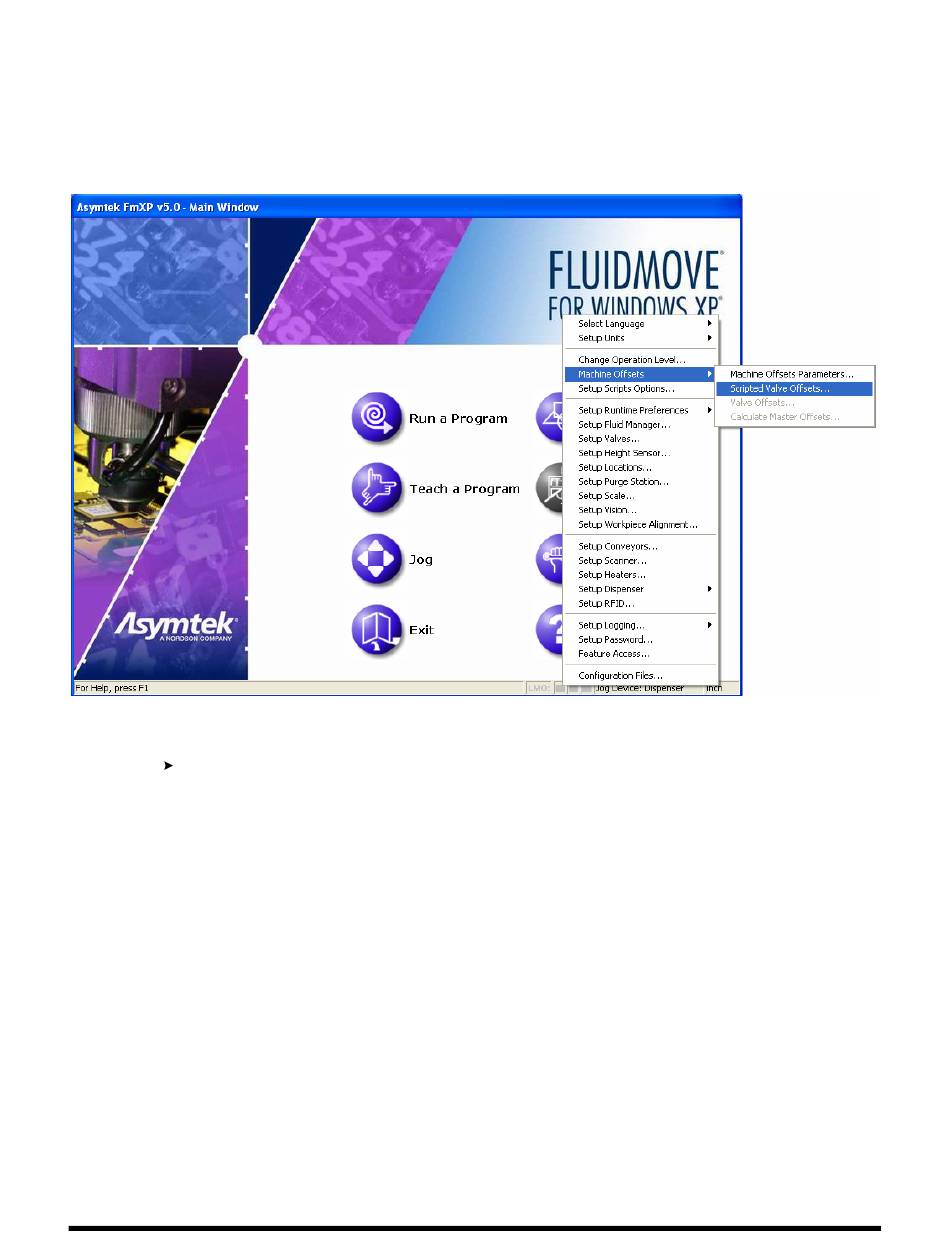

Figure 4-25 Valve Offset Dialog Boxes
The Machine Setup dialog box opens (Figure 4-26).
Power-Up and Testing 4-39
